Description
QM 262F is a two-component, addition-cure silicone elastomer designed for moldmaking applications requiring fast demold and improved flow for detailed reproduction. The low viscosity mixed system allows for easy pouring into complex geometries while maintaining dimensional stability.
The cured material forms a 60 Shore A silicone rubber with strong mechanical properties and resistance to casting resins. It is used for molds in architectural, furniture, and prototype applications where durability and accuracy are required.
Key Product Details
| Property | Value |
|---|---|
| Mix Ratio (by weight) | 10:1 |
| Viscosity (Mixed) | 35,000 cP |
| Work Life @ 25°C | 30 minutes |
| Demold Time | 3–5 hours |
| Cure Type | Addition |
| Hardness | 60 Shore A |
| Tensile Strength | 1,000 psi |
| Elongation | 140% |
| Tear Strength | 90 ppi |
| Linear Shrinkage | < 0.1% |
| Service Temperature | -55°C to 204°C |
Performance in Production
- Pourable viscosity supports filling detailed molds before cure
- 30-minute work life allows time for mixing and degassing
- Fast demold (3–5 hours) supports quicker production cycles
- Low shrinkage maintains mold accuracy over repeated use
- Cured rubber provides rigidity and durability for casting processes
Common Applications
- Molds for architectural replication
- Furniture and picture frame molds
- Prototype and technical part molds
- Polyester, epoxy, and polyurethane casting molds
Available Sizes or Variants
- 1.1 Kg Kit (Quart)
- 5.5 Kg Kit (Gallon)
- 19.8 Kg Kit (Pail)

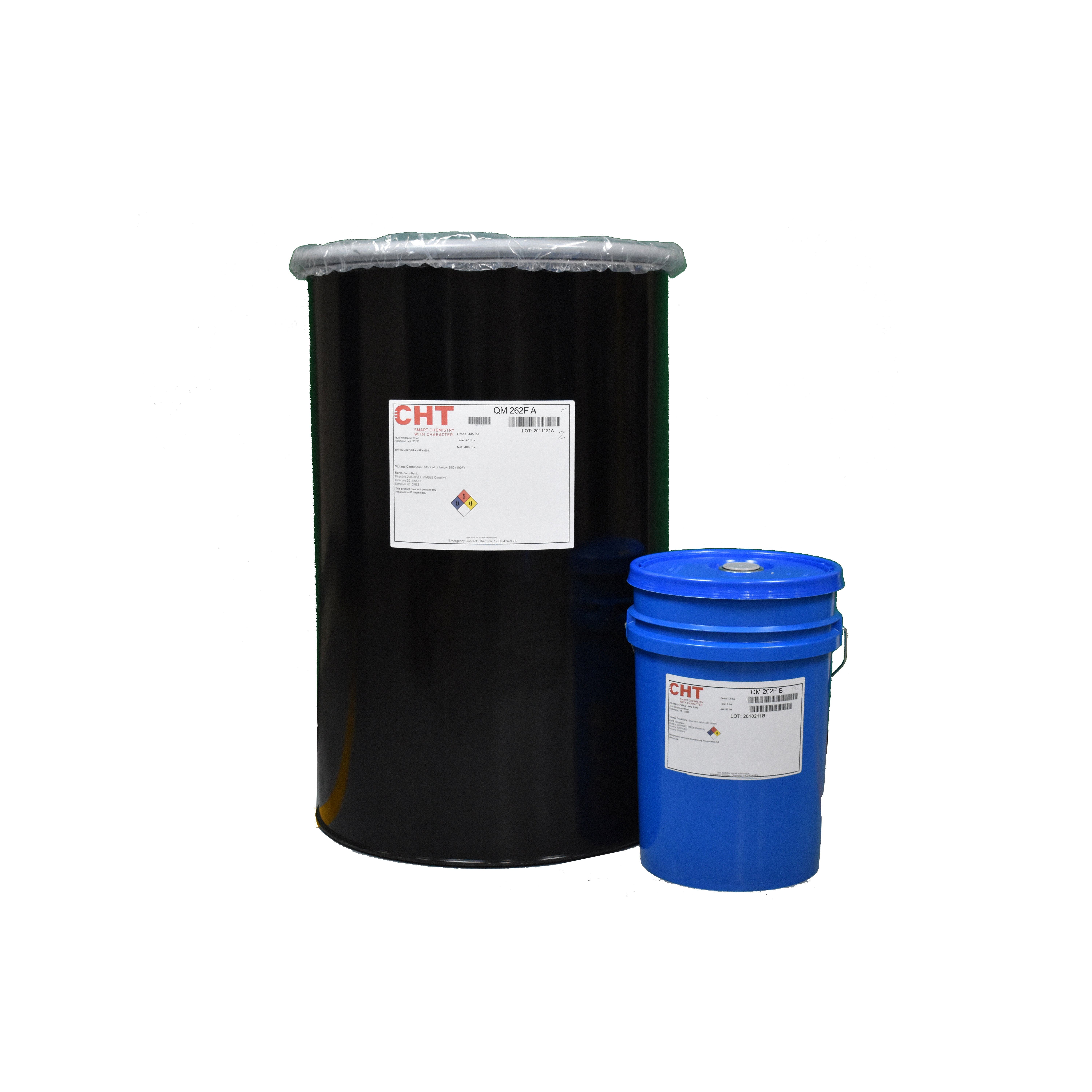

- 242 Kg Kit (Drum)
