Description
QM 263 is a two-component, room temperature, addition cure silicone material. The cured rubber has excellent mechanical properties and good shelf-life stability. This material is a good choice for the molding of furniture, picture frames and architectural materials.

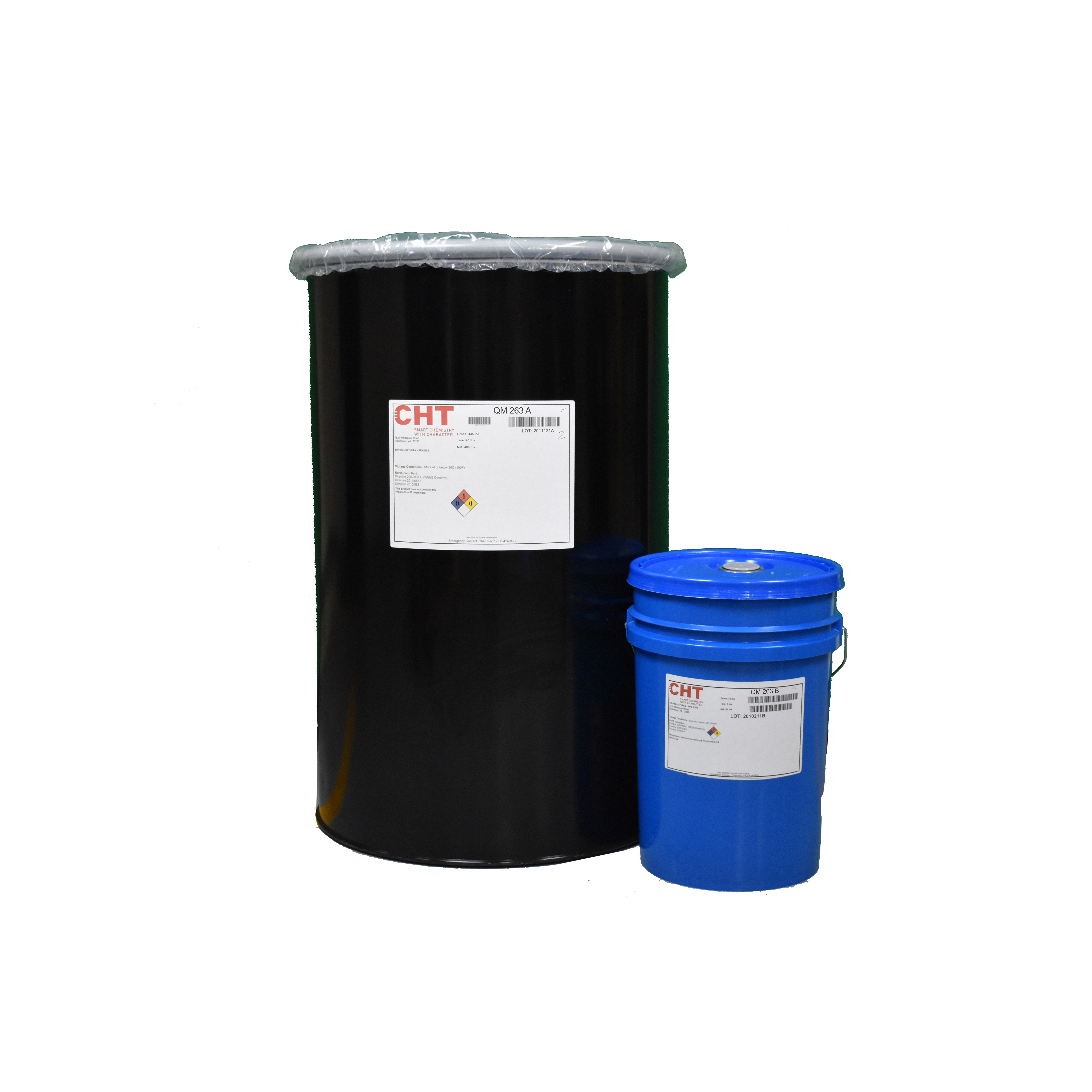

| Packing | Weight | Mix Ratio |
| Gallon Pail Kit | 11 lbs | 10:1 |
| 5 Gallon Pail Kit | 44 lbs | 10:1 |
| 55 Gallon Drum Kit | 550 lbs | 10:1 |
KEY FEATURES
- High durometer
- Casting resin resistance
- Fast demold time
- Excellent dimensional stability
MAIN APPLICATIONS
- Molds for architectural application
- Molds for polyester, epoxy resin casting, and rigid or foam polyurethane
- Molds for technical articles and prototypes
- Molds for furniture and picture frame replication
| Uncatalyzed | |||||
| TEST | QM 262F A | QM 262F B | |||
| Appearance | Beige | Blue | |||
| Viscosity | 55,000 cps | 2,000 cps | |||
| Specific Gravity | 1.30 | 1.02 | |||
| Catalyzed | |
| MIX RATIO 10:1 by weight | |
| PROPERTY | RESULT |
| Catalyzed Color | Light Blue |
| Viscosity | 35,000 cps |
| Work life at 25°C | 30 minutes |
| Demold Time | 3 to 5 hours |
| Cured Properties | |
| 3 Days at 25°C | |
| Durometer, Shore A | 60 |
| Tensile Strength | 1,000 psi |
| Elongation | 140% |
| Tear | 90 ppi |
| Linear Shrinkage | < 0.1 % |
| Useful temperature range | -55°C – 204°C |
