Chem-Set KDM110 Replacement Venturi Valve

Description

KDM110 venturi valve is a Chem-Set replacement part for the KDM110 Keep-Nut drilling machine vacuum system. It supports service work when the drilling base loses suction or the vacuum circuit needs a valve replacement during stone anchor installation work.

KDM110 venturi valve Benefits

• Replacement valve keeps the KDM110 vacuum base serviceable instead of sidelining the machine.
• Supports suction recovery on drilling setups used for Keep-Nut anchor holes.
• Small service part is easier to stock than a full drilling machine assembly.
• Special-order availability gives maintenance teams a clear path for planned repair.
• Chem-Set part routing keeps the accessory tied to the correct drilling platform.

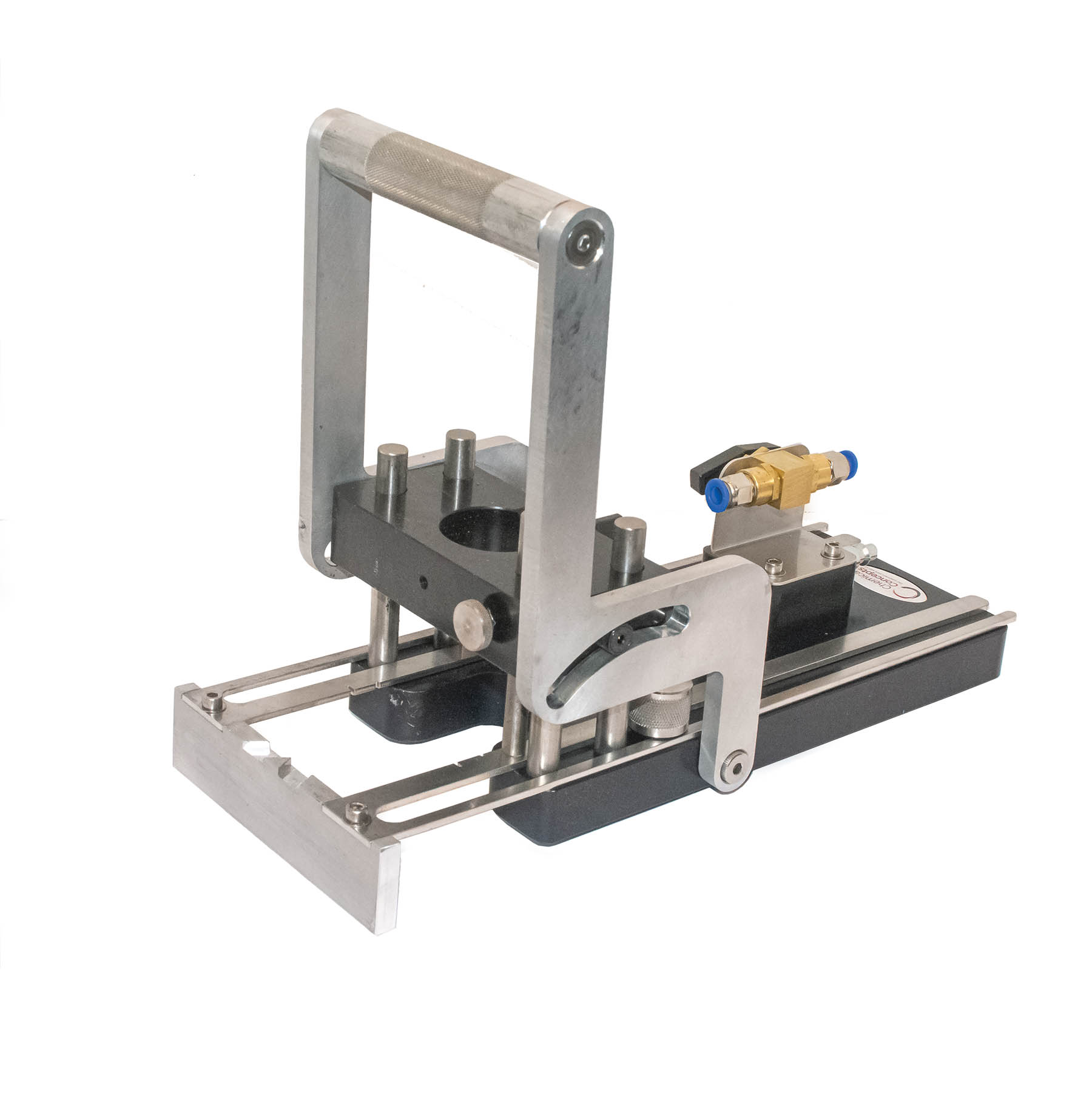

The KDM110 machine uses vacuum attachment to hold position on hard surfaces while drilling precise anchor holes. A clean, working venturi path matters because dust or debris in that circuit can reduce holding force and make drilling less repeatable.

KDM110 venturi valve Applications

• Service repair for KDM110 Keep-Nut drilling machine vacuum systems.
• Maintenance stock for countertop and facade installation crews.
• Replacement after inspection shows damaged valve parts or persistent suction loss.
• Support for stone, quartz, porcelain, glass, and panel anchor drilling workflows.
• Field repair kits for crews that cannot wait on a full machine replacement.

Installation And Service Notes

Before replacing parts, disconnect the machine from air supply and inspect the venturi block for debris. The KDM110 manual notes that suction loss can come from a blocked venturi and gives a cleaning sequence for the venturi block and valve area.

Install replacement parts only after the cavity is clean and fittings are inspected. Reassemble the machine, then check suction before drilling a production surface. Use the proper diamond bit, depth control, and water feed for the substrate.

Technical Details And Documentation

Chemical Concepts lists this item as SKU CCH-KDM-DMV92320 for the KDM110 drilling machine, with import origin and special-order handling. The KDM110 manual identifies venturi blockage as a likely cause of suction loss and describes inspection of the valve inside the venturi block. For general installation-tool reference, see the Industrial Fasteners Institute.

Ordering Help

Confirm the machine model before ordering because KDM accessories vary by platform. For related drilling machines, bits, and service parts, browse Chemical Concepts hardware.

For help matching a replacement part to a Keep-Nut drilling setup, call (800) 220-1966 or email [email protected].
