Ritter ACF ORBIS 6-24 Static Mixer 10:1 Ratio (16336-0242)

Description

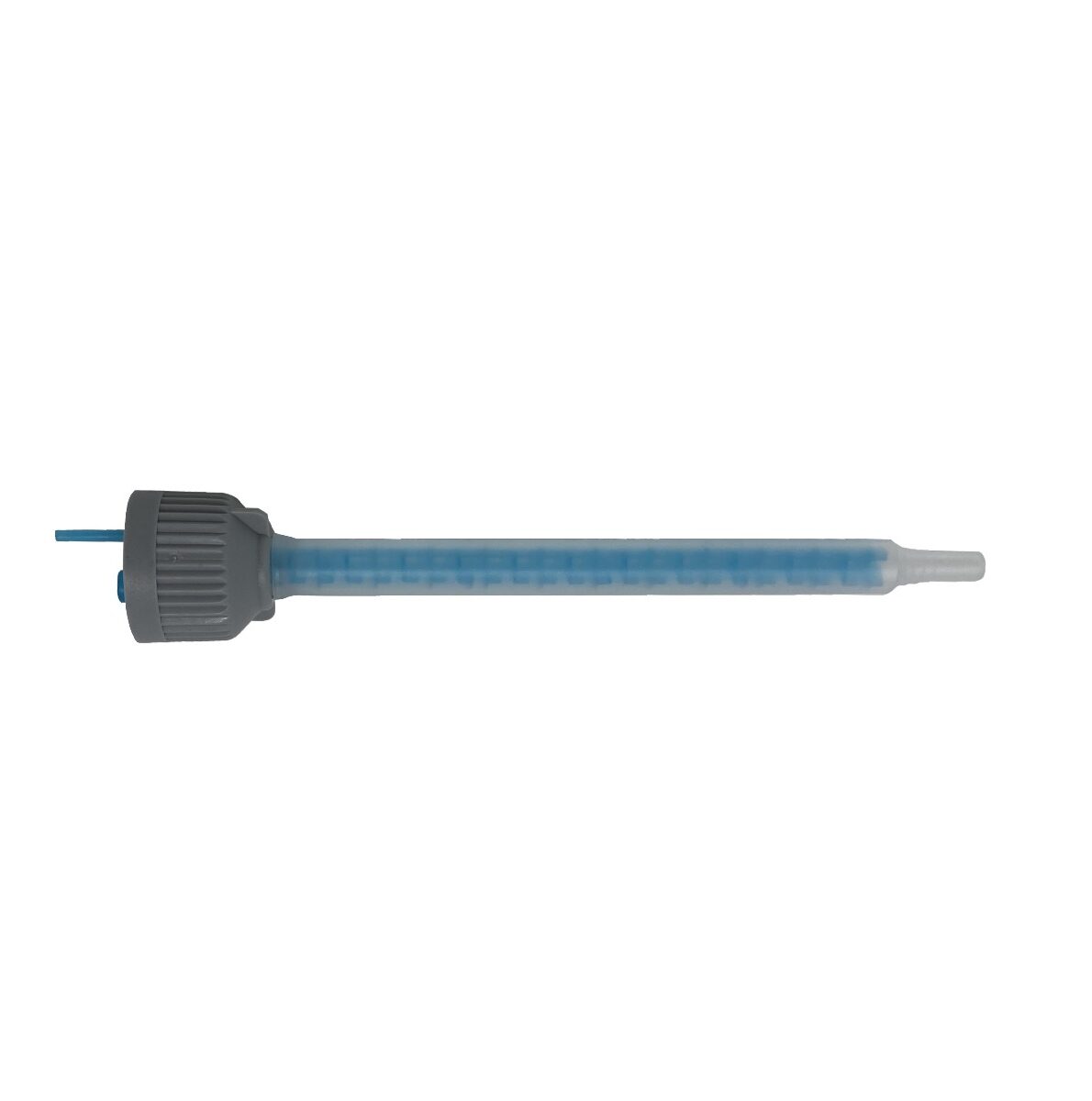

The Ritter ACF ORBIS 6-24 is a 10:1 ratio Ritter static mixer designed for the 50ml ACF cartridge system. The 24 mixing elements deliver a complete blend of two-component adhesives in a compact 114mm length, with a 7.9mm tube diameter and a 1.6mm inner outlet that suits precision dispensing on small assemblies. The 6-24 designation reflects the 6mm tube and 24-element mix length that the design uses to achieve consistent ratio control across the cartridge’s working volume.

Ritter static mixer specs for the ORBIS 6-24

The 16336-0242 part number identifies the 10:1 ratio variant. Key dimensions are 114mm length and a 4.2mm outer outlet diameter, with the 1.6mm inner outlet bore producing a clean, narrow bead. Retained volume in the mixer is 2.4ml. The 24 mixing elements alternate the two-component flow through the tube to deliver a homogeneous mix before exit. The shape and ratio make this mixer suited to material chemistries where high-ratio blends like 10:1 epoxies, methacrylates, and polyurethanes are dispensed.

Where the ORBIS 6-24 fits in the ACF system

The ACF cartridge family is Ritter’s 50ml platform for both 4:1 and 10:1 mix ratios. The same cartridge bodies accept different mixers depending on the chemistry being dispensed. The 6-24 ORBIS sits in the high-ratio slot for 10:1 work. The ORBIS line uses the integrated nut interface for repeatable mounting and tear-down. For larger assemblies, the ACF family also has 200ml and 400ml options that take their own mixer sizes.

Selecting the right mixing element count

Element count drives mix homogeneity. More elements give better blend at the cost of higher back-pressure and more retained material. The 24-element design on the 6-24 is calibrated for the typical 10:1 epoxy and methacrylate chemistries that the ACF platform serves. If you are dispensing chemistries that demand fewer elements for shorter pot life or less back pressure, Ritter publishes parallel mixer series with different element counts on the same tube diameters.

Buying a Ritter static mixer through Chemical Concepts

This mixer is stocked alongside the rest of our dispensers, mixers, and nozzles. We can match the ORBIS 6-24 to your existing ACF cartridges or recommend a different Ritter mixer if your chemistry calls for a different element count or ratio. Reach our team at (800) 220-1966 or [email protected]. For the full Ritter product family, see Ritter Cartridges’ two-component dispensing and mixing technology overview.
