Description

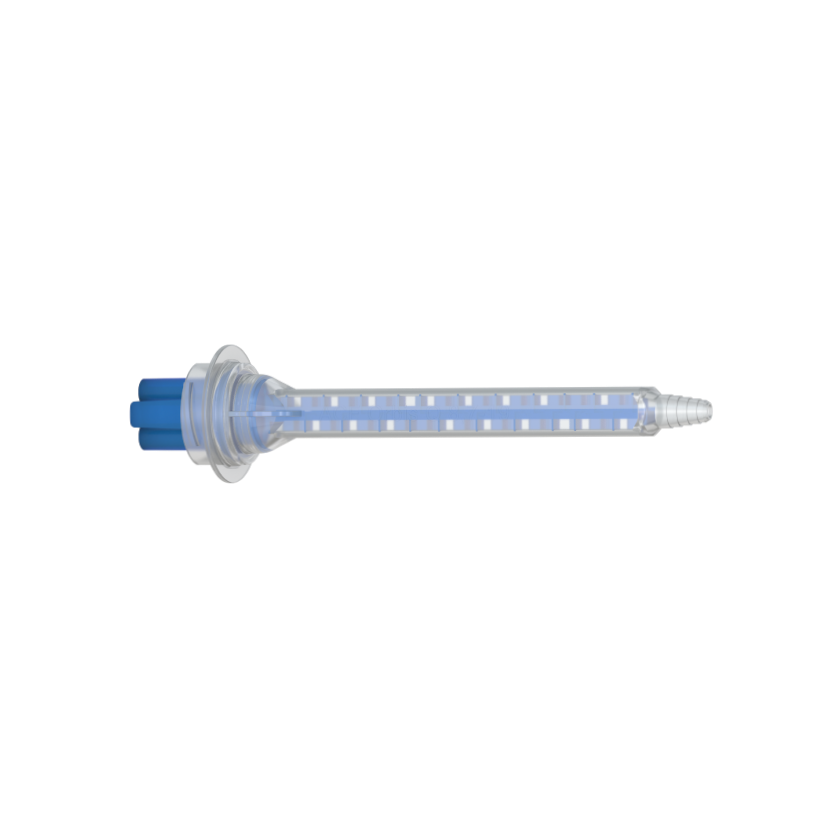

The Ritter ORBIS-Q mixer is a 10:1 static mixer for two-component adhesive cartridges that need consistent blending at the nozzle. Part number 13600-3150 uses 19 mixing elements in a 132 mm body, making it a practical choice for methacrylates, epoxies, acrylics, and other high-ratio materials where bead quality and low waste both matter.
Key Features and Benefits
- 19 mixing elements help develop a uniform mix before the adhesive reaches the bond line.
- 10:1 geometry matches cartridge systems used for higher-ratio structural materials.
- 132 mm overall length gives the material enough travel to blend without making the nozzle overly long.
- 4.2 mm outlet helps place a controlled bead into seams, channels, and prepared joints.
- 7.2 mL retained volume keeps purge loss lower than longer high-volume nozzles.
- Disposable plastic construction avoids cleanup between cartridge changes.
Common Applications for Ritter ORBIS-Q mixer
- Dispensing 10:1 methacrylate and epoxy adhesives in transportation assembly.
- Bonding composite, metal, and plastic parts in shop production.
- Applying two-part materials into narrow bond lines and fixture pockets.
- Repair work where a clean first-pass mix is needed from a cartridge system.
- General manufacturing jobs that use Ritter ACF ORBIS cartridges.
Compatible Cartridges and Chemistries
- Ritter ACF ORBIS 10:1 cartridge platforms.
- Two-part epoxies, acrylics, urethanes, and methacrylates that run through 10:1 static mixing tips.
- Shop and field dispensing setups that rely on disposable cartridge nozzles.
Ritter ORBIS-Q mixer Technical Specifications
| Specification | Value |
|---|---|
| Manufacturer | Ritter |
| Reference | 13600-3150 |
| Mix ratio | 10:1 |
| Mixing elements | 19 |
| Length | 132 mm (5.2 in.) |
| Outer outlet diameter | 4.2 mm (0.2 in.) |
| Inner outlet diameter | 3.2 mm (0.13 in.) |
| Retained volume | 7.2 mL |
| Country of manufacture | Germany |
Packaging and Ordering
This mixer is sold individually for cartridge replacement and line stocking. Browse the full dispensers, mixers, and nozzles category for related ratios and outlet styles. For cartridge system details and dimensional references, review Ritter cartridge resources before standardizing a nozzle across production.
Need Help?
If you need a cross-reference for another 10:1 mixer or want help matching this nozzle to a cartridge and chemistry, call (800) 220-1966 or email [email protected].
