Description

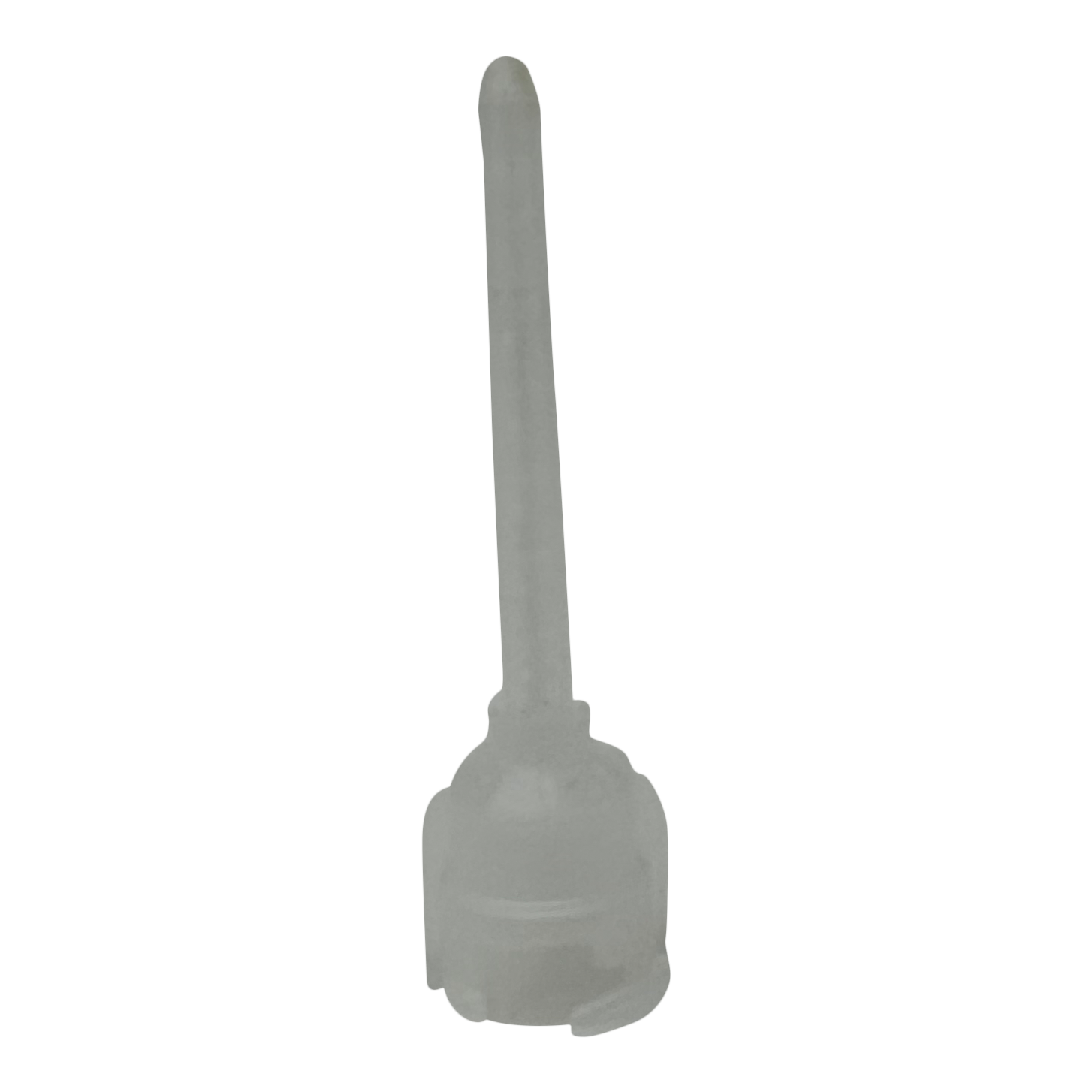

Ritter ZWM 16-SG is a compact helical static mixer with a B-style connection for compatible two-component cartridges. It uses 16 mixing elements in a 70.2 mm body, giving shops a shorter disposable mixer for adhesive and sealant dispensing where the cartridge and ratio call for this geometry.
Ritter ZWM 16 Connection Details
- B-style connection for matching two-component cartridge outlets.
- Sixteen helical mixing elements inside a compact body.
- 70.2 mm length helps reduce retained material compared with longer mixers.
- Listed for 1:1 and 2:1 ratio cartridge use in the product data.
- Disposable format supports clean starts after cure, pause time, or material changes.
Static mixers use fixed elements to divide and recombine the two streams while the dispenser pushes material through the nozzle. Choose this mixer only when the cartridge outlet, ratio, and adhesive supplier guidance match the part. After installation, purge until color and flow look even before applying material to the part.
Common Applications for Ritter ZWM 16
- Adhesive and sealant dispensing from matching B-style cartridges.
- Small bead work where a compact mixer is easier to handle around fixtures.
- Repair kits that need several spare nozzles for partial cartridges.
- Production cells that sort mixers by ratio, connection style, and length.
Compatible Cartridges and Materials
- Two-component cartridge systems using the matching B-style connection.
- 1:1 and 2:1 adhesive packages when the cartridge outlet matches this mixer.
- Epoxy, urethane, acrylic, and sealant systems approved for static mixer dispensing.
Technical Specifications
| Property | Value |
|---|---|
| SKU | RIT13101-0000 |
| Reference | 13101-0000 |
| Mixer type | Helical static mixer |
| Connection | B-style |
| Mix ratio fit | 1:1 and 2:1 |
| Mixing elements | 16 |
| Length | 70.2 mm, 2.8 in |
Packaging and Ordering
Use the reference number and connection style when restocking to avoid confusing this short mixer with other Ritter ZWM nozzles. For related cartridge accessories, browse dispensers, mixers, and nozzles. For manufacturer background on Ritter components, visit Ritter.
Need Help?
Need help checking B-style mixer fit against your cartridge outlet? Call (800) 220-1966 or email [email protected].
