Description

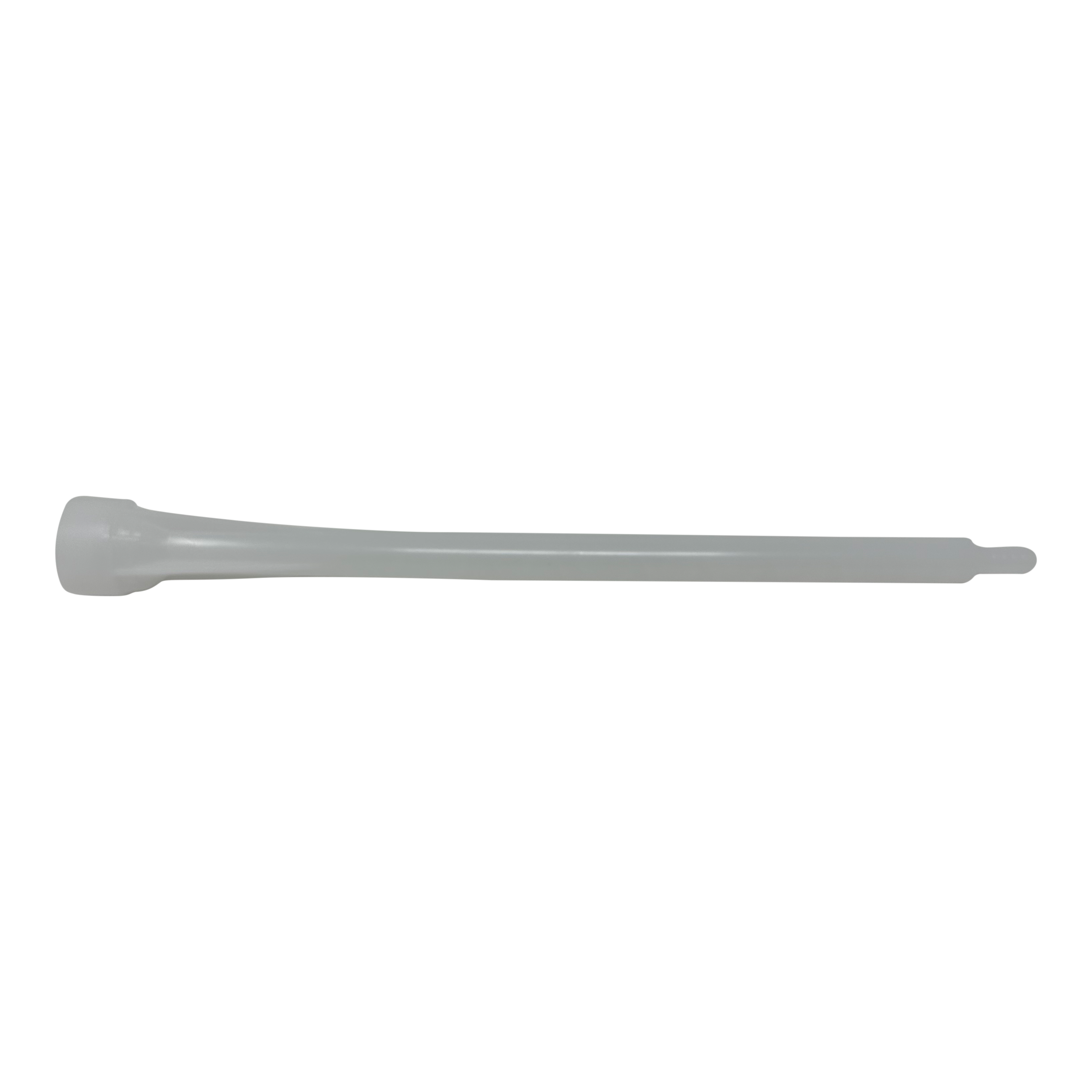

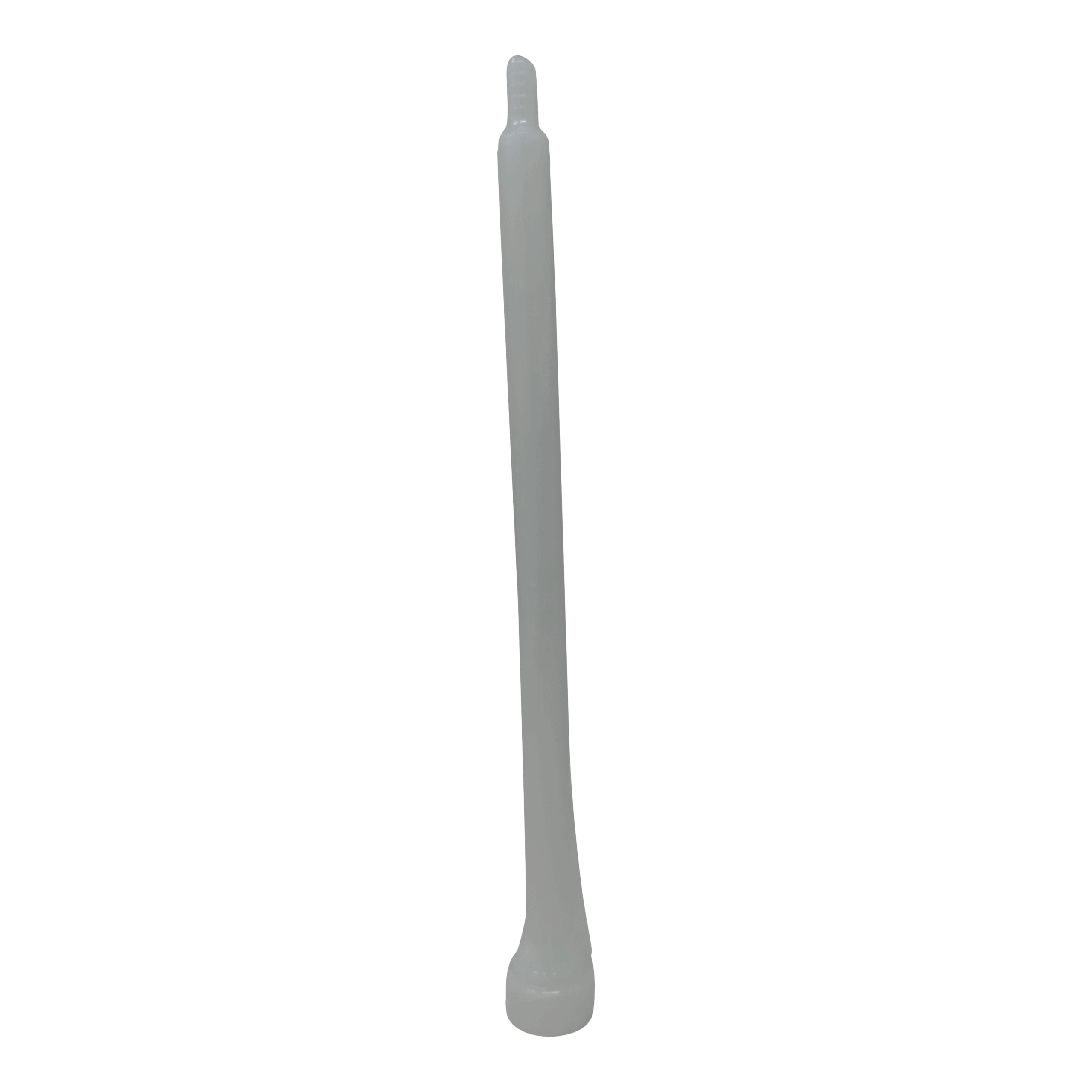

Ritter ZWM 24 is a helical static mixer with an integral nut connection for two-component cartridge dispensing. Its 24 mixing elements and 237 mm length provide a long mixing path for adhesives and sealants that need more travel through the nozzle before the bead reaches the work surface.
Ritter ZWM 24 Fit and Construction
- Helical static mixer for compatible two-component cartridges.
- Integral nut connection supports a secure cartridge attachment.
- Twenty-four internal elements divide and recombine material during dispensing.
- 237 mm length gives more mixing path than short compact nozzles.
- Disposable format supports clean changeover after cure, pause time, or adhesive changes.
Use this mixer when the process calls for its connection style, element count, and length. Before production use, confirm the cartridge outlet and adhesive ratio against the dispenser setup. Purge a small amount after installation so both components are moving through the mixer before the bond line begins.
Common Applications for Ritter ZWM 24
- Production dispensing of two-part adhesives from matching cartridges.
- Maintenance kits where mixers are replaced after cure or downtime.
- Bonding and sealing operations that use cartridge mixing instead of hand blending.
- Shop benches that sort spare nozzles by connection type, length, and element count.
Compatible Cartridges and Materials
- Two-component cartridge systems with the matching integral nut outlet.
- Epoxy, acrylic, urethane, and sealant systems when approved by the adhesive supplier.
- Manual, pneumatic, or battery dispensers fitted for the same cartridge geometry.
Technical Specifications
| Property | Value |
|---|---|
| SKU | RIT13122-0000 |
| Reference | 13122-0000 |
| Mixer type | Helical static mixer |
| Connection | Integral nut |
| Mixing elements | 24 |
| Length | 237 mm, 9.3 in |
Packaging and Ordering
Order by connection style and element count to avoid mixing it up with shorter B-style or bayonet nozzles. For related mixers and dispensers, browse dispensers, mixers, and nozzles. For manufacturer background on cartridge and mixer systems, visit Ritter.
Need Help?
Need help comparing Ritter mixer connections, lengths, or element counts? Call (800) 220-1966 or email [email protected].
