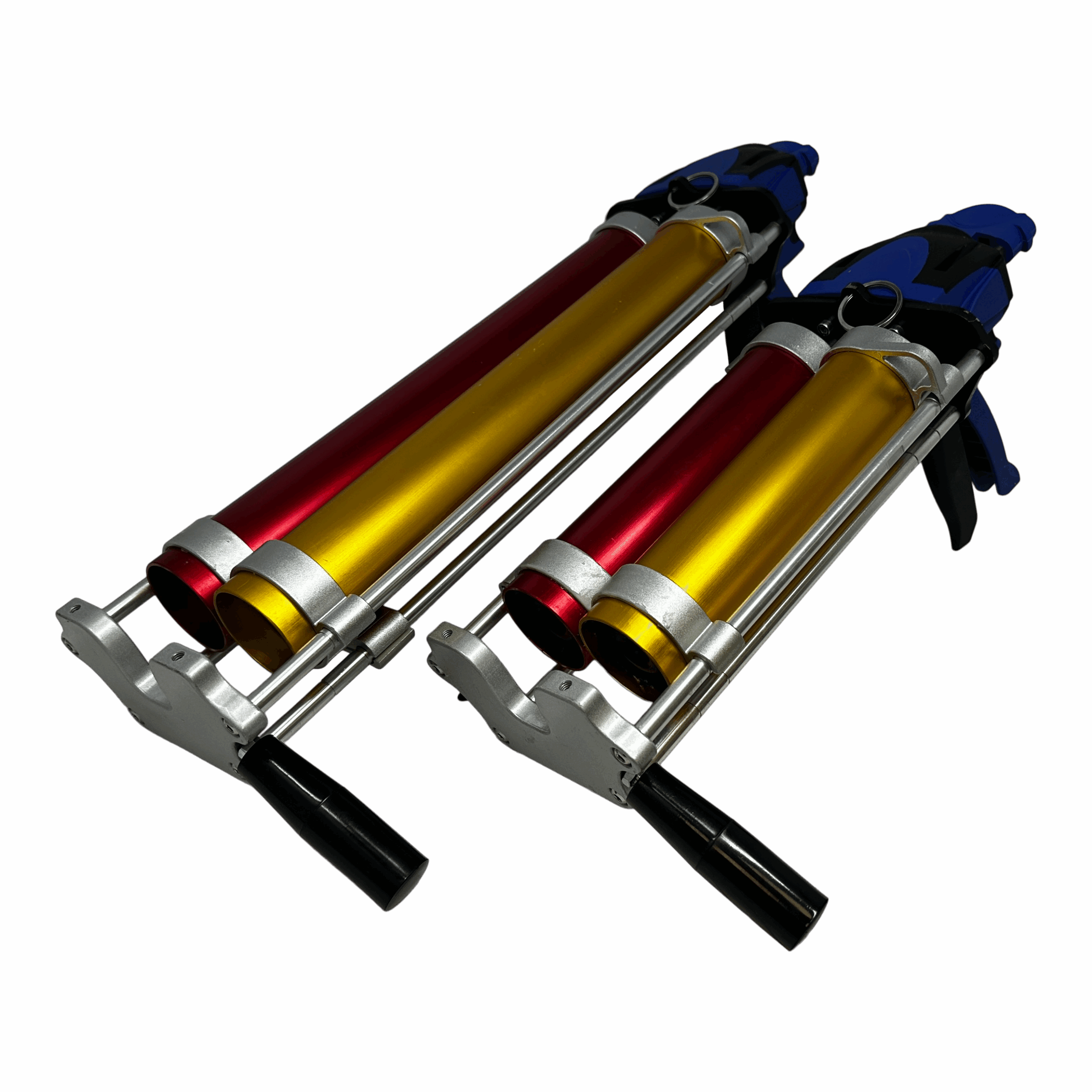

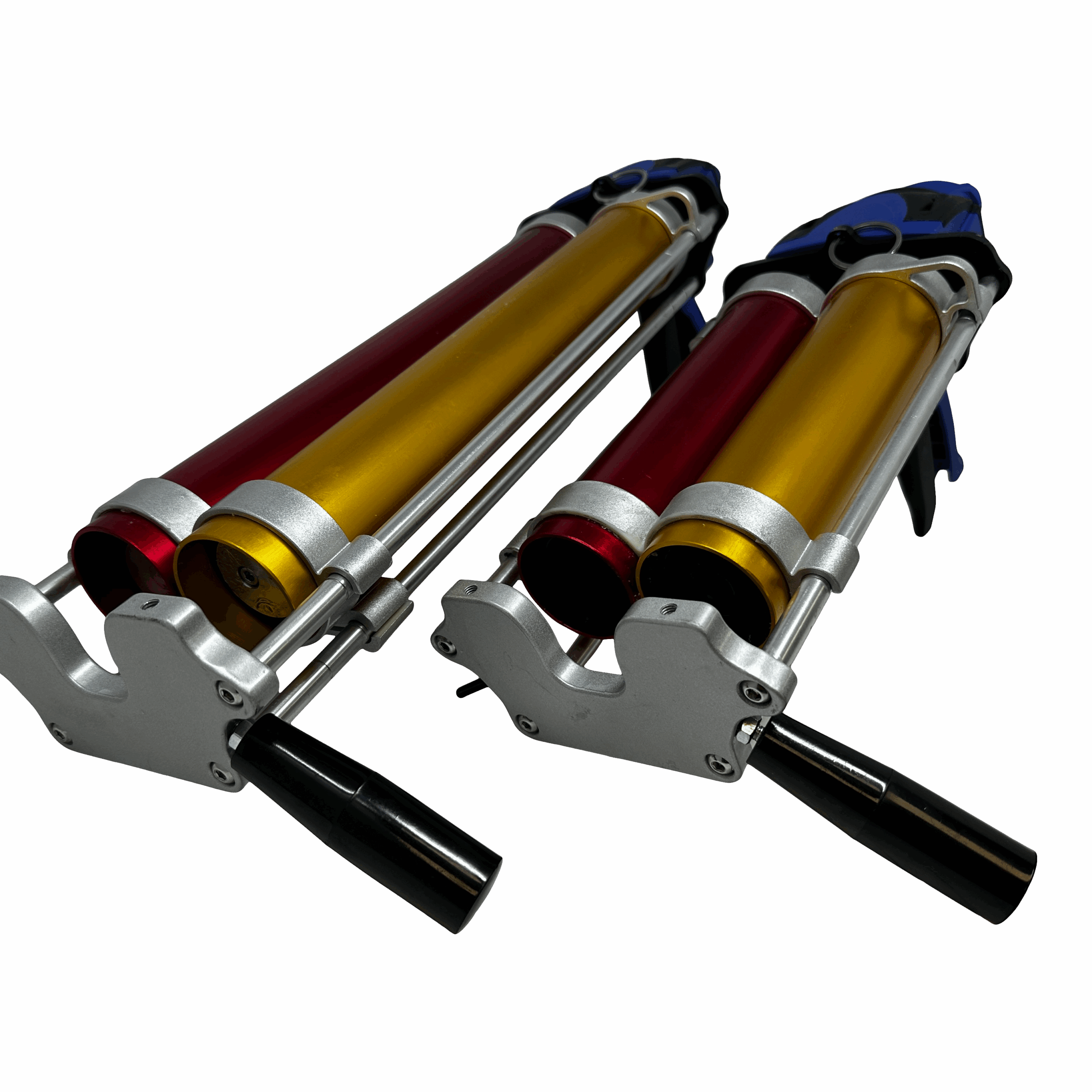

SmartPak Sausage Adhesive Dispensing Gun

Description

High-Volume Sausage Adhesive Dispensing for Production Environments

The SmartPak Sausage Adhesive Dispensing Gun is designed for use with SmartPak Mini and SmartPak XL sausage adhesive packs. It enables manufacturers to move beyond cartridge dispensing to higher-volume, lower-cost adhesive application without the expense or complexity of meter-mix bulk pail or drum systems.

This dispensing gun is the core hardware component of the SmartPak system and is used across multiple SmartPak adhesive formulations and kit configurations.

---

SmartPak Volume and Value Overview

Higher dispense volume per setup reduces changeovers, lowers packaging waste, and improves cost control on the shop floor.

---

Where This Dispensing Gun Fits Best

This dispensing gun is best suited for manufacturers who:

• Are already using SmartPak sausage adhesives

• Want to upgrade from cartridge dispensing

• Need portable, cordless adhesive dispensing

• Require higher output without permanent bulk equipment

For first-time SmartPak users, this gun is also available as part of a complete SmartPak Starter Kit that includes dispensing equipment, accessories, and UltraLok SmartPak adhesive formulations to get into production quickly.

---

Dispensing Performance and Control

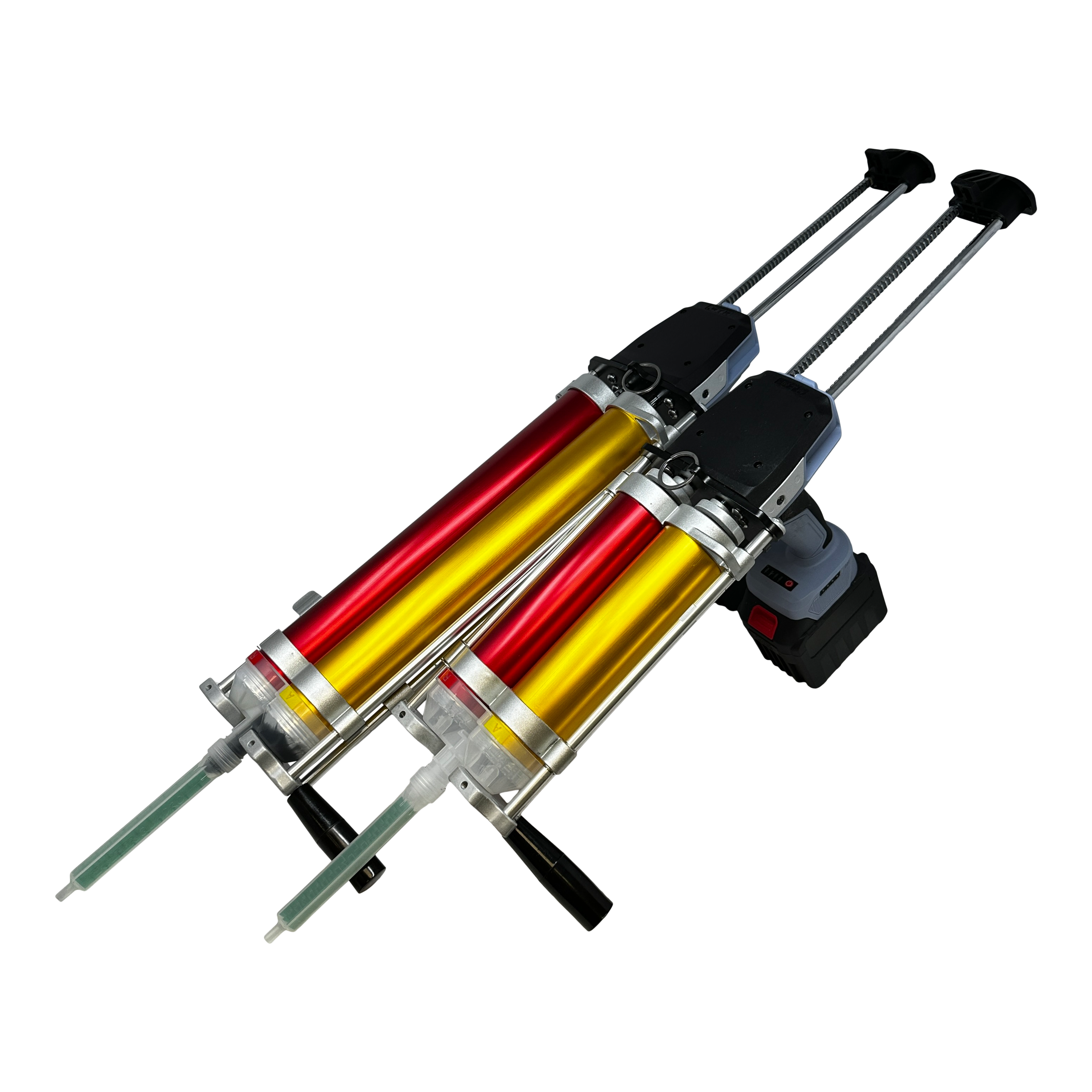

The SmartPak gun provides smooth, regulated dispensing with adjustable speed settings to control bead size and flow rate. The battery-powered version offers cordless operation and long battery life, eliminating the need for air lines.

Under normal operating conditions, the gun can fully dispense a SmartPak adhesive kit in approximately two minutes. The balanced design helps reduce operator fatigue during extended use.

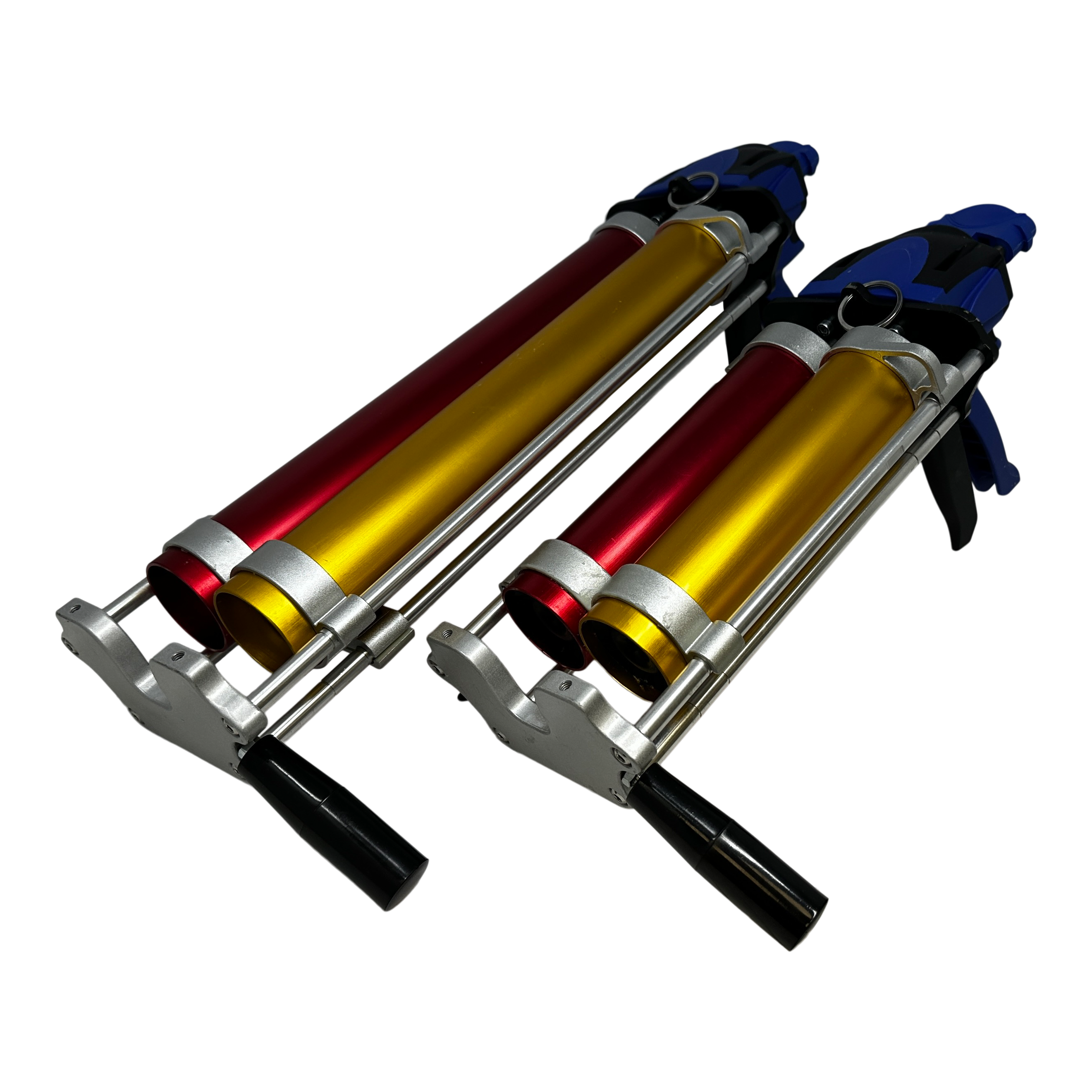

The gun supports SmartPak Mini and XL pouch sizes and is compatible with both 1:1 and 10:1 adhesive formulations, depending on the product being dispensed.

---

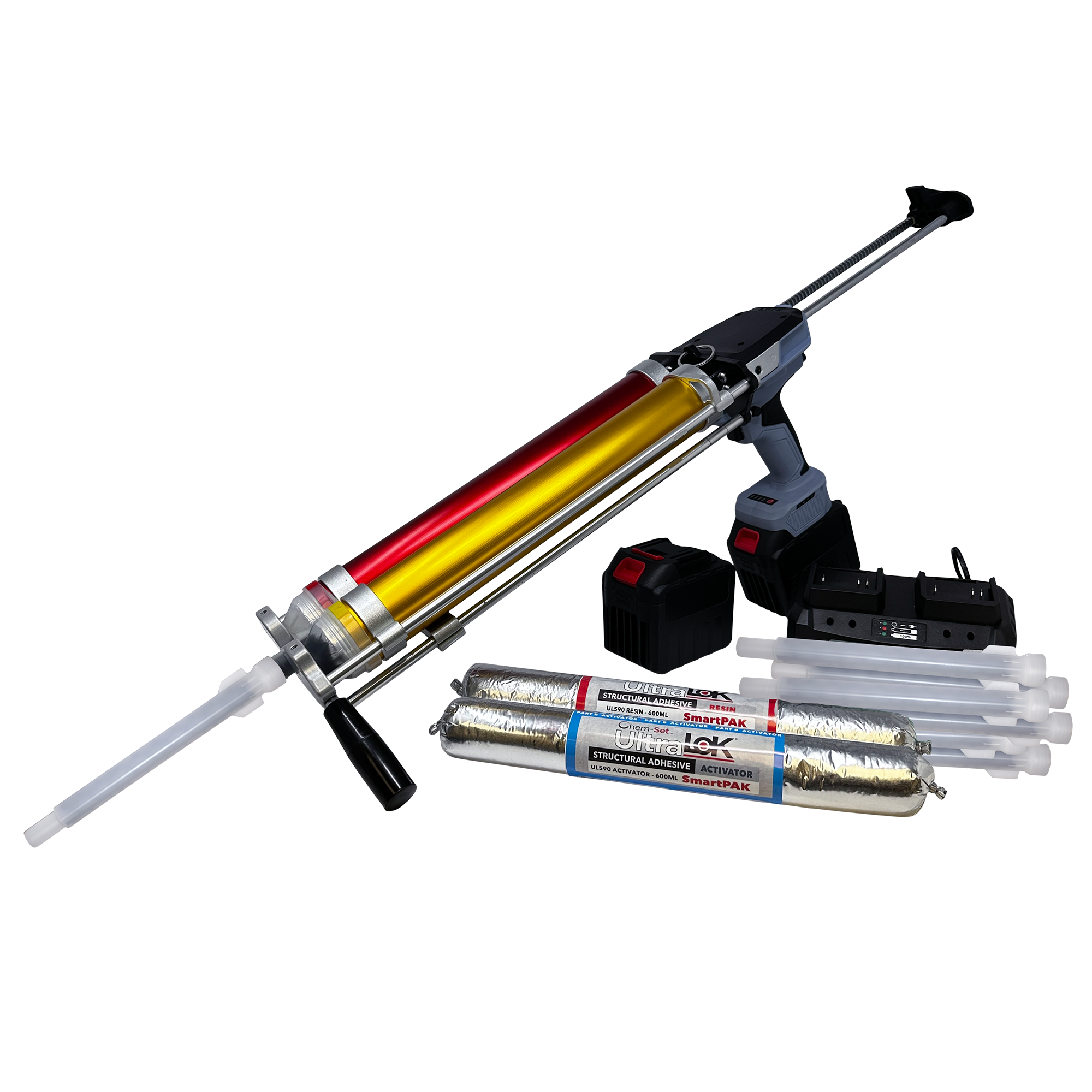

Battery-Powered Gun Kit Includes

• Four manifolds

• Two batteries

• One battery charger
  Each charger accommodates two batteries.

---

Setup, Loading, and Operation

Setup and Loading

1. Lubricate the tubes properly.

2. Insert the plungers.

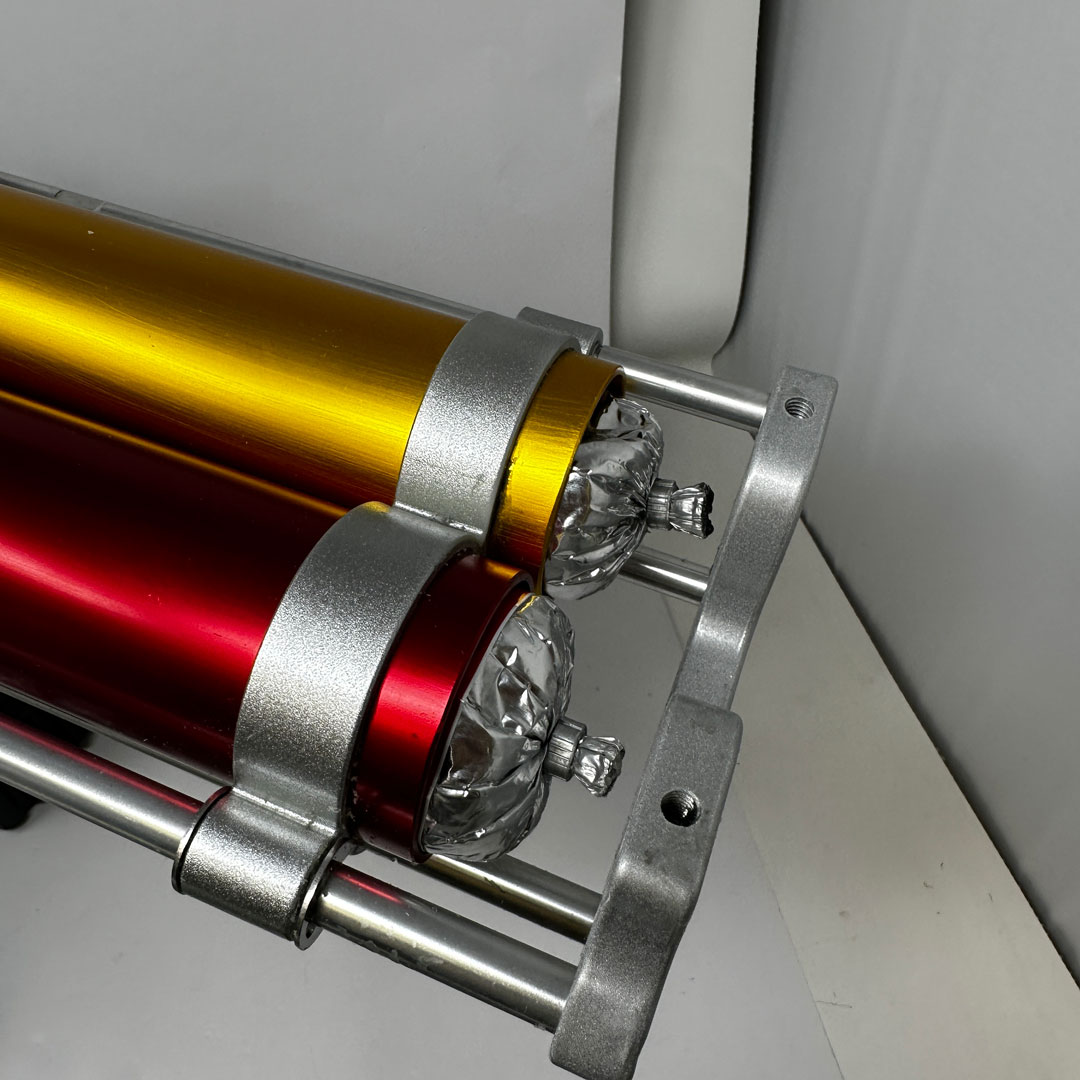

3. Load the SmartPak adhesive pouches, ensuring Part B goes into the Part B tube and Part A, red resin, goes into the other tube.

4. Set the thumb back, remove the C-lock clip and cap from the tip, cut, and remove the small plastic piece.

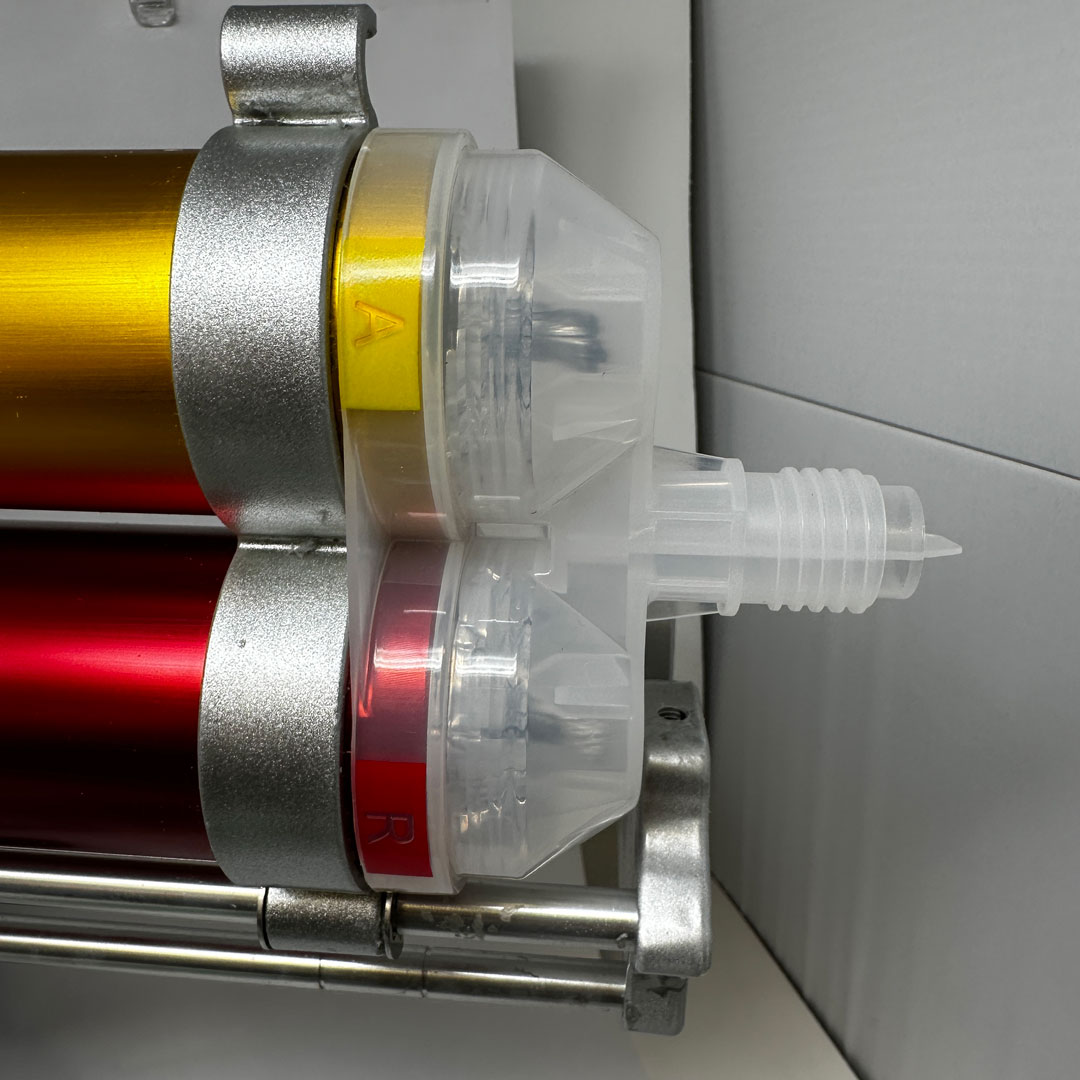

5. Insert the dispensing caps, matching red with red and activator with activator. The caps include penetrating spikes.

Penetrating and Initial Dispensing

1. Set the gun to speed two to penetrate the SmartPak pouches.

2. Once penetration has occurred, dispense until material begins to flow.

3. Press the trigger for auto-retract and clean up excess material.

Mixing and Full Dispensing

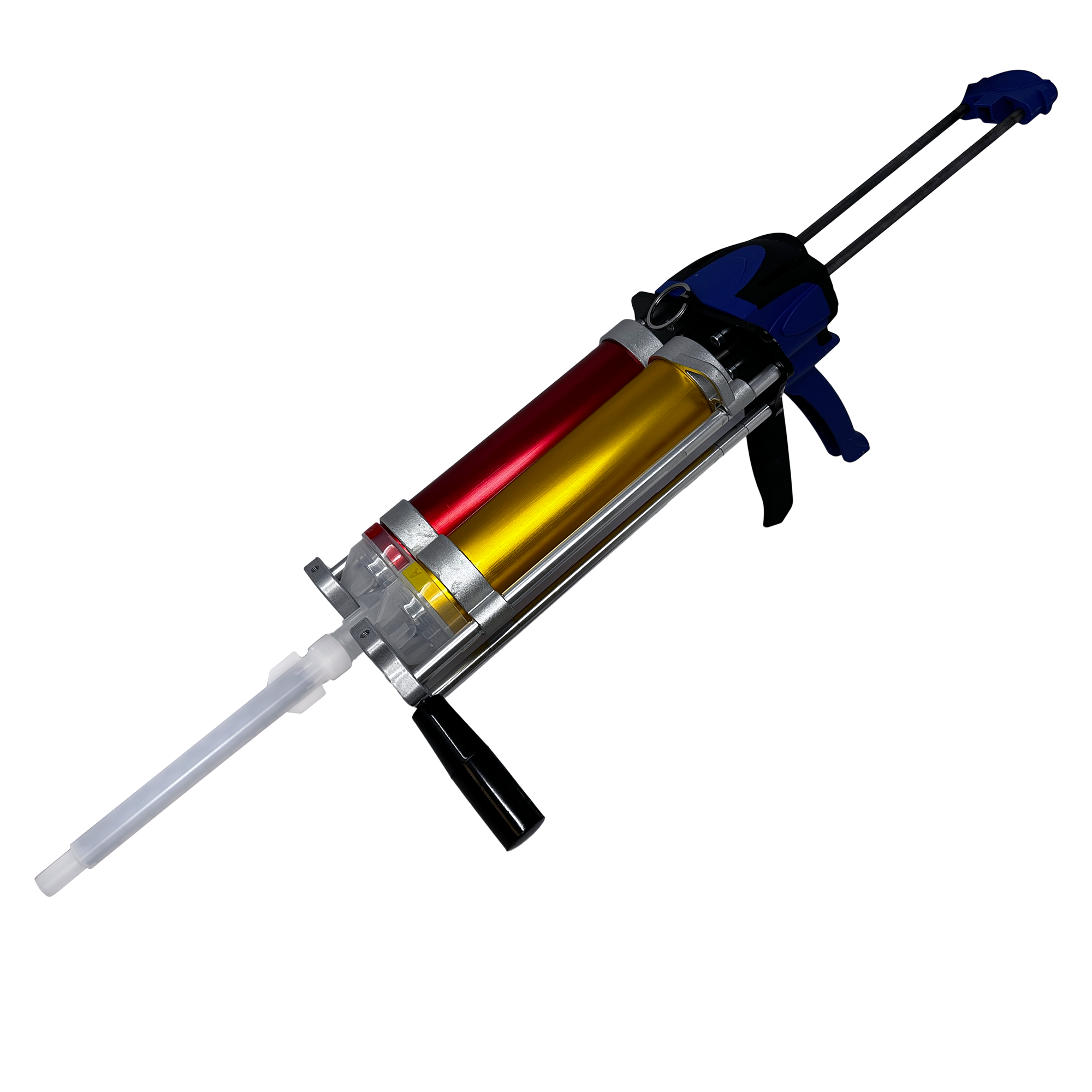

1. Attach the high-flow tip or the appropriate tip included in the pack, ensuring it is secured tightly.

2. Dispense initially on speed two. Some discoloration may occur at first due to incomplete mixing.

3. Continue dispensing until a consistent color is achieved, indicating proper mixing.

4. Switch the gun to speed four for full dispensing. The bead should be uniform, and the material should dispense without excessive force.

Cleanup

1. Press the trigger once more to compress the pouches and dispense any remaining adhesive.

2. Manually press the retract button and remove the tubes.

3. The caps and compressed pouches should remove easily with little to no adhesive remaining.

---

Why Manufacturers Choose SmartPak

• Bulk-style adhesive volume without bulk equipment cost

• Lower cost per milliliter compared to cartridges

• Reduced waste and packaging

• Faster production with fewer interruptions

• Portable system with no air lines required

The SmartPak Dispensing Gun enables manufacturers to increase efficiency and reduce adhesive costs while keeping their process flexible and scalable.
