Description

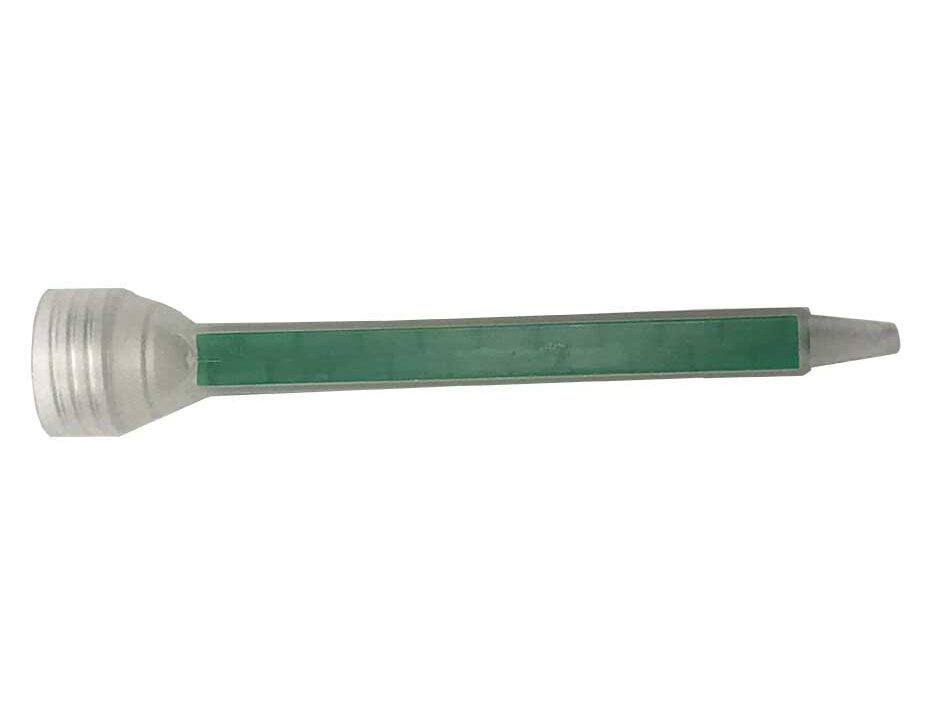

The Sulzer Medmix MGQ 08-20T Static Mixer is used to dispense adhesives from 200 ml, 400 ml, 600 ml, and 1,500 ml series C-System and Q-System cartridges. Each nozzle is disposable and features a simple integral nut mounting method attachment to two-component cartridges. This mixing nozzle contains 20 elements, 8.7mm ID, 142.0mm L, and retains 7.34ml of volume.
The Sulzer Medmix MGQ Series mixer is a quadro mixer and comes with a stepped or straight tip in a variety of element options.
| Mfg SKU | System | Series | Ratio | Helical/Quadro | Description | Elements | Ø ID (mm) |
L (mm) |
Vol. (ml) |
| MGQ 08-18T | C-System/Q-System | MGQ | 1:1/2:1/4:1/10:1 | Quadro | Mixer quadro green elements, internal thread, stepped tip |
18 | 8.7 | 129.0 | 6.70 |
| MGQ 08-20D | C-System/Q-System | MGQ | 1:1/2:1/4:1/10:1 | Quadro | Mixer quadro green elements, internal thread, straight tip |
20 | 8.7 | 142.0 | 7.57 |
| MGQ 08-20T | C-System/Q-System | MGQ | 1:1/2:1/4:1/10:1 | Quadro | Mixer quadro green elements, internal thread, stepped tip |
20 | 8.7 | 142.0 | 7.34 |
| MGQ 08-24D | C-System/Q-System | MGQ | 1:1/2:1/4:1/10:1 | Quadro | Mixer quadro green elements, internal thread, straight tip |
24 | 8.7 | 161.0 | 8.61 |
| MGQ 08-24T | C-System/Q-System | MGQ | 1:1/2:1/4:1/10:1 | Quadro | Mixer quadro green elements, internal thread, stepped tip |
24 | 8.7 | 161.0 | 8.76 |
| MGQ 10-16D | C-System/Q-System | MGQ | 1:1/2:1/4:1/10:1 | Quadro | Mixer quadro green elements, internal thread, straight tip |
16 | 10.7 | 158.0 | 12.69 |
| MGQ 10-19D | C-System/Q-System | MGQ | 1:1/2:1/4:1/10:1 | Quadro | Mixer quadro green elements, internal thread, straight tip |
19 | 10.7 | 158.0 | 12.15 |
| MGQ 10-24D | C-System/Q-System | MGQ | 1:1/2:1/4:1/10:1 | Quadro | Mixer quadro green elements, internal thread, straight tip |
24 | 10.7 | 187.0 | 14.49 |
