Description

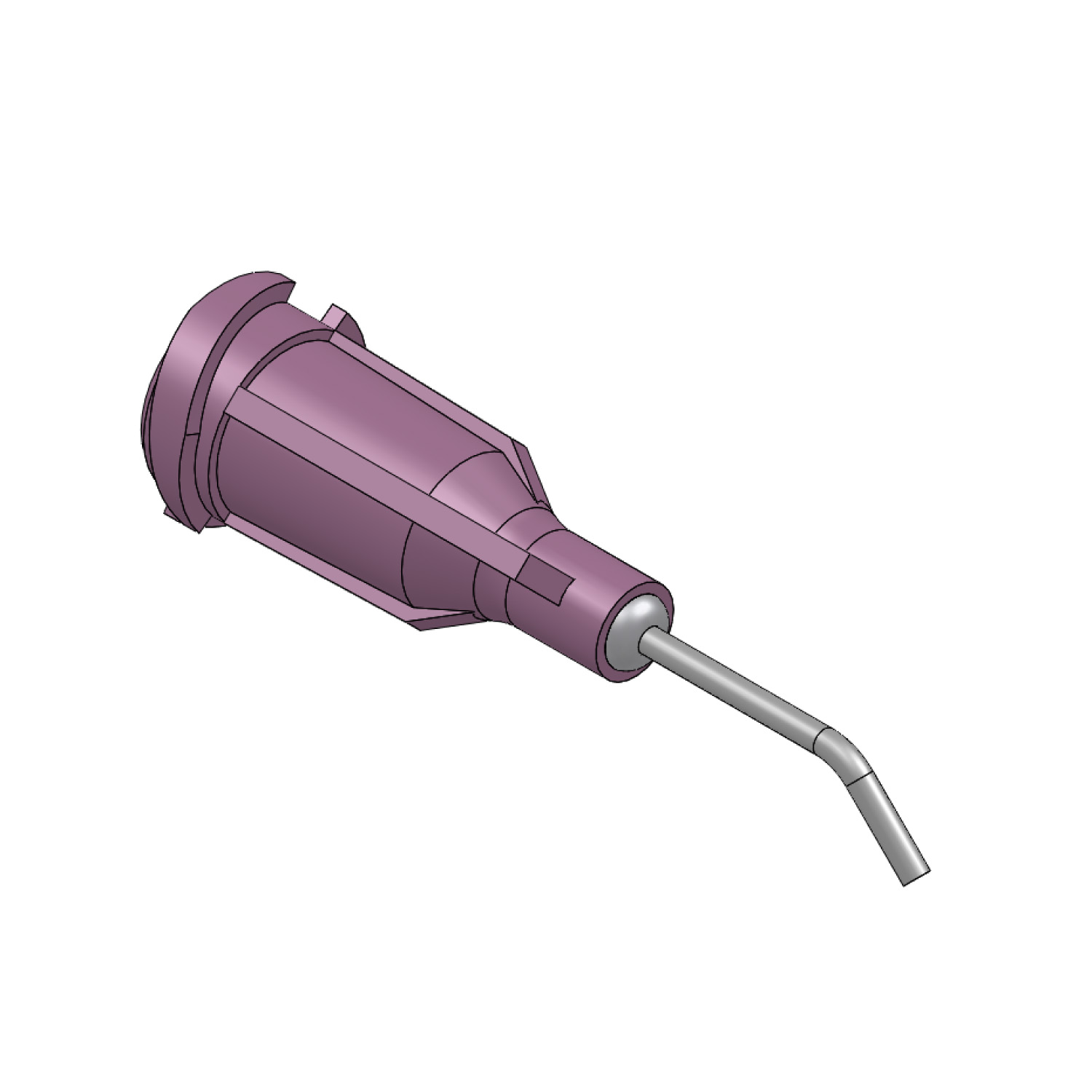

Techcon TE7 20 Gauge x 1/2 in Bent 45 Deg Dispensing Needle is a TE Series bent tip for controlled fluid placement where a straight outlet cannot reach the work cleanly. The 45 degree stainless cannula helps operators approach corners, shallow recesses, and angled joints while keeping the syringe barrel clear of the part.
Dispensing Needle Benefits
- 20 gauge bent stainless cannula supports fine to moderate material flow.
- 45 degree bend helps reach angled features without tilting the full barrel assembly.
- 1/2 inch length keeps the outlet close enough for controlled placement.
- Double helix polypropylene hub secures to compatible syringe barrel threads.
- Electro-polished, burr-free construction supports consistent flow through the bore.
Use this bent tip for adhesives, coatings, primers, activators, solvents, glues, and other compatible liquids when part geometry limits access. The 45 degree angle is useful for side-wall beads, under-edge placement, small housings, and fixtures where hand clearance matters. Confirm the bend direction, gauge, and material flow during a short test before putting the station into regular use.
Common Applications
- Applying beads along angled seams and recessed part features.
- Dispensing into electronics housings, trays, and fixture pockets.
- Repair benches where the barrel needs to stay clear of nearby hardware.
- Production kits that keep multiple bend angles available by part number.
Compatible Setup Notes
- Use with compatible syringe barrels and pressure dispensing equipment.
- Keep the bent cannula protected from impact so the outlet angle stays consistent.
- Replace the tip if cured material, bending damage, or debris changes the shot shape.
Dispensing Needle Specifications
| Property | Value |
|---|---|
| SKU | TECTE720050B45PK |
| Manufacturer part number | TE720050B45PK |
| Series | TE Series bent dispense tip |
| Gauge | 20 gauge |
| Length | 1/2 in |
| Bend angle | 45 degrees |
| Quantity | 50 per pack |
| Maximum operating pressure | 100 psi (6.9 bar) |
Packaging and Ordering
Order this pack when the process needs a 20 gauge tip with angled access. Browse related dispensers, mixers, and nozzles for barrels, valves, tubing, and dispensing accessories. Manufacturer background is available from Techcon.
Need Help?
Need help choosing a gauge, bend angle, or barrel setup for a tight access job? Call (800) 220-1966 or email [email protected].
