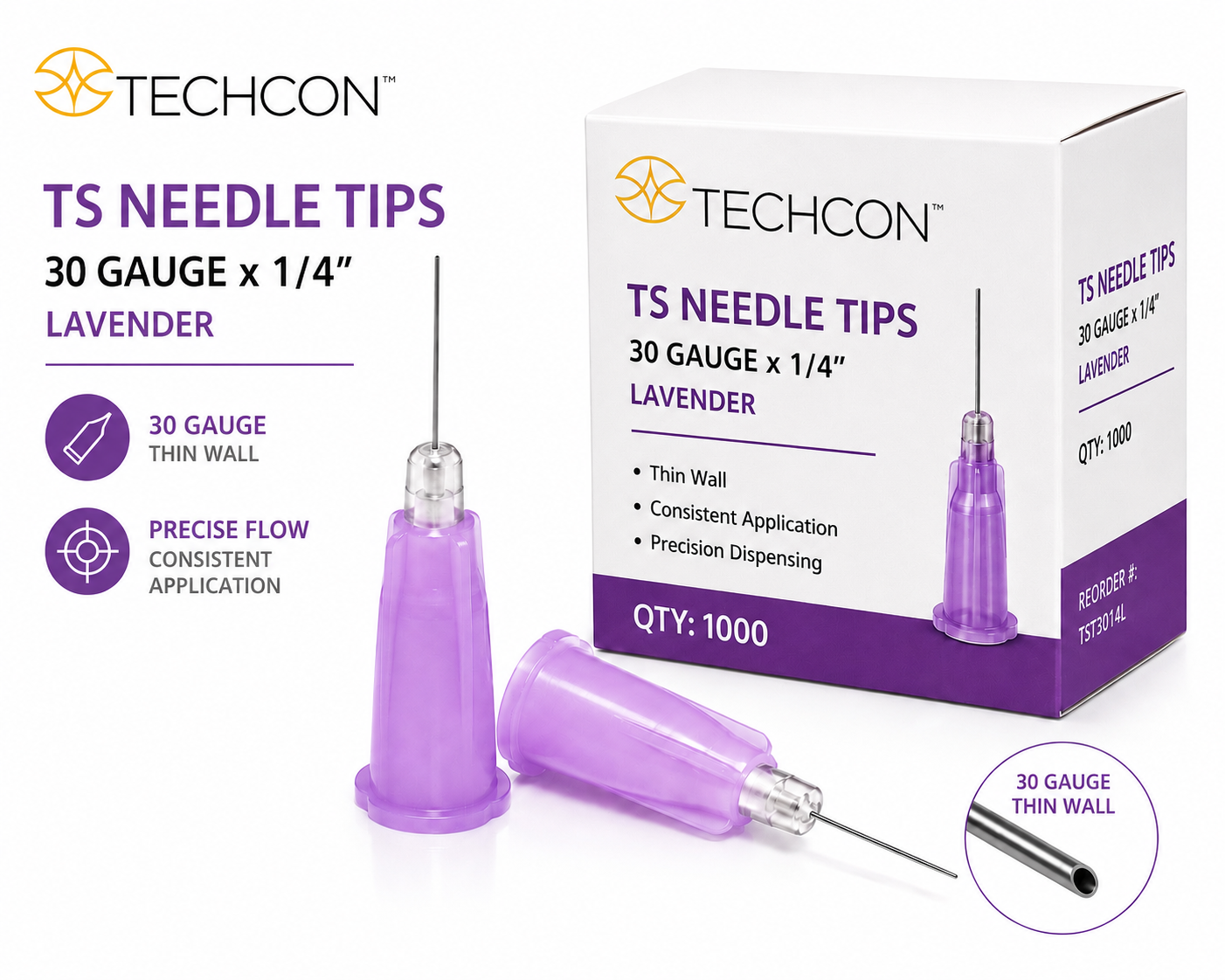

Techcon TS30 1/4 Lavender 30 Gauge Dispensing Needle, 1000 Pack

Description

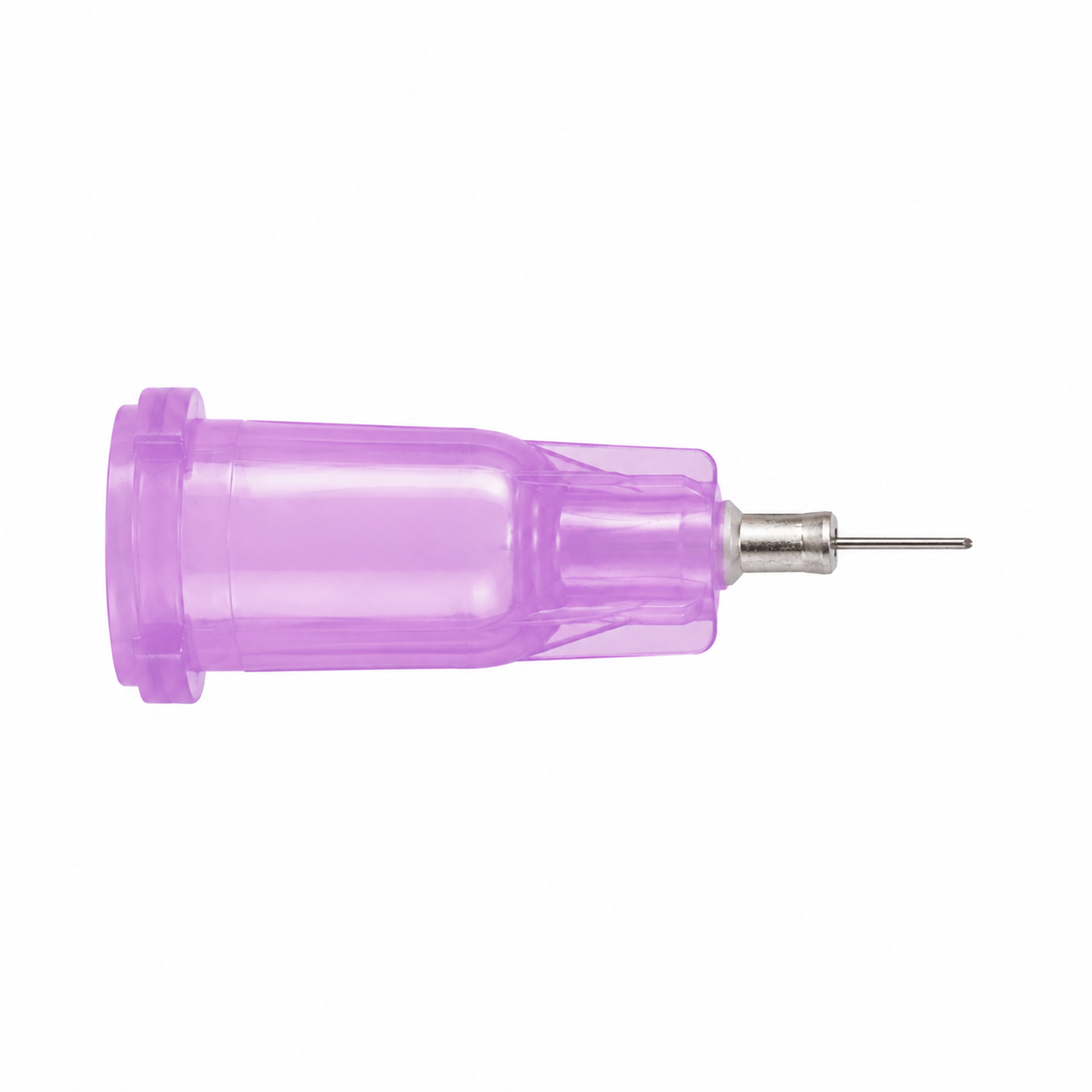

The TS30 needle is a lavender 30 gauge dispensing tip with a 1/4 inch stainless cannula for fine fluid placement from compatible syringe barrels. It is supplied in a 1000 pack for production benches, repair kits, and automated or manual dispensing work.

TS30 needle Benefits

• 30 gauge outlet supports small dots, fine beads, and controlled placement of low-flow materials.
• 1/4 inch length helps operators work close to the part without excess tip overhang.
• Lavender color coding makes 30 gauge tips easier to identify in mixed needle bins.
• Bulk pack quantity supports production use where tips are changed often for cleanliness.

TS30 needle Applications

• Fine adhesive dots on electronics, small plastic parts, and fixture assemblies.
• Controlled application of inks, sealants, light oils, or low-viscosity compounds.
• Manual syringe dispensing during prototype, repair, or laboratory work.
• Automated dispensing setups that require repeatable small bead geometry.

Surface Preparation And Setup

Use clean syringe barrels, clean material, and stable air pressure before installing a fine needle. Filter filled material when particles could block the cannula. Test the dot size on scrap, then adjust pressure, dwell time, or needle height before moving to finished parts. Keep spare tips sealed until use so dust does not enter the fluid path.

Technical Details And Documentation

Techcon lists the TS30-1/4-1000 as a lavender 30 gauge by 1/4 inch dispensing needle, and catalog data lists a 0.006 inch, 0.152 mm inner diameter with 6.35 mm length. Review current dispensing data from Techcon before setting pressure limits for production.

Dispensing And Ordering Help

Confirm material viscosity, particle size, pressure, desired dot size, and syringe compatibility before ordering. For related tips, barrels, retainers, and dispensing accessories, see Chemical Concepts’ dispensers, mixers, and nozzles category.

For help choosing a gauge or alternate needle length, contact Chemical Concepts at (800) 220-1966 or [email protected].
