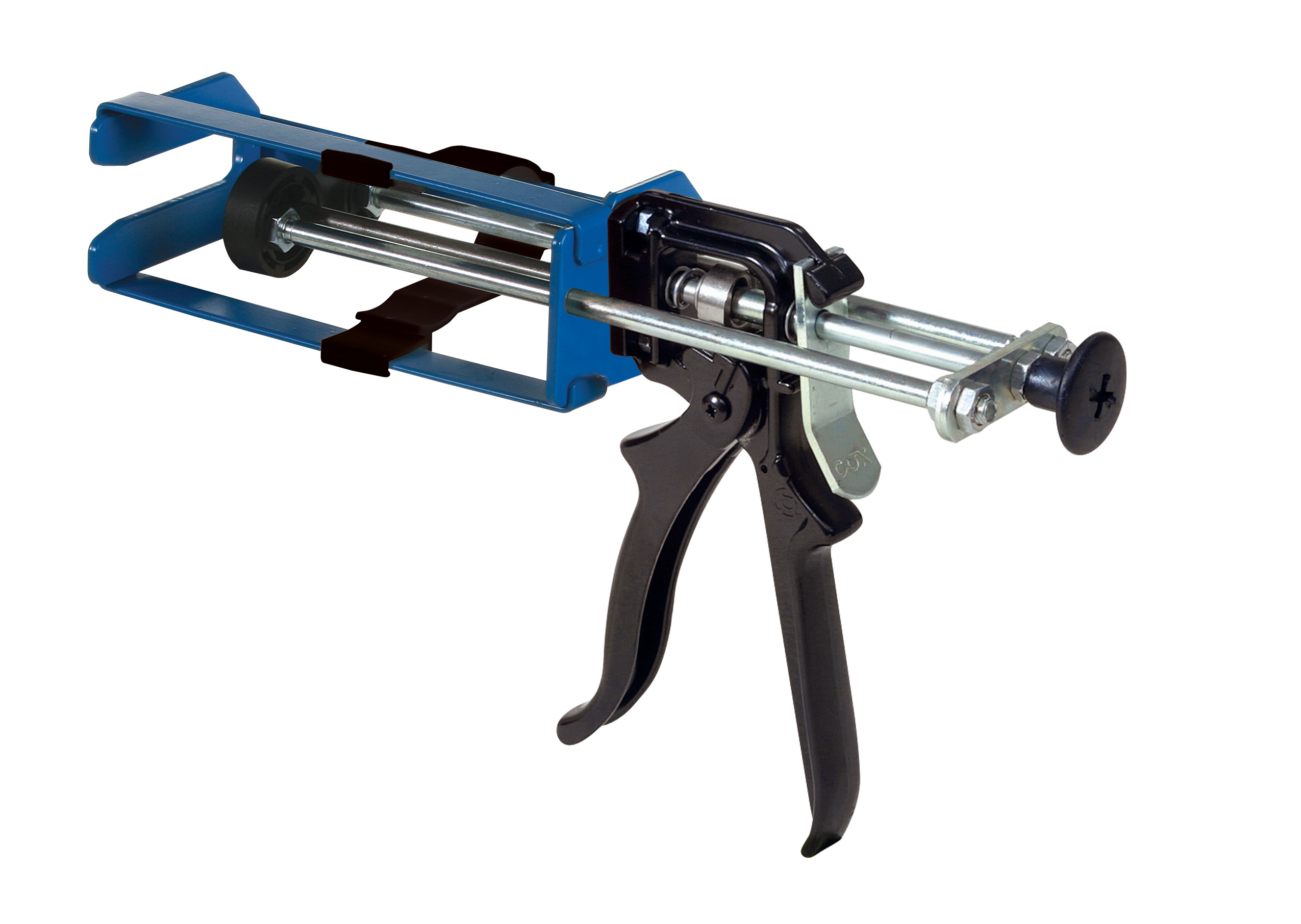

Cox VBM 200 MR Manual Two-Part Dispenser

Description

VBM 200 MR is a manual two-component dispenser for 200 mL cartridges used with low and medium viscosity adhesives and sealants. The tool gives technicians a controlled way to run 1:1, 2:1, 4:1, or 10:1 packs when the matching plunger set and static mixer are installed.

VBM 200 MR Benefits

• Manual drive works on benches, repair trucks, and installation sites without compressed air.
• Side-loading frame helps operators place cartridges accurately before the bead starts.
• Twist and lock plunger system supports multiple cartridge ratios.
• Wear compensation device helps keep the drive action consistent during use.
• Compact 200 mL capacity is practical for small assemblies, repairs, and prototype work.

Use this dispenser where a large pneumatic tool would be unnecessary or hard to move around the job. It is a good fit for maintenance teams that need repeatable two-part adhesive placement without bringing an air line to the part.

VBM 200 MR Applications

• Dispensing 200 mL two-part adhesive cartridges.
• Field repairs with ratio-specific epoxy, acrylic, or urethane packs.
• Countertop, marine, sign, and general manufacturing bonding jobs.
• Prototype benches that change materials often.
• Backup dispensing when a powered applicator is not available.

Setup and Use

Check the cartridge ratio before loading the tool. Seat the pack squarely in the frame, install the matching plunger set, and attach the correct static mixer. Advance both plungers until material reaches the mixer evenly, then purge according to the adhesive maker instructions.

COX describes this family as manual two-component 200 mL cartridge dispensers, and Mixtips lists the DM2C 200-MR-R18-111 part number with 200 mL capacity, multiple ratios, and medium-viscosity use. Review current product-family information from COX Dispensers before standardizing a tool setup.

Ordering Help

For related dispensers and static mixers, browse Chemical Concepts dispensers, mixers, and nozzles. For help confirming ratio, mixer fit, or replacement parts, call (800) 220-1966 or email [email protected].
