Cox VBM 200X 400 mL 1:1 Manual Dispenser

Description

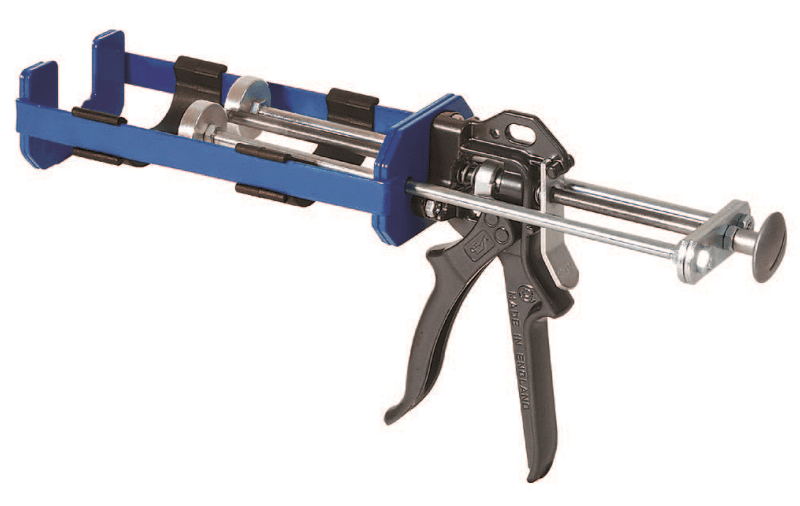

Cox M200X dispenser is a manual two-component cartridge gun for 400 mL, 1:1 side-by-side adhesive cartridges. The Chemical Concepts record lists Cox part DM2C400-01-R25-022, also identified in dispensing references as the M200X, for high-viscosity materials that need a high mechanical advantage hand tool.

Cox M200X dispenser Applications

• Dispensing 400 mL 1:1 epoxy, urethane, acrylic, or silicone adhesive cartridges.
• Field and shop bonding where compressed air is not available or not preferred.
• Repair kits that need a stronger hand tool than a light-duty cartridge frame.
• Top-load cartridge work where support straps help keep the package seated.
• Maintenance spares for teams using COX VBM 200X or M200X style equipment.

COX lists the VBM 400X manual range for 400 mL cartridges with 4.5 kN maximum thrust and a 25:1 mechanical advantage ratio. Exact cartridge fit still depends on the package family, ratio, and static mixer. Confirm all three before pulling material into production or sending the gun to a field crew.

Cox M200X dispenser Setup Notes

Inspect the cartridge cradle, support straps, catch plate, and plunger faces before each job. Load the cartridge squarely, attach the approved static mixer, then purge a small bead until both sides move evenly. Release pressure between beads to reduce material run-on and wipe away uncured adhesive before it hardens on the frame.

Manual high-ratio guns are often used where a job is too small for air equipment but too heavy for a light hand frame. Keep the tool clean, store it with the matching mixers, and replace worn parts before uneven plunger travel shows up as poor mix quality.

For matching mixers and cartridge tools, browse Chemical Concepts dispensers, mixers, and nozzles. COX manufacturer information is available from COX Dispensers.

For help confirming 400 mL cartridge fit, ratio, or mixer selection, call (800) 220-1966 or email [email protected].
