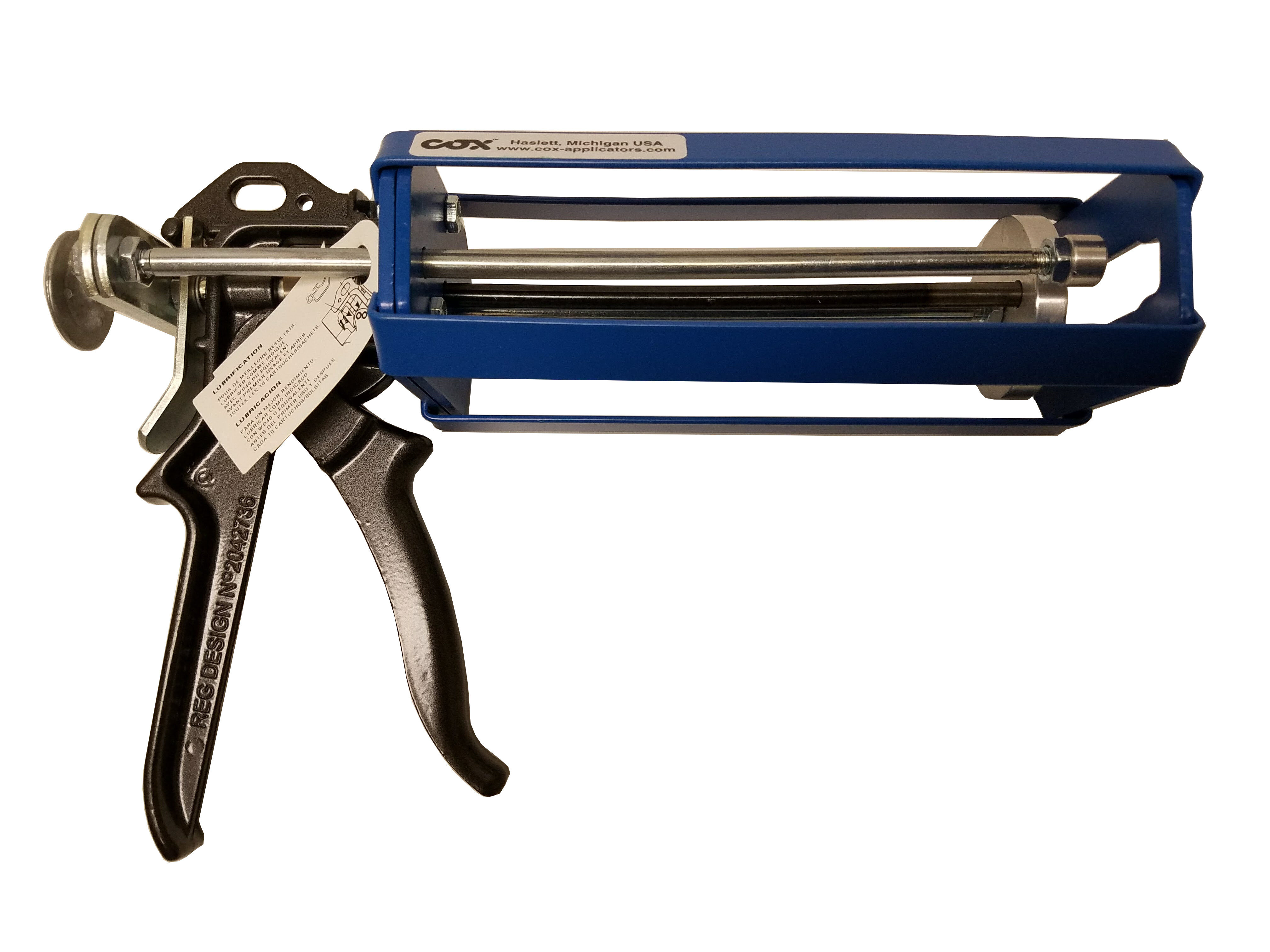

COX VBM 400X MR 400 mL Multi-Ratio Manual Dispenser Kit

Description

VBM 400X MR is a COX manual two-component dispenser for 400 mL cartridges used with industrial adhesives and sealants. This kit supports multi-ratio cartridge work, including the 1:1 and 2:1 setup shown in the Chemical Concepts record, while the COX product family also covers additional ratios when the correct parts are installed.

VBM 400X MR Benefits

• Manual high-thrust frame handles medium and high viscosity two-part materials.
• 400 mL cartridge capacity fits common dual cartridge adhesive systems.
• Multi-ratio kit helps shops keep one tool platform for several cartridge formats.
• Side-loading frame speeds cartridge placement and changeover.
• Mechanical dispenser design works where compressed air is not available.

This dispenser is a practical choice for field crews, countertop shops, sign builders, repair teams, and production benches that need controlled two-part adhesive output without a pneumatic line. Keep ratio parts, static mixers, and cartridges labeled together so the tool setup matches the adhesive system before each job.

Where VBM 400X MR Fits

• Dispensing 400 mL epoxy, acrylic, urethane, and silicone cartridge systems.
• Bonding brackets, panels, countertop hardware, composite parts, and trim.
• Repair work where a manual tool is easier to carry than air-powered equipment.
• Prototype and small production jobs using multiple cartridge ratios.
• Maintenance teams that need a spare two-component dispenser for mixed adhesives.

Setup and Use

Confirm the cartridge size, ratio, and static mixer before loading. Purge both sides until material exits evenly, then attach the mixer and discard the first short bead when the adhesive procedure calls for it. Do not force a cartridge through the wrong ratio setup.

Clean the plungers and frame after use. Dried material on the cartridge seats can cause uneven force and poor mixing on the next job.

Technical Notes

COX lists this model as a 400 mL two-component manual dispenser with a 25:1 mechanical advantage and support for several cartridge ratios. Review current manufacturer information from COX Dispensers before approving a plant standard.
