Description

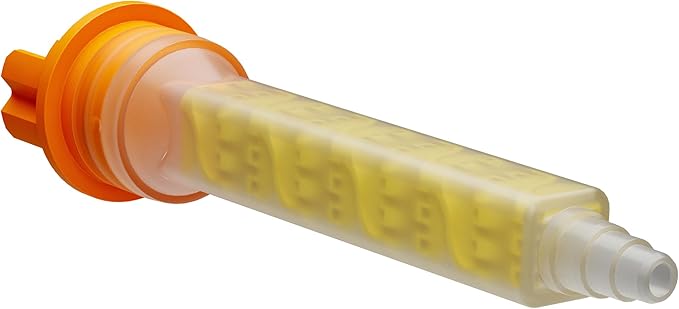

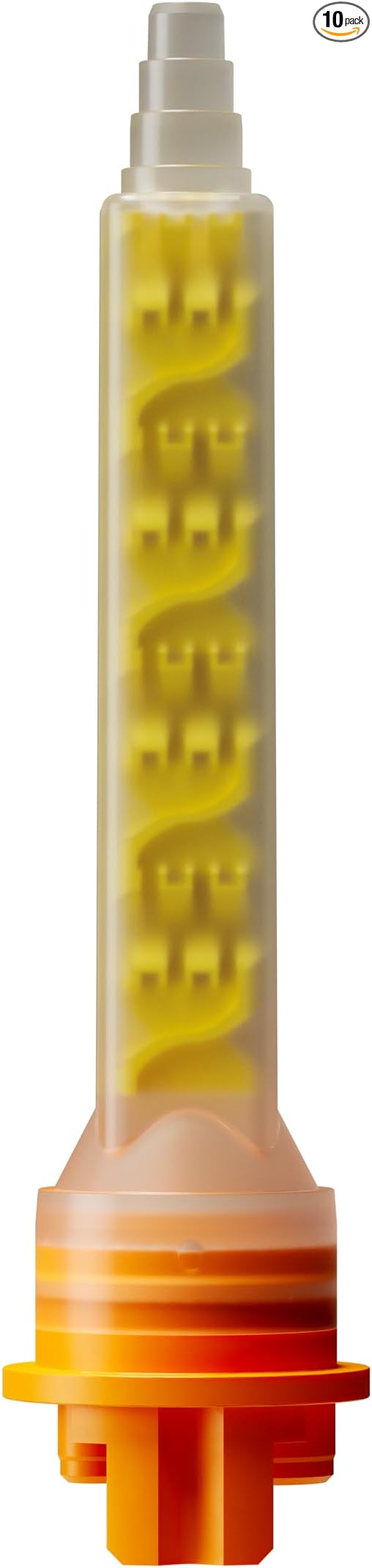

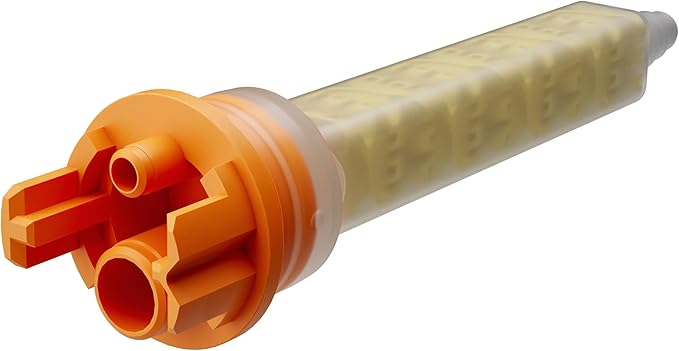

The Xemex X2-FZ8-8S Low-Waste Static Mixer is designed for dispensing high-ratio two-part adhesives using standard F-system cartridges while minimizing adhesive waste during mixing.
Using Xemex’s patented internal mixing geometry, eight mixing elements can achieve mixing performance comparable to much longer traditional mixers. The shorter mixer body reduces retained adhesive volume while maintaining reliable mixing performance.
The 8.7 mm internal diameter supports higher material flow rates for production dispensing. A stepped outlet tip allows trimming the nozzle to adjust bead size for controlled adhesive placement.
This mixer is compatible with common industrial adhesive chemistries including epoxies, methacrylates, urethanes, and silicones and is optimized for 4:1 and 10:1 adhesive systems.
Static Mixer for 4:1 and 10:1 Adhesive Systems
The Xemex X2-FZ8-8S is specifically designed for high-ratio adhesive systems, making it a reliable static mixer for 4:1 and 10:1 two-part adhesives used in manufacturing and industrial bonding applications.
The mixer’s optimized internal geometry maintains consistent component blending across these higher mix ratios while reducing adhesive waste inside the mixer body. This makes it well suited for structural adhesives, potting materials, and other industrial formulations that require precise ratio control during dispensing.
See How Xemex Low-Waste Mixers Work
Understanding how Xemex mixers reduce adhesive waste is easier when you see the internal mixing technology in action.
Xemex mixers use optimized internal geometry to achieve complete mixing with significantly fewer elements, reducing purge waste and minimizing adhesive retained inside the mixer.
Competitive Advantage: Lower Retained Adhesive Waste
Compared to traditional high-ratio mixers, the Xemex X2-FZ8-8S significantly reduces adhesive waste inside the mixer body.
| Mixer Model | Retained Waste Volume |
|---|---|
| MFHX 10-18T | 12.96 mL |
| MFQX 08-24T | 8.86 mL |
| MFHX 08-18T | 7.28 mL |
| Xemex X2-FZ8-8S | 5.0 mL |
Lower retained volume means less adhesive lost during purge and lower overall material cost during production runs.
Key Product Details
| Property | Value |
|---|---|
| Product | Xemex X2-FZ8-8S Static Mixer |
| Connection Style | F-System |
| Outlet Tip | Stepped |
| Insert Material | Polyester |
| Housing Material | Polypropylene |
| Insert Assembly | 8 elements |
| Inner Diameter | 8.7 mm (0.34″) |
| Total Length | 101.2 mm (3.98″) |
| Retained Volume | 5.0 mL |
| Compatible Ratios | 4:1, 10:1 |
| Adhesives Served | Epoxies, Methacrylates, Urethanes, Silicones |
Performance and Use
• Patented Xemex mixing geometry provides reliable mixing with fewer elements
• Reduced mixer length helps minimize adhesive retained inside the nozzle
• 8.7 mm internal diameter supports higher material throughput
• Designed specifically for high-ratio 4:1 and 10:1 adhesive systems
• Stepped outlet tip allows bead size adjustment by trimming the nozzle
• Suitable for production dispensing environments and automated systems
Installation and Handling Notes
• Designed for standard F-system high-ratio adhesive cartridges
• Stepped outlet tip allows trimming for application-specific bead sizes
• Compatible with manual, pneumatic, and automated dispensing systems
• Replace mixer when adhesive begins curing inside the nozzle
Common Applications
• Structural adhesive bonding
• Potting and encapsulation
• Automotive and aerospace component assembly
• Panel bonding and composite assembly
• Industrial adhesive dispensing
Customer Feedback
“The new Xemex mixer worked fantastic with Dow 3-4207. Greatly reduces wasted potting material and also mixed the 2 parts very well. This is exactly what we needed.”
Direct Customer Quote
“My customer had sporadic curing issues running EP965LVLX with a .187 x 48 helical mixer they were using. They dispensed test patterns with Xemex and got a complete cure. They told me these mixing sticks work great.”
Sales Representative (Eastern US)
“My customer tested the new Xemex mixer with an expensive thermally conductive paste. It was easy to see the cost savings from wasting less material in the mixer compared to the helical mixer they were previously using. They were so impressed they ordered 50 on the spot.”
Sales Representative (Southern US)
