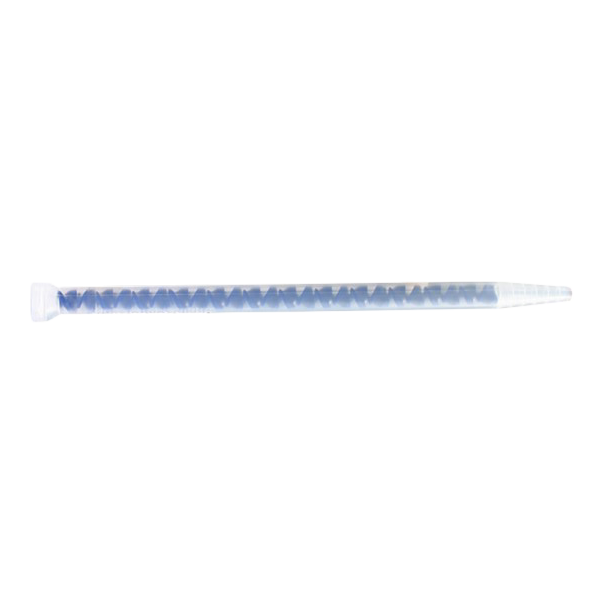

LORD 404 CX Blue Static Mixing Nozzle, 3/8 In x 9-1/2 In

Description

LORD 404 CX is a blue disposable static mixing nozzle for two-component adhesive cartridges that need a 3/8 inch diameter, 9-1/2 inch length, and 24 mixing elements. It is used with standard cartridges to mix adhesive as the material travels through the nozzle, then it is discarded after the work window closes.

LORD 404 CX Benefits

• 24 internal elements help fold and recombine two-part materials before the bead reaches the outlet.
• 3/8 inch body diameter and 9-1/2 inch length match common standard-cartridge mixer requirements.
• Blue color helps crews identify the mixer style at the bench or in kit stock.
• Disposable construction reduces cleanup and cross-contamination between adhesive jobs.
• Case-friendly ordering supports production cells that change mixers frequently.

This mixer is a small part with a direct effect on bond quality. A fresh nozzle helps keep ratio and mix uniform, especially when the adhesive has fillers, short work life, or visible streaking risk.

LORD 404 CX Applications

• Two-part adhesive dispensing from compatible standard cartridges.
• Structural bonding jobs using LORD or Parker adhesive systems that specify this mixer.
• Assembly benches where operators need repeatable mixed beads and quick nozzle changes.
• Repair work where cured material inside an old mixer would raise back pressure.
• Kitting programs that pair cartridges, plungers, and mixers for field installation.

Setup And Use

Confirm cartridge style, mix ratio, mixer connection, element count, and outlet size before ordering. After attaching the nozzle, purge material until color and texture are uniform from the outlet. Discard the purge and begin work only after both sides of the cartridge are flowing correctly.

Replace the nozzle whenever mixed adhesive starts to cure inside the elements. Rising trigger force, streaks, or a split bead are signs to stop and install a new mixer.

Technical Details And Documentation

Chemical Concepts and LORD selector references identify part 3001179 as a 404 CX blue static mixer measuring 3/8 inch by 9-1/2 inch with 24 elements, used with standard cartridges. Review current adhesive-system information from Parker LORD before production use.

Ordering Help

For related mixers and cartridge tools, browse Chemical Concepts dispensers, mixers, and nozzles. For help matching mixer geometry to a cartridge or adhesive, call (800) 220-1966 or email [email protected].
