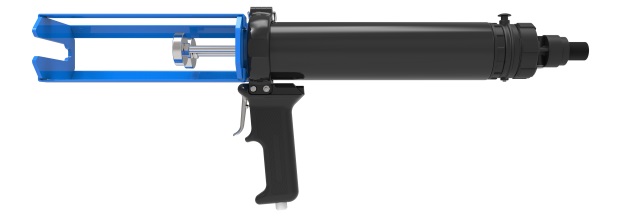

Cox AirFlow 1 VBA 400A 400mL Pneumatic Dispenser Kit (S1 Air System)

Description

AirFlow 1 VBA 400A is a 400mL pneumatic cartridge dispenser kit from Cox built around the Series 1 high-power air system. The kit handles 200mL and 400mL cartridges and includes the mix-ratio components for 1:1, 2:1, 4:1, and 10:1 work, giving shops one tool to run across most two-part adhesive and sealant programs without keeping multiple dedicated guns on the bench.

What the AirFlow 1 VBA 400A kit includes

• 400mL VBA-style pneumatic dispenser body sized for 200mL and 400mL Total System cartridges.
• Mix-ratio components for 1:1, 2:1, 4:1, and 10:1 cartridge formats included in the kit.
• Series 1 air system fittings for shops standardized on the Cox S1 platform.
• High-power pneumatic thrust for stiff chemistries and longer continuous beads.
• Cox part 159403 with the A400HPMR manufacturer reference for replacement ordering.

The AirFlow 1 VBA 400A platform suits production lines and bonding cells running structural two-part adhesives where manual guns can’t sustain the bead count per shift. Pneumatic drive holds bead size consistent across a long workpiece, and the four-ratio kit configuration means a shop running mixed chemistries (epoxy, urethane, methacrylate) can standardize on a single dispenser body and swap mix components instead of swapping guns. The Series 1 air system fits plants already running S1 manifold fittings.

Where the AirFlow 1 VBA 400A fits in plant work

• Structural bonding stations running 200mL or 400mL two-part cartridges in any of the four supported mix ratios.
• Assembly cells dispensing into fixtures that demand consistent bead size and flow.
• Shops already standardized on the Cox Series 1 air system manifold and fittings.
• Production environments that need pneumatic thrust on stiffer chemistries or cold cartridges.
• Bonding operations where operator fatigue from manual guns is slowing throughput.

Set the regulator to the cartridge chemistry rather than to the gun’s maximum, and pick the static mixer the adhesive vendor specifies for the bead size. Cox publishes recommended air pressures by chemistry family, and following those reduces blowback and wasted material. Chemical Concepts also carries the matching cartridges, mixers, and consumables in dispensers, mixers, nozzles. For manufacturer information on the AirFlow VBA platform, visit Cox Dispensers.

Need help confirming whether this kit matches your cartridge format or air system? Call (800) 220-1966 or email [email protected].
