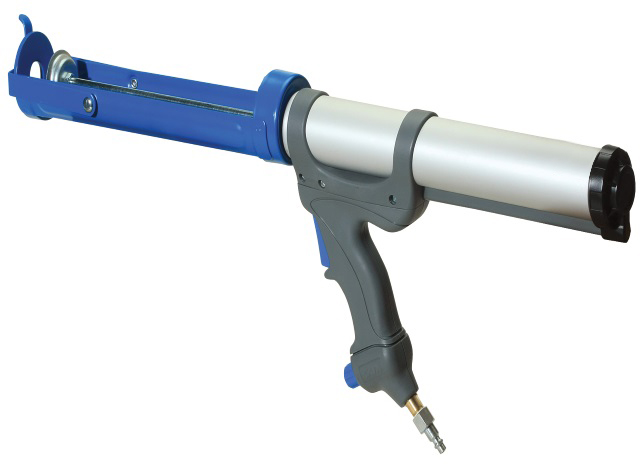

COX AirFlow 3 Quart Extension 29 Oz Pneumatic Dispenser

Description

AirFlow 3 Extension is the extended-barrel version of the COX AirFlow 3 Quart pneumatic cartridge dispenser for 946 mL (29 oz) materials. It is intended for low to medium viscosity sealants and adhesives where reach, reduced bending, and steady air-powered output matter on the job.

AirFlow 3 Extension Benefits

• Extended barrel helps operators reach into deeper joints or awkward work areas.
• 29 oz cartridge capacity supports longer runs with fewer material changes.
• 337 lbf maximum thrust gives controlled feed for many quart cartridge sealants.
• 100 psi maximum pneumatic pressure works with regulated shop-air systems.
• Flip-up front plate helps load the cartridge without fighting the extended frame.

Use this version when a standard quart dispenser makes the operator bend, stretch, or work too close to the joint. It keeps the same general AirFlow 3 Quart capacity while adding reach for field, shop, and installation tasks.

AirFlow 3 Extension Applications

• Sealing recessed joints with 29 oz adhesive or sealant cartridges.
• Panel, glazing, and enclosure work where reach improves operator stance.
• Maintenance jobs around equipment, frames, or fixtures with limited access.
• Production bead work where compressed air improves output consistency.
• Installation crews that need a quart cartridge dispenser with longer reach.

Setup And Use

Confirm that the longer barrel clears nearby fixtures before starting the bead. Load the cartridge fully, close the front plate, and test air pressure away from the finished surface. Keep the tool aligned with the joint so the extended frame does not twist the nozzle.

Bleed pressure before cartridge changes and clean material from the front plate after use. If reach is the main concern, compare the standard and extended versions at the workstation so operators can choose the tool that gives the best control.

Technical Details And Documentation

COX range data for the AirFlow 3 Quart family lists 946 mL cartridge capacity, 337 lbf maximum thrust, and 6.8 bar or 100 psi pressure. Supporting product data for the 63002-UP version identifies the extended barrel and flip-up front plate for easier cartridge loading. Review current information from COX dispensers before adding the tool to a standard kit.
