Description
TrimLok™ UV3206 LV Starter Kit is a complete UV-curable adhesive bonding kit designed for trimless letter fabrication, trim cap bonding, and precision plastic assembly applications. The kit includes TrimLok™ UV3206 LV low-viscosity methacrylate adhesive, a UV curing light required for adhesive activation, and UV safety glasses for operator protection.
Kit Includes:

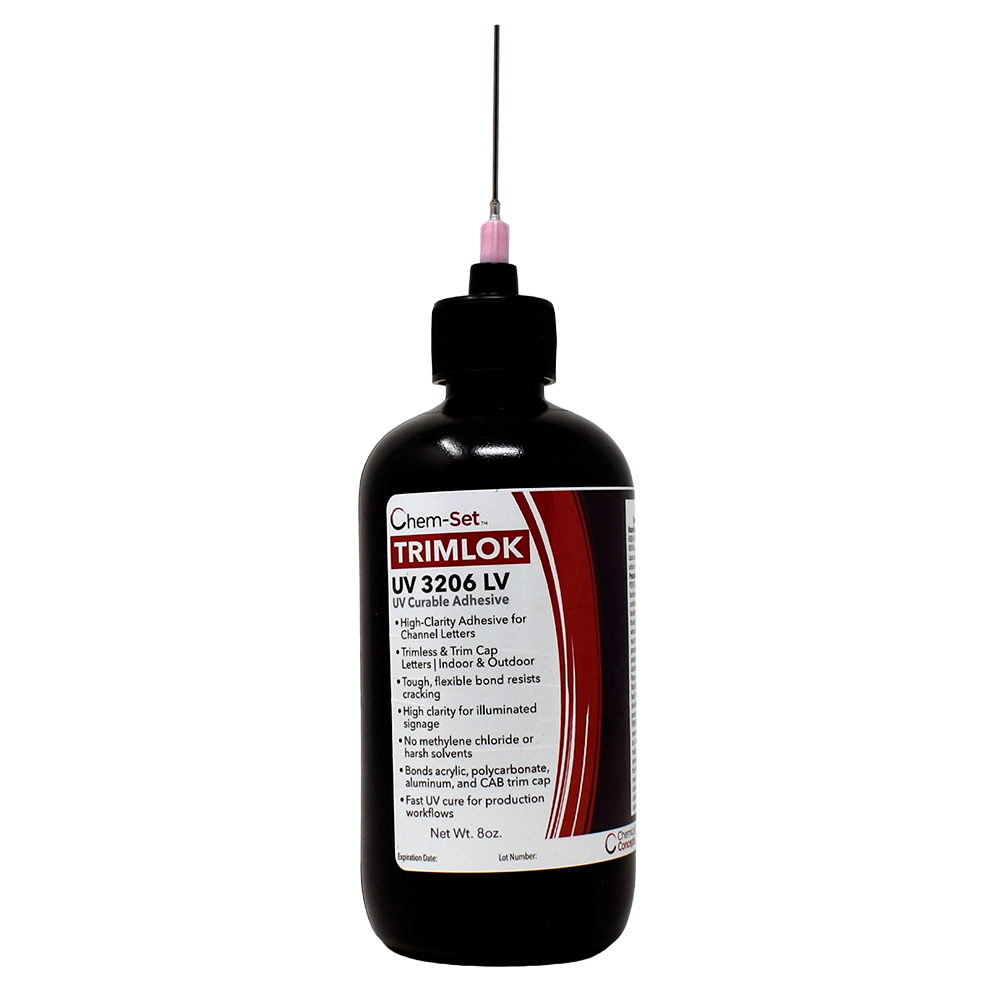

- 1x TrimLok™ UV3206 LV – 8 oz

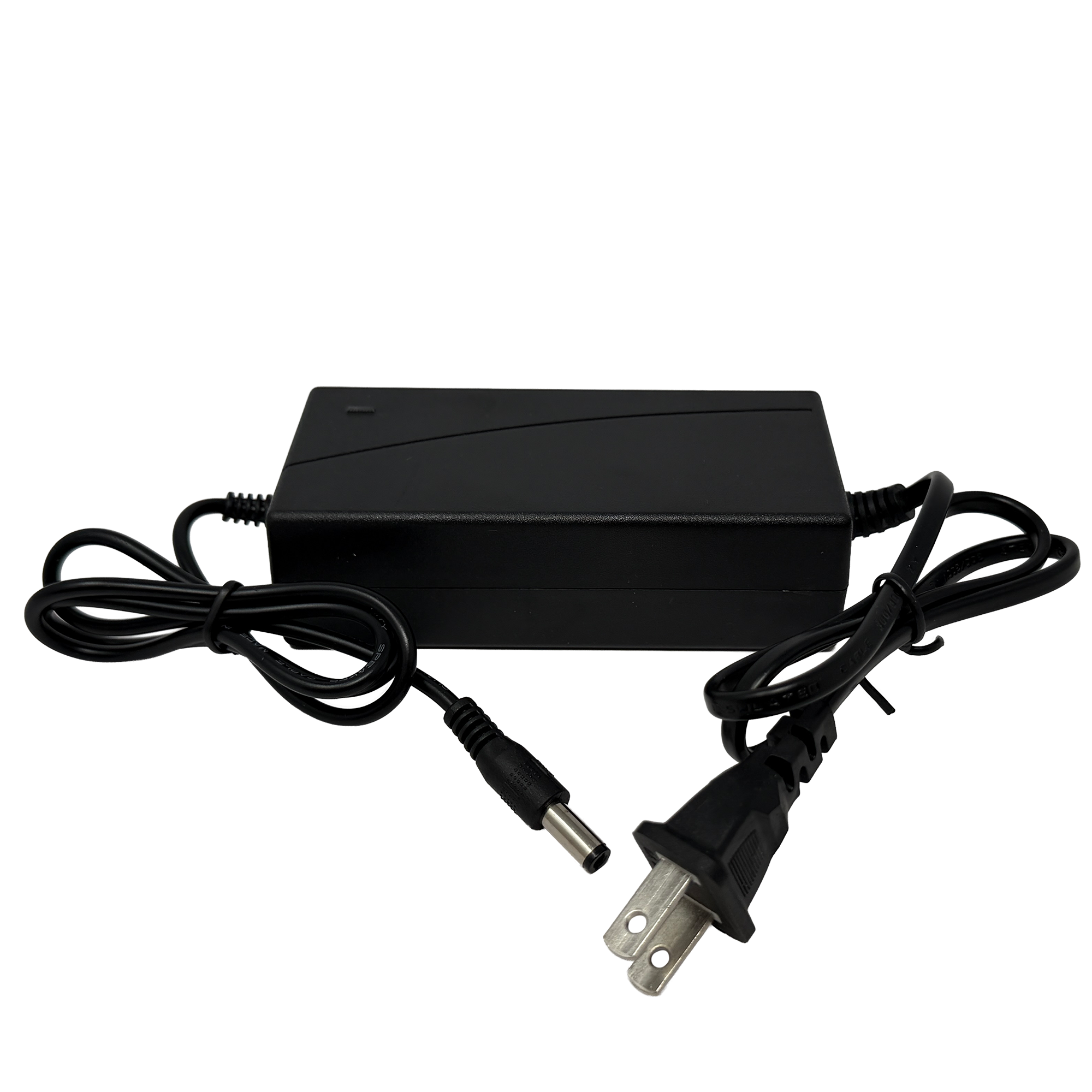

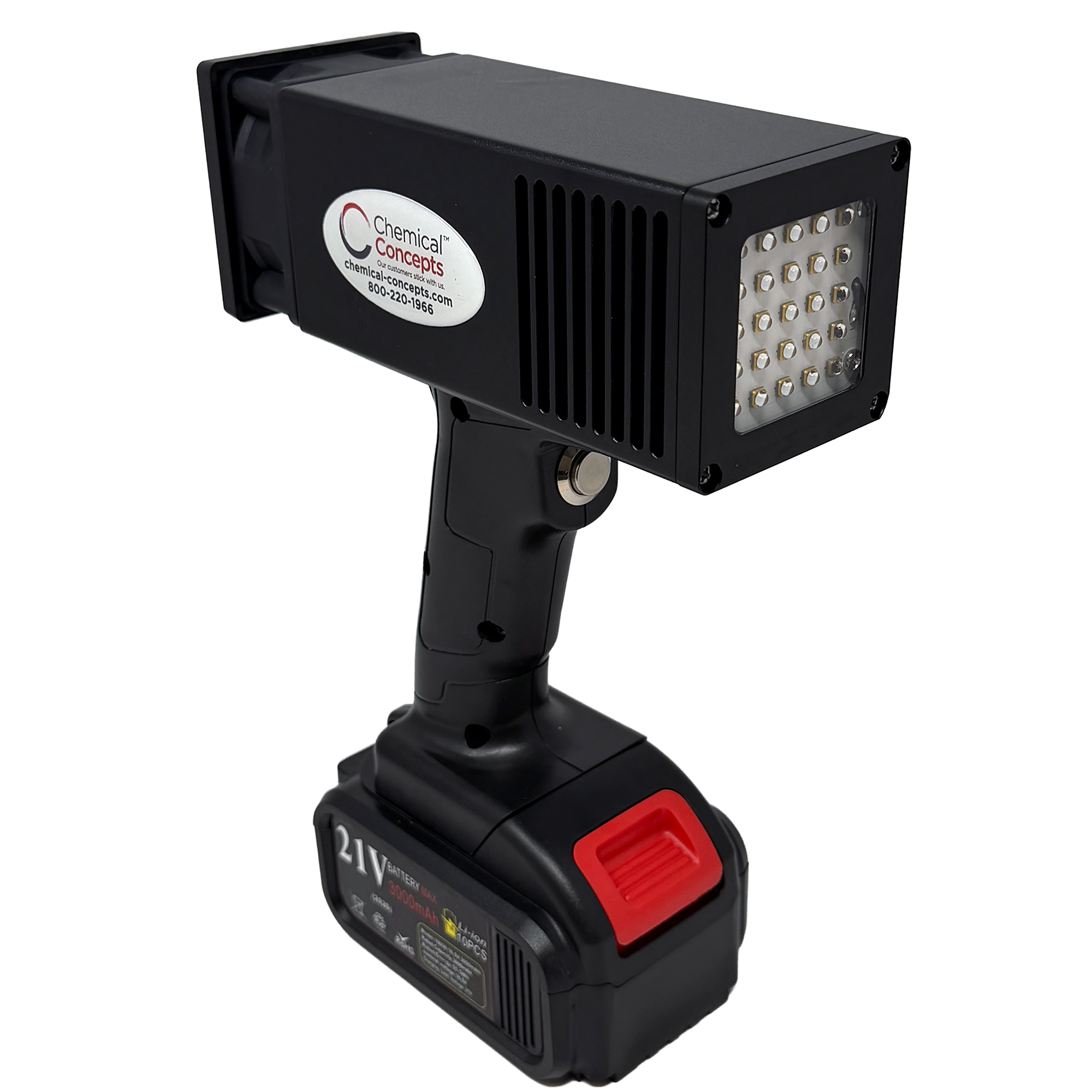

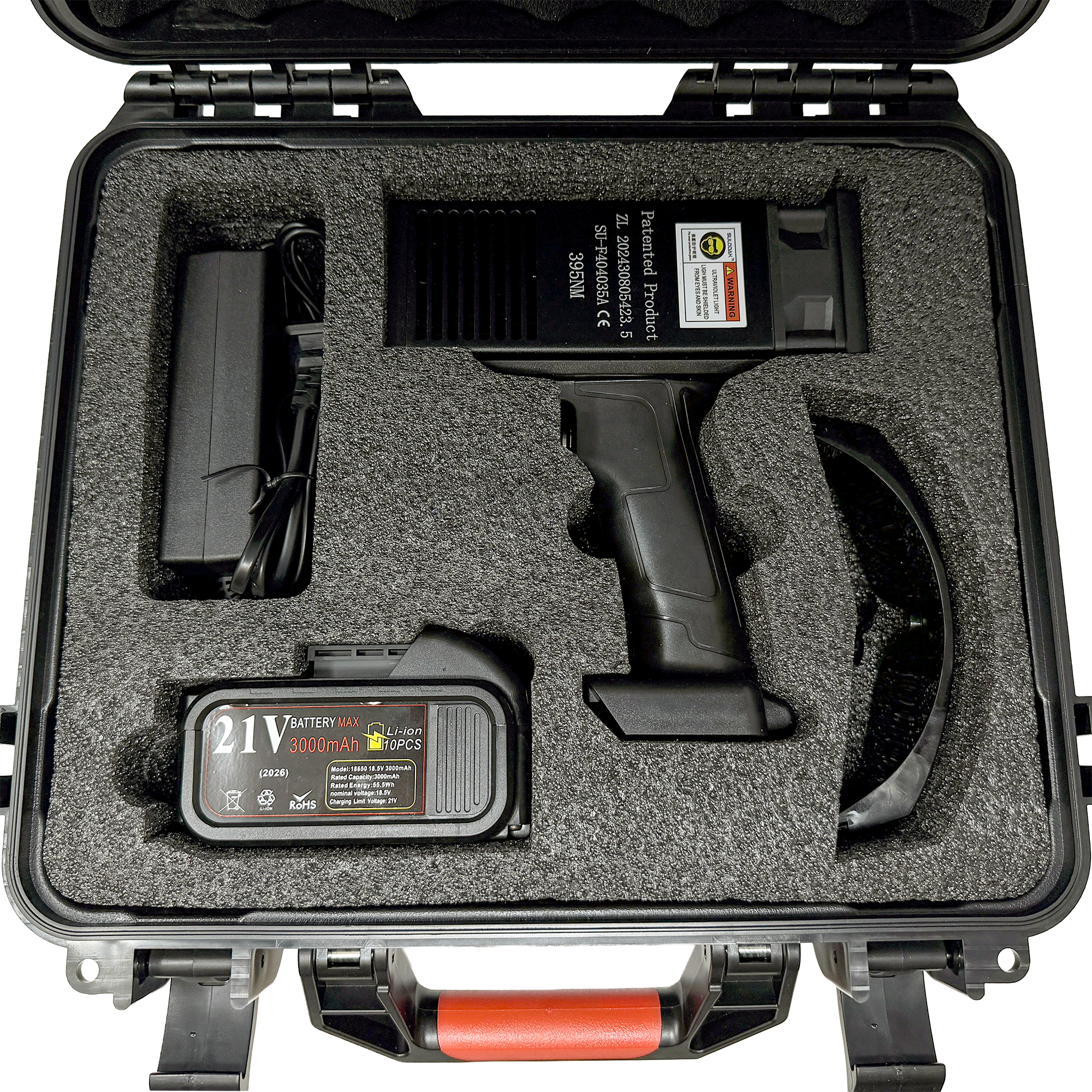

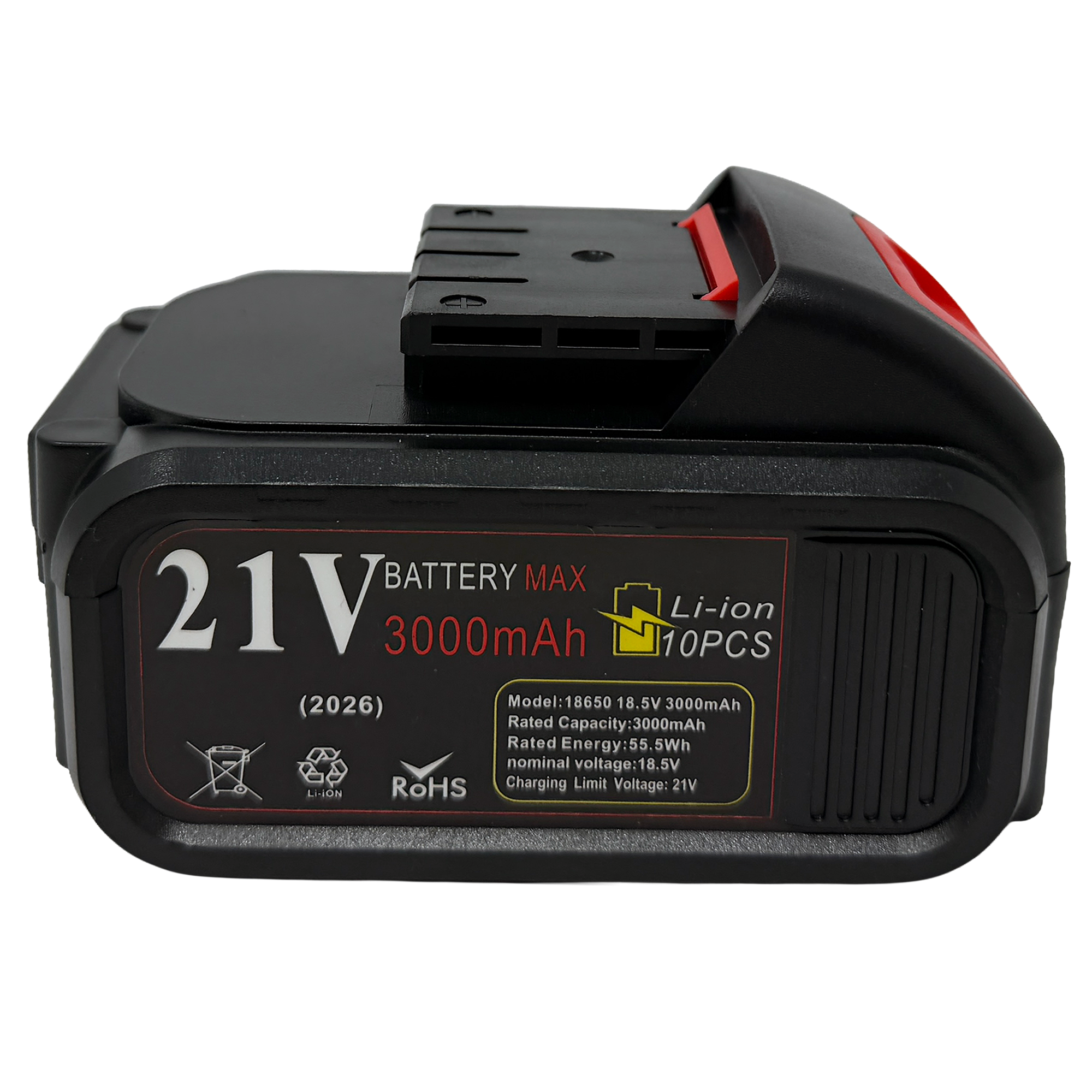

- 1x Gun-Style UV Light (includes case, charger, tripod with mounting box)

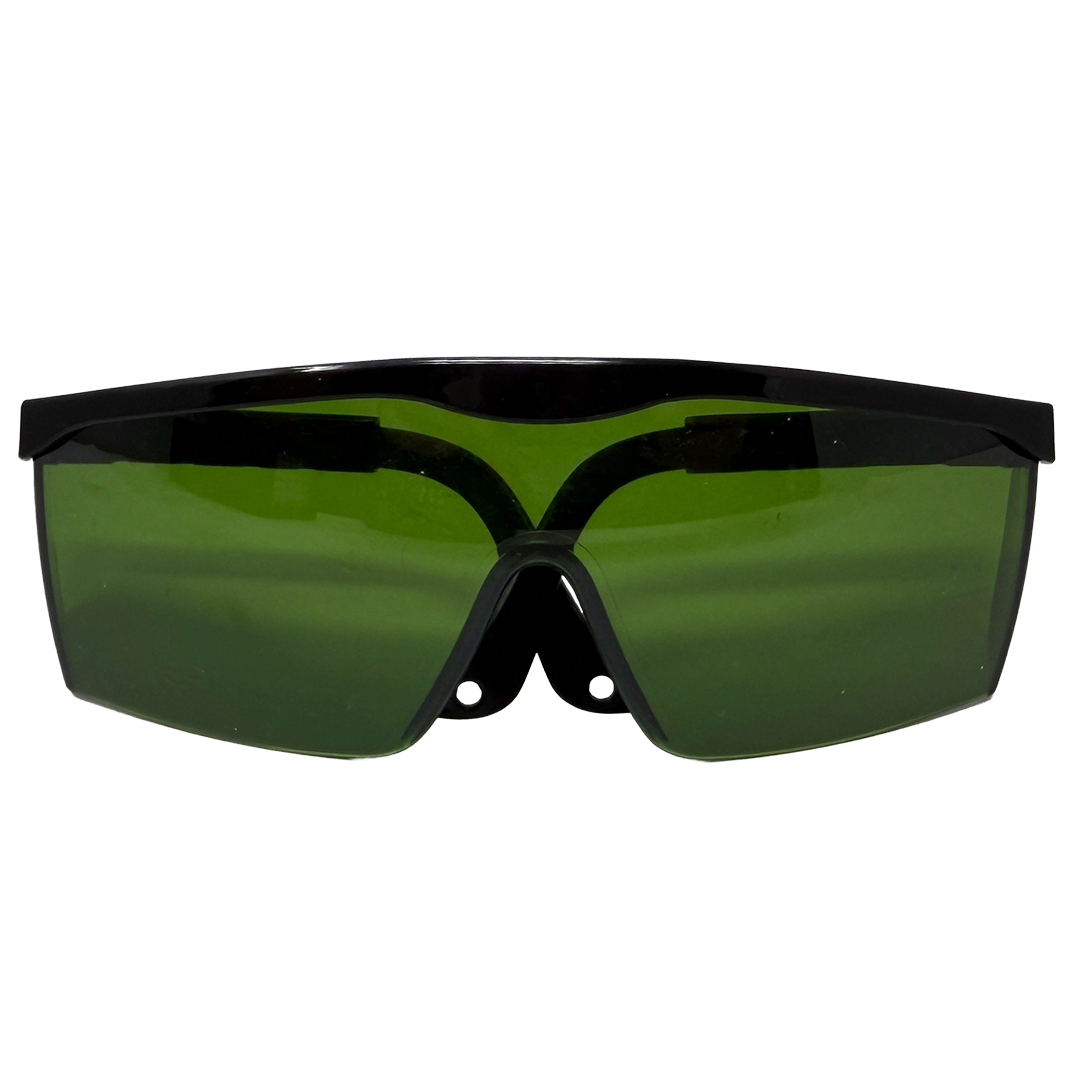

- 1x UV Glasses
Key Features
- Complete starter kit with adhesive, UV curing light, and protective UV glasses
- Ultra-low viscosity adhesive designed for capillary wicking into narrow joints and seams
- UV-curable system for rapid fixture and handling strength
- Clear, colorless adhesive for clean bond line appearance
- Excellent adhesion to acrylic, polycarbonate, PVC, aluminum, and signage materials
- Suitable for trimless letter construction and trim cap bonding applications
- 100% solids formulation with no solvents
- Methylene Chloride Free
Technical Specifications
| Specification | Value |
|---|---|
| Chemical Composition | Methacrylate ester |
| Appearance | Clear, colourless |
| Viscosity @ 25°C | 50-100 mPa s (cP) |
| Specific Gravity | 1.10 |
| Cure Wavelength | 365-420 nm |
| Fixture Time – Polycarbonate | 25-30 seconds |
| Fixture Time – Rigid PVC | 5-7 seconds |
| Fixture Time – PMMA | 4-5 seconds |
| Tensile Strength | 15-20 N/mm² (2200 psi) |
| Elongation | 100-150% |
| Hardness | 50-65 Shore D |
| Storage Temperature | 5-25°C (41-77°F) |
Compatible Substrates and Materials
- Acrylic (PMMA)
- Polycarbonate
- Rigid PVC
- Aluminum extrusions
- Trim caps
- Plastic assemblies requiring capillary-action bonding
Application Guidance
Ensure bonding surfaces are clean and free from contaminants before assembly. Position components and apply TrimLok™ UV3206 LV so the adhesive can wick into the joint through capillary action. Hold parts firmly in place and expose the bond line to a suitable UV light source within the 365-420 nm wavelength range until fixture strength is achieved.
Typical Use Cases
- Trimless letter fabrication
- Trim cap to acrylic face bonding
- Aluminum extrusion to acrylic face bonding
- Backlit and front-lit channel letters
- Architectural signage manufacturing
- Retail signage production
- Tight-tolerance plastic assemblies
Target Industries and Buyers
- Sign manufacturers
- Channel letter fabricators
- Architectural signage companies
- Retail display manufacturers
- Plastic fabrication shops
- OEM assembly operations
Performance Advantages
TrimLok™ UV3206 LV combines ultra-low viscosity with UV-curing technology, allowing the adhesive to penetrate narrow gaps and seams that are difficult to access with higher-viscosity products. Its rapid fixture capability helps improve assembly efficiency while producing clean, low-visibility bond lines in trimless letter and trim cap applications.
Common Questions
Q: What is included in the TrimLok™ UV3206 LV Starter Kit?
A: The kit includes TrimLok™ UV3206 LV adhesive, a UV curing light, and UV safety glasses.
Q: What type of adhesive is UV3206 LV?
A: It is a UV-curable methacrylate ester adhesive.
Q: What materials can it bond?
A: It is designed for acrylic, polycarbonate, rigid PVC, aluminum, and common signage materials.
Q: Does the adhesive require UV light to cure?
A: Yes. UV exposure within the 365-420 nm wavelength range is required for curing.
Q: Is the adhesive clear?
A: Yes. The adhesive is clear and colorless.
Q: What makes it useful for trimless letters?
A: Its low viscosity allows it to wick into tight seams and interfaces through capillary action.
