Description
Advanced Channel Letter Fabrication
Chem-Set™ TrimLok™ UV3206 LV
Structural, crystal-clear UV adhesive designed for exterior trim cap and trimless channel letters.
TrimLok™ UV3206 LV is an industrial-grade, UV-curable adhesive engineered specifically for the structural demands of modern sign fabrication. Its ultra-low viscosity allows it to aggressively wick into extremely tight bond lines and near-butt joints through capillary action.
This 100% solids, solvent-free formula cleanly fixtures acrylic faces to polycarbonate trim caps and aluminum extrusions. Delivering immense structural strength and an optically clear, shadow-free bond line, it is the ideal foundation for building large-format, exterior, and backlit channel letters built to withstand the elements.
The Problem with Traditional Glues
Older adhesives struggle with the tight tolerances and outdoor demands of modern channel letters.
- Cyanoacrylates (CA): Too brittle to handle thermal expansion, not rated for long-term outdoor exposure, and can yellow over time.
- Solvent Cements: Struggle to bond polycarbonate trim cap effectively and deliver inconsistent curing strength.
- Standard 2-Part Urethanes: Slow cure times reduce production speed and struggle to penetrate thin seams.
The TrimLok™ Advantage
UV3206 LV is engineered for structural outdoor performance and seamless finishes.
- Capillary Action: 50-100 cP viscosity wicks naturally into micro-gaps on trim caps and aluminum returns without messy squeeze-out.
- Invisible Bonds: High-clarity adhesive creates no shadowing, making it perfect for illuminated and backlit channel letters.
- Instant UV Fixture: Cures rapidly under UV light, completely eliminating long clamping times.
- Exterior Structural Strength: Serves as an aggressive standalone trim cap adhesive or the ultimate fixturing base for structural exterior MMA seams.
See TrimLok™ in Action

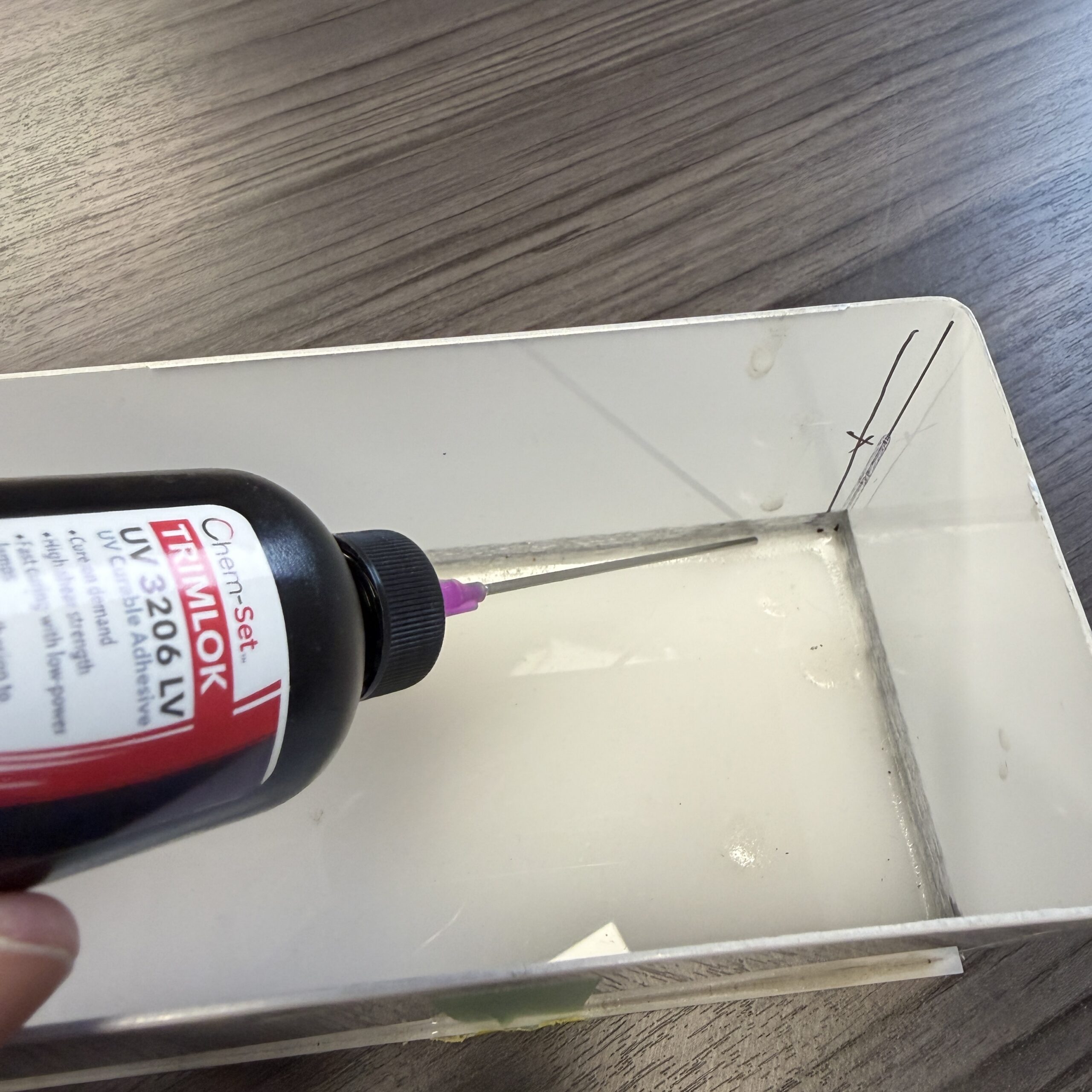

Watch how easily UV3206 LV wicks into tight channel letter seams and fixtures instantly under UV light.
Purpose-Built Channel Letter Workflows

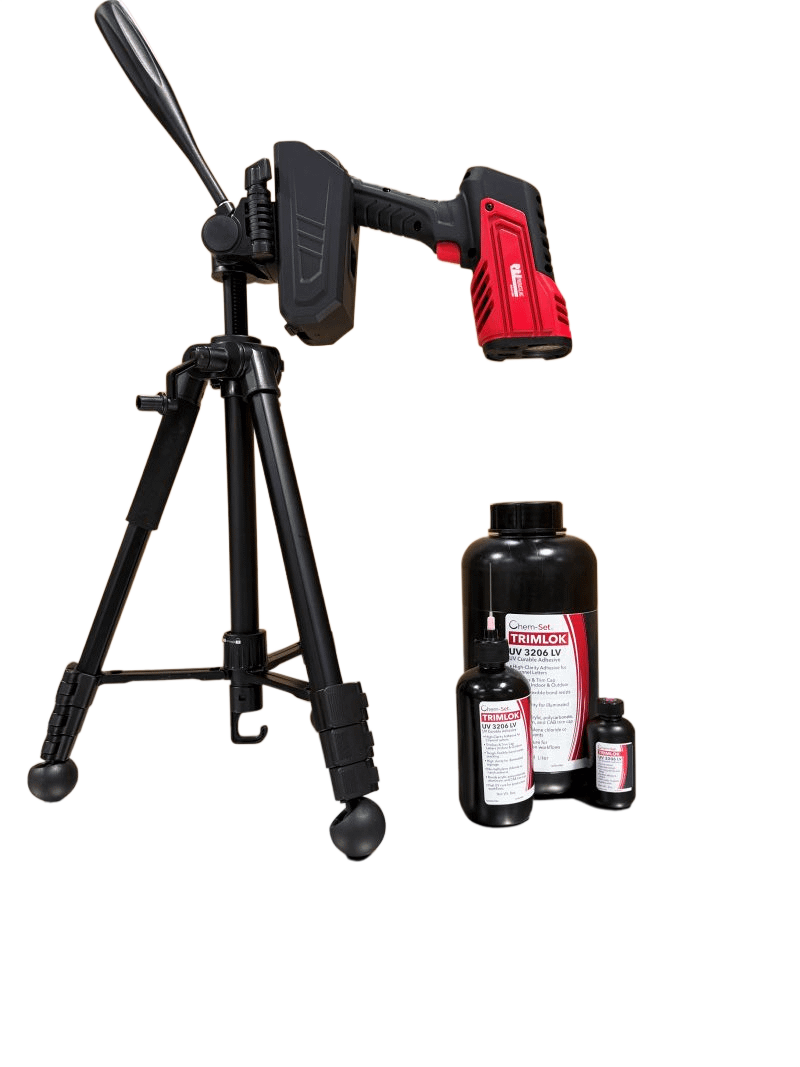

UV Light Requirements
UV light quality directly dictates your cure speed, fixture time, and consistency.
- Required Wavelength: 365–420 nm.
- Recommended Wavelength: 395 nm LED Spot Cure systems provide the fastest, most consistent production results (often curing in 5-15 seconds).
- Shop Tip: If cure speed feels slow or inconsistent, check your UV light output and wavelength before changing the adhesive or process.
Compatible Substrates
UV3206 LV bonds aggressively to the core materials used in modern sign fabrication.
- Polycarbonate
- Acrylic and PMMA
- Butyrate trim cap (CAB)
- Aluminum Extrusions / Returns
- Steel and general metals
Technical Specifications
| Chemical Composition | Methacrylate Ester |
| Appearance | Clear, Colorless |
| Viscosity (@ 25°C) | 50 – 100 mPa s (cP) (Ultra-Low) |
| Cure Wavelength | 365 – 420 nm |
| Tensile Strength | 15 – 20 N/mm² (2200 psi) (DIN 53504) |
| Elongation | 100% – 150% (DIN 53504) |
| Storage Temperature | 5°C to 25°C (41°F to 77°F) |

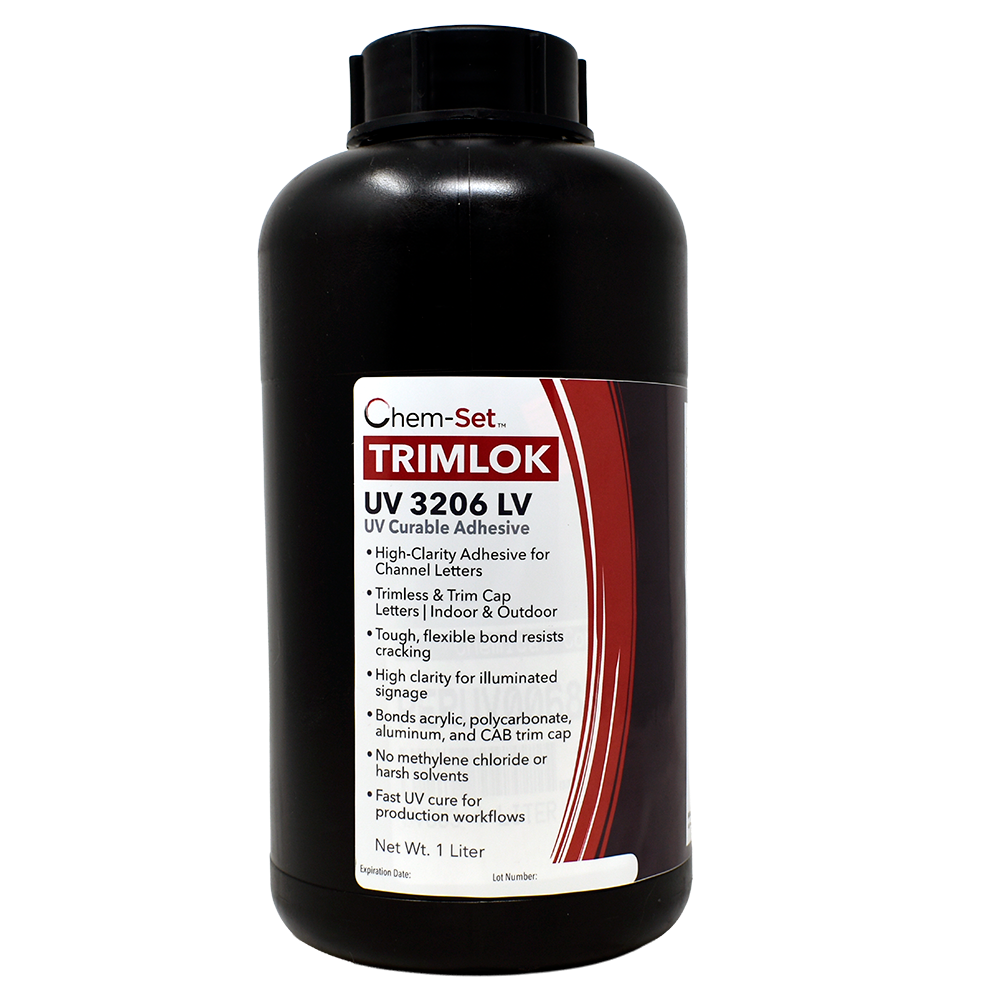

| Packaging Options | 2 oz, 4 oz, 8 oz, and 1 Liter Bulk Bottles |
Ready to Upgrade Your Channel Letter Fabrication?
Have questions about integrating UV3206 LV into your automated channel letter workflow, or need recommendations on UV lighting and secondary MMA adhesives?
