Description

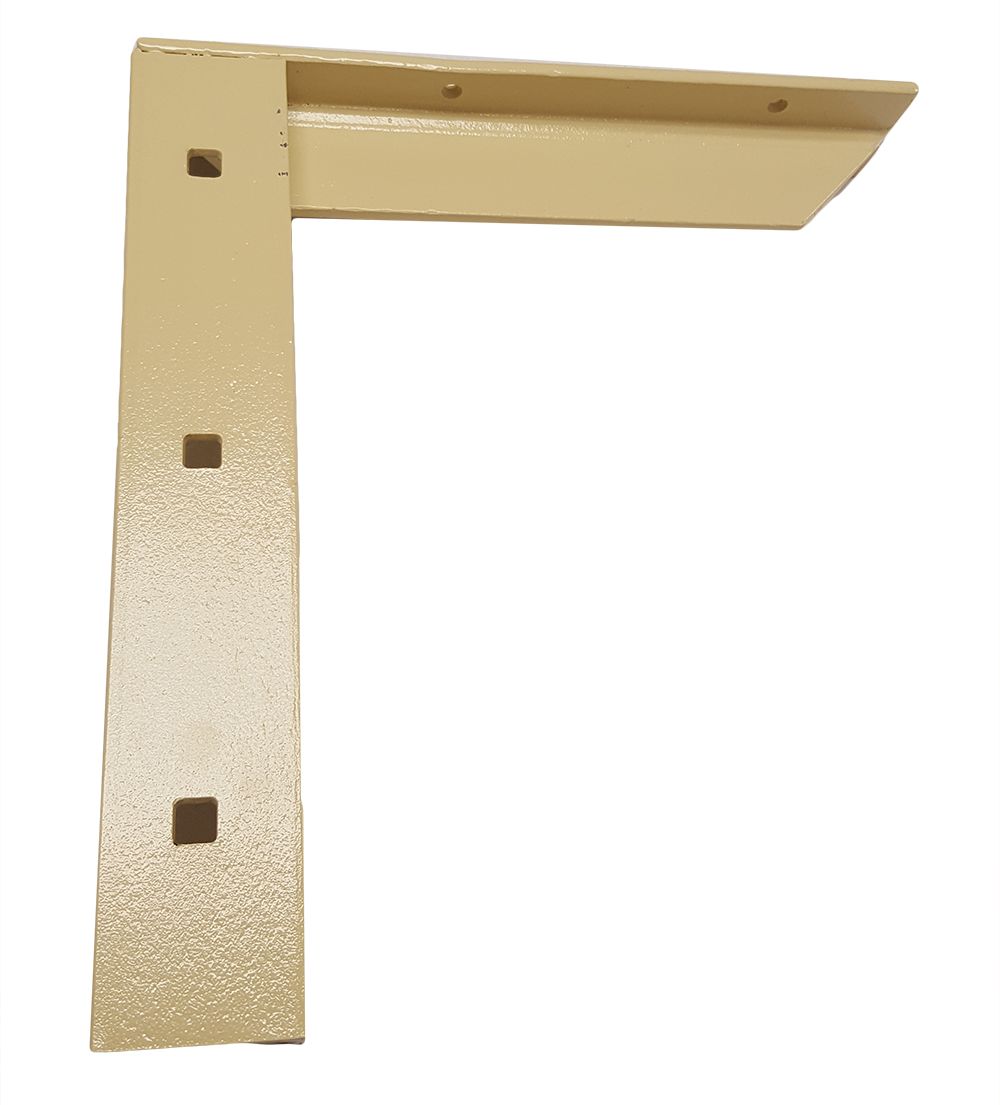

A concealed countertop bracket carries the countertop’s weight without a single visible support underneath. This CounterBalance model bolts to load-bearing wall studs behind the drywall, so the finished install shows nothing but clean overhang from bar top to island edge. The almond finish blends into standard kitchen and bath trim, and the 9 inch arm is sized for shorter runs, seating counters, and compact bar returns.
What Makes This a Concealed Countertop Bracket
Steel construction and reverse-side welds keep the visible face smooth once the surface is set. This concealed countertop bracket carries 1,800 to 7,960 lbs per pair depending on span and loading, and it is rated to support an overhang extending 6 inches beyond the bracket’s own length, in line with industry-recommended standards for floating countertop supports. Mounting hardware, including 1/4 inch by 3 inch carriage bolt assemblies, ships with every pair.
Where a Concealed Countertop Bracket Fits
Use it for kitchen islands, breakfast bars, bathroom vanity overhangs, and any countertop or seating ledge that needs to look like it is floating. Drywall must already be installed over the framing, since the bracket anchors directly to the stud behind it, not to the wall surface itself. When studs are metal rather than wood, add backing before mounting for full load rating. For a less bulky footprint, CC also stocks a 1 inch width version of this same bracket family, and a Hybrid Bracket option for walls where drywall goes up after the bracket is set. Both options carry the same underlying steel construction and are sized to work alongside this 9 inch almond bracket in a mixed installation.
| Spec | Detail |
|---|---|
| Width | 2 inch |
| Arm Length | 9 inch |
| Color | Almond |
| Load Limit | 1,800 to 7,960 lbs per pair |
| Overhang | Up to 6 inch beyond bracket length |
| Hardware | 1/4 in x 3 in carriage bolt assemblies included |
Browse the full countertop bracket collection for matching colors, widths, and the Extended and Hybrid variants sold alongside this bracket. For mounting technique and stud-spacing tips, see the Chemical Concepts YouTube channel for installation walkthroughs. Questions on load ratings for a specific span or substrate? Call (800) 220-1966 or email [email protected] and CC’s team will help size the right bracket for the job.
