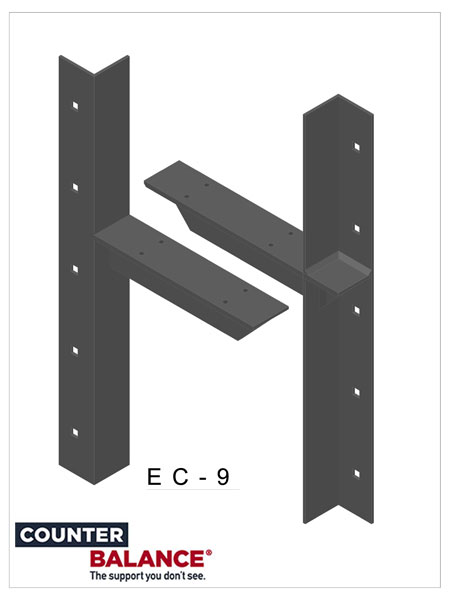

CounterBalance Extended Concealed Bracket, Almond, 9 Inch

Description

Short returns and compact bar seating still need a bracket rated for real weight, and this almond support bracket covers that job with room to spare. The 9 inch arm on this CounterBalance Extended model suits tight overhangs, while the added upper extension above the support arm gives it more capacity than the standard Concealed Bracket at the same length. Almond finish matches CC’s other almond hardware for a uniform look.

Short Arm, Almond Support Bracket Strength

At 9 inches, this almond support bracket sits at the high end of the Extended family’s load range, since shorter arms carry more weight per pair than longer ones across the same 1,800 to 7,960 lbs per pair rating. It still supports an overhang extending 6 inches beyond the bracket’s own length, matching industry-recommended standards for floating countertop supports, and carriage bolt hardware (1/4 inch by 3 inch) ships in the box.

Fit and Installation for This Almond Support Bracket

Mount to load-bearing studs behind finished drywall, not to the drywall surface itself. Add backing behind metal studs to hold the full rated load. This size is also available in black for a US-made 2 inch width option, alongside the imported almond, white, and gray versions across the rest of the Extended arm-length lineup, so matching a run of mixed finishes stays straightforward.

Compare finishes and arm lengths in the countertop bracket collection. For a look at the mounting sequence before drywall closes in around the bracket, check the Chemical Concepts YouTube channel for installation demos. Sizing a run with multiple brackets? Call (800) 220-1966 or email [email protected].
