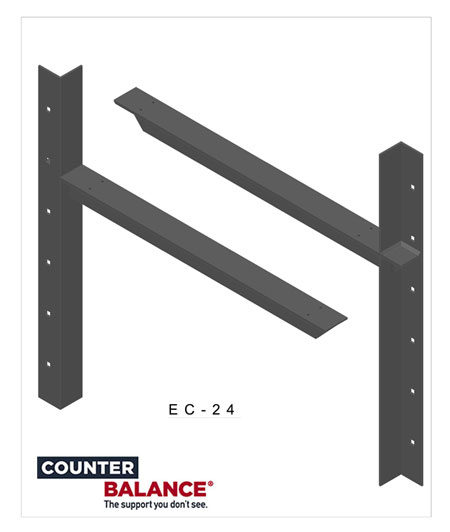

CounterBalance Extended Concealed Bracket, Gray, 24 Inch

Description

Long overhangs need more arm before they need more brackets, and a 24 inch support bracket is built for exactly that. This CounterBalance Extended model carries a 24 inch reach for island counters, long bar seating runs, and wide vanity overhangs, while still disappearing behind the drywall once installed. The gray powder coat finish suits modern cabinetry and darker wall trim.

A 24 Inch Support Bracket for Longer Spans

Like the rest of the Extended line, this bracket adds a vertical member above the support arm for extra rigidity at length. This 24 inch support bracket sits at the longer end of the family’s 1,800 to 7,960 lbs per pair range, since longer spans carry less weight per pair than short ones. The bracket still supports an overhang extending 6 inches beyond its own length, per industry-recommended standards, and ships with 1/4 inch by 3 inch carriage bolt hardware.

Planning a Long Run With This 24 Inch Support Bracket

Anchor to load-bearing studs behind the finished drywall, and add backing wherever the framing uses metal studs instead of wood. For island counters and long bar tops, plan bracket spacing before ordering. CC stocks the same Extended family in 9, 12, 15, 18, 21, and 30 inch arm lengths across black, white, almond, and gray, so a longer or shorter bracket in a matching finish is one order away.

Check bracket spacing and matching sizes in the countertop bracket collection. For mounting sequence and stud-finding tips before the countertop goes on, see the install walkthroughs on the Chemical Concepts YouTube channel. For load questions on a specific counter span, call (800) 220-1966 or email [email protected].
