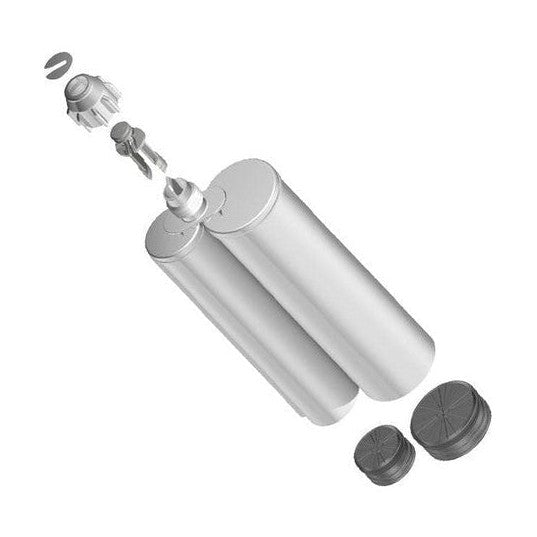

Medmix 400ml C-System Empty 2:1 Ratio 2-Part Cartridges with Pistons & Sealing Caps (AC 400-02-10-01)

Description

Medmix 400ml C-System Empty 2:1 Ratio 2-Part Cartridges with Pistons & Sealing Caps (AC 400-02-10-01) give you empty, industrial-grade dual cartridges ready to fill with two-component adhesives and sealants. Each cartridge holds 400ml total across both barrels and meters material at a fixed 2:1 ratio, so the resin and hardener stay in the correct proportion every time you dispense. The kit includes matching pistons and a resealable tip cap, which means you can fill, store, and dispense from the same cartridge.

The cartridges follow the C-System format, a widely used standard for two-component packaging and dispensing. They are silicone free and rated for sustained pressure up to 100 psi. Both adhesive parts stay separated inside the barrels until a static mixing nozzle is attached. When you extrude through the nozzle, the two parts combine and curing begins, giving you a consistent, fully mixed bead at the tip.

C-System Cartridge Benefits

• Fixed 2:1 metering keeps resin and hardener in correct proportion
• 400ml total volume across both barrels for higher-output jobs
• Included pistons and resealable cap for filling, storage, and reuse
• Silicone free and rated to 100 psi sustained pressure
• C-System format fits standard dispensers and mixing nozzles
• Keeps both components separated until you attach the mixer

Common Applications

• Packaging bulk two-component epoxies and urethanes
• Structural bonding where precise mix ratio matters
• Potting and encapsulation of electronic and mechanical assemblies
• Gap filling and sealing on metal, composite, and plastic substrates
• Production lines that refill and reuse cartridges between runs
• Repair and maintenance work needing measured two-part dispensing

Surface Prep and Use

Clean and dry both mating surfaces before dispensing. Remove oil, dust, and loose material so the cured adhesive bonds to a sound surface. Fill each barrel with the correct component, insert the supplied pistons, and seat the resealable cap until you are ready to dispense. Load the cartridge into a matching 400ml dispenser.

Attach a fresh static mixing nozzle, in either Bell or Integrated-Nut style, before each use. Dispense a short purge bead first to confirm the material is fully mixed, then apply. Mixing nozzles are generally single use because they cure internally after dispensing, so keep spares on hand for longer jobs.

Ordering and Product Support

These cartridges need a matching dispenser and mixing nozzles to use. Browse our dispensers, mixers and nozzles to complete your setup. The C-System format is manufactured by Medmix. For help selecting the right ratio, dispenser, or nozzle, call (800) 220-1966 or email [email protected].
