Medmix MFHX 06-24T Static Mixer for 200/400ml Cartridges

Description

The Medmix MFHX 06-24T mixer is a disposable static mixing nozzle built for 200ml and 400ml F-series two-component cartridges running at 4:1 and 10:1 mix ratios. It threads onto the cartridge outlet with a simple interlock mounting method, so operators can swap a fresh mixer for every new cartridge without tools or adapters.

Applications for the Medmix MFHX 06-24T Mixer

This mixer handles epoxy, polyurethane, silicone, acrylic, methacrylate, and other two-part adhesives and sealants that ship in 4:1 or 10:1 F-series packaging. Fabrication and assembly teams in electronics, aerospace, automotive, and wind turbine work use it to dispense structural and sealing compounds with consistent, fully mixed output straight from the cartridge, without pre-mixing by hand.

Design of the Medmix MFHX 06-24T Mixer

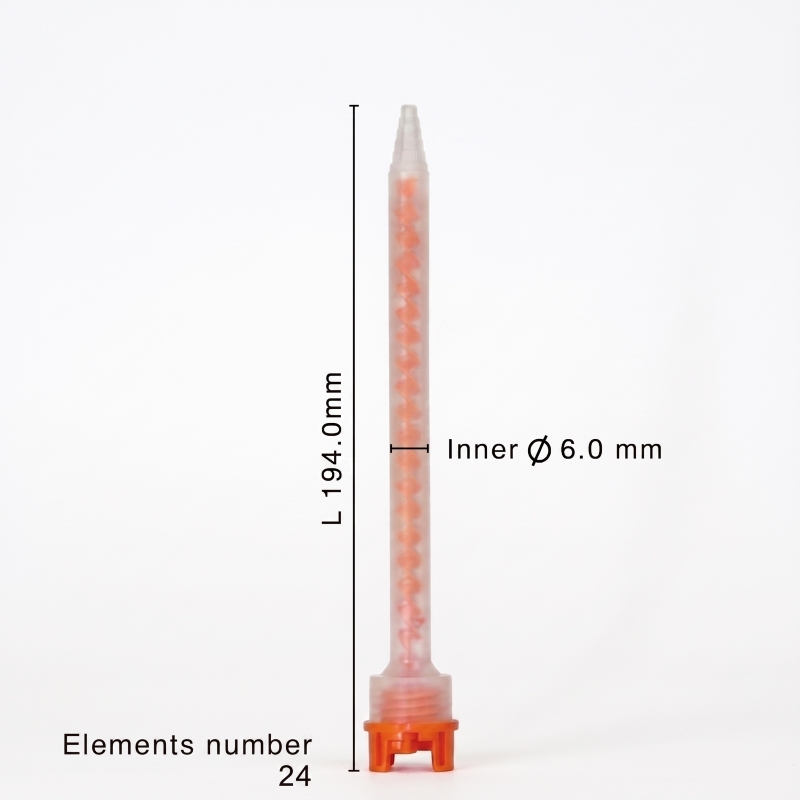

Internal helical elements split and recombine the resin and hardener streams as they travel down the mixer body, so the material exits fully blended and ready to apply. Because the mixer is disposable, there is no cleanout between cartridges, which keeps changeover fast on a production line running multiple cartridges per shift. The interlock connection seats firmly on the cartridge nose so pressure from a pneumatic or manual dispensing gun does not blow the mixer off mid-shot. Element count and mixer length are matched to the 06-24T designation, giving enough mixing length for consistent output even on the higher 10:1 ratio side, where a shorter mixer would leave streaks of unmixed hardener in the bead.

Stock up on mixers alongside your cartridge adhesive to keep dispensing runs moving without a gap in supply. Browse the full lineup in Chemical Concepts dispensers, mixers, and nozzles, and check compatibility notes at Medmix.
