Description

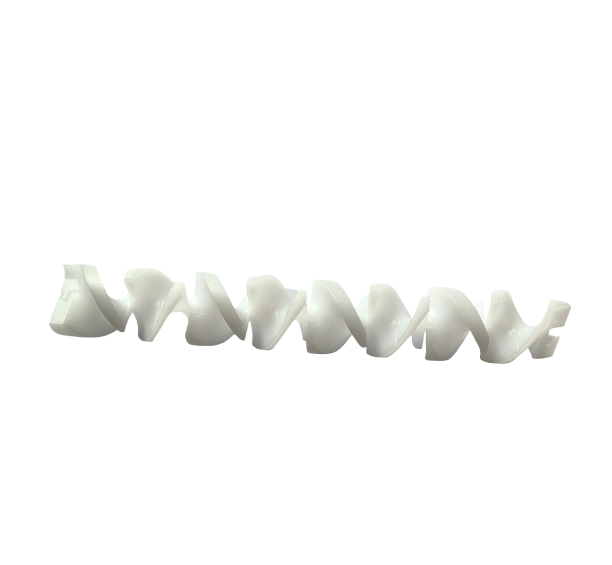

The Chem-Set 121-608 static mixing element is the internal helical core that blends two-part adhesives as they pass through a static mixer nozzle. It measures roughly 19.9 mm outer diameter by 136 mm long and carries 8 mixing elements molded in polyacetal, a rigid, chemically resistant plastic that stands up to epoxies, urethanes, and methacrylates without swelling.
How this static mixing element works
A static mixing element has no moving parts. Each helical segment splits and folds the resin and hardener streams as material is pushed through, so the two components arrive at the nozzle tip fully combined and ready to apply. Element count drives mix quality, and the 8-element design balances thorough blending against the back pressure a hand or pneumatic gun has to overcome. Too few elements leave streaks of unmixed resin or hardener, while too many add resistance and waste material in the nozzle, so the element count is matched to the chemistry and the dispensing tool.
Specifications and fit for the static mixing element
The 121-608 core is sized for compatible mixer housings running 19.9 mm bore nozzles. Match the element to the bore and length your cartridge system uses, and replace the full nozzle assembly between jobs once the mixed adhesive sets inside it. Polyacetal construction keeps the element stable across common two-part chemistries while holding its helical geometry under flow.
Keep spares on hand so a cured nozzle never stops a production run. For housings, retainers, cartridges, and matching tips, browse our dispensers, mixers, and nozzles. For background on how two-component adhesives are mixed and applied, see the Adhesive and Sealant Council overview of adhesive and sealant technologies at the Adhesive and Sealant Council overview of adhesive and sealant technologies. To confirm bore size or order in volume, call (800) 220-1966 or email [email protected].
