Description

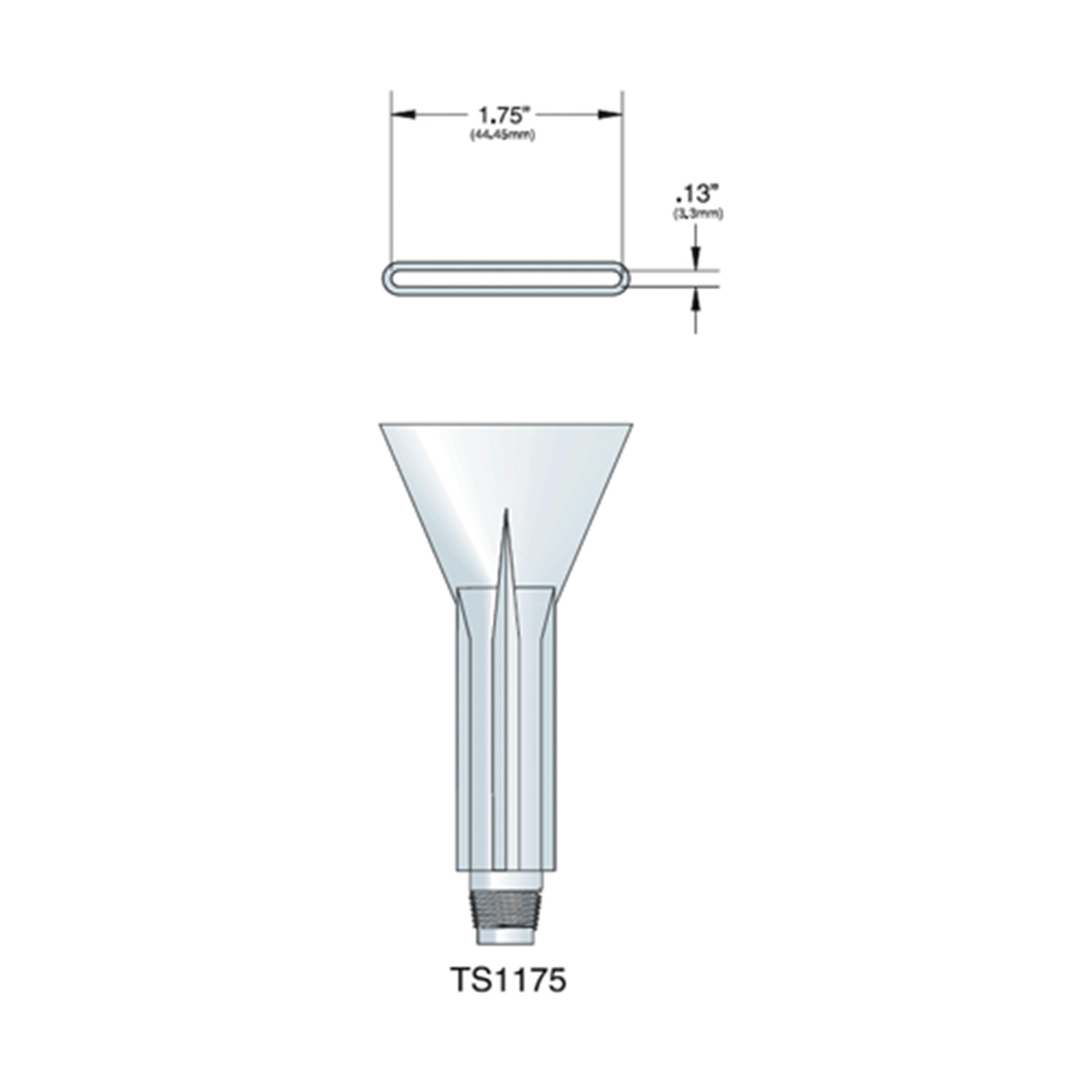

The Techcon TS1175 spreader nozzle lays down a wide, flat ribbon of adhesive instead of a round bead. A 1/8 in orifice opens into a 1-3/4 in wide tip, so a single pass covers more area when bonding sheet goods, laminates, or trim. The nozzle threads onto a 1/4 in NPT fitting and ships 50 to a pack.
Where the TS1175 Spreader Nozzle Works
Use it for glue, silicone, and sealant jobs that need an even film across a seam or a flat face rather than a narrow line. The wide outlet speeds coverage on panels and edges and cuts the back-and-forth passes a round tip would take. On long seams the wide tip lays a more even film than overlapping round beads, which reduces high spots that have to be tooled out later. That leaves the bond line flatter before parts are mated. For tips, mixers, and other dispensing parts, see our dispensers, mixers, and nozzles category.
TS1175 Spreader Nozzle Specifications
Thread the nozzle onto the dispense valve or cartridge fitting, set flow, and draw a steady pass to lay the ribbon. Buying the 50 pack keeps fresh tips on the bench so a clogged or cured nozzle gets swapped without stopping the run. Clear the orifice promptly after use, because a flat wide tip cures faster at the edges than a round nozzle. A stocked bench means a fresh tip is always within reach during a long run.
| Attribute | Detail |
|---|---|
| Brand | Techcon |
| Model | TS1175 |
| Width | 1-3/4 in |
| Orifice | 1/8 in |
| Thread | 1/4 in NPT |
| Pack | 50 nozzles |
Order the pack quantity that matches your run rate and pair the nozzle with a compatible valve or cartridge fitting. For the full specialty nozzle range, visit Techcon.
Need Help?
Need help matching nozzle width and thread to your dispensing setup? Call (800) 220-1966 or email [email protected].
