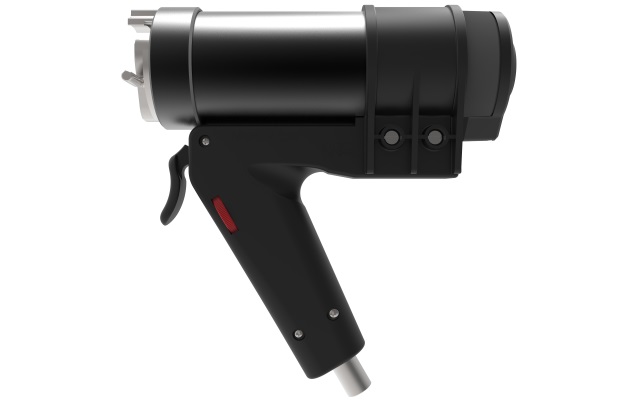

Medmix MIXPAC TS408 HM-101 50 mL Pneumatic Dispenser

Description

TS408 HM-101 is a pneumatic two-component dispenser for 50 mL cartridges in a 10:1 ratio. The medmix and COX dispenser data lists this tool at 1.3 kN maximum thrust, 8 bar maximum pneumatic pressure, and 40 liters per minute air consumption. It is a compact choice for low-viscosity two-part materials where shop air and controlled output are preferred over hand pressure.

TS408 HM-101 Pneumatic Dispenser Details

• Designed for 50 mL, 10:1 two-component cartridge sets.
• 1.3 kN maximum thrust supports controlled dispensing for compatible low-viscosity materials.
• 8 bar, 116 psi maximum pneumatic pressure rating fits common regulated air setups.
• Reinforced nylon handle and cartridge holder keep the tool light for bench use.
• Compact 184 mm body length helps technicians work close to parts, fixtures, and repair areas.

TS408 HM-101 Application Fit

Use this dispenser for small two-part adhesive or sealant cartridges where mix ratio accuracy comes from the cartridge set and static mixer. It suits quality labs, production benches, repair cells, and field kits that already have regulated compressed air. Before ordering, confirm the 10:1 cartridge format, cartridge back style, and mixer family used with your material.

The compact pneumatic design is useful where operators need repeat output from many small cartridges without the fatigue of manual plungers. Set air pressure according to the material supplier guidance and test the first bead before moving to production parts.

For compatible mixers and small cartridge dispensing supplies, browse Chemical Concepts dispensers, mixers, and nozzles. For manufacturer information on MIXPAC dispensing systems, visit medmix.

Need help checking cartridge ratio, mixer fit, or air pressure setup? Call (800) 220-1966 or email [email protected].
