Description

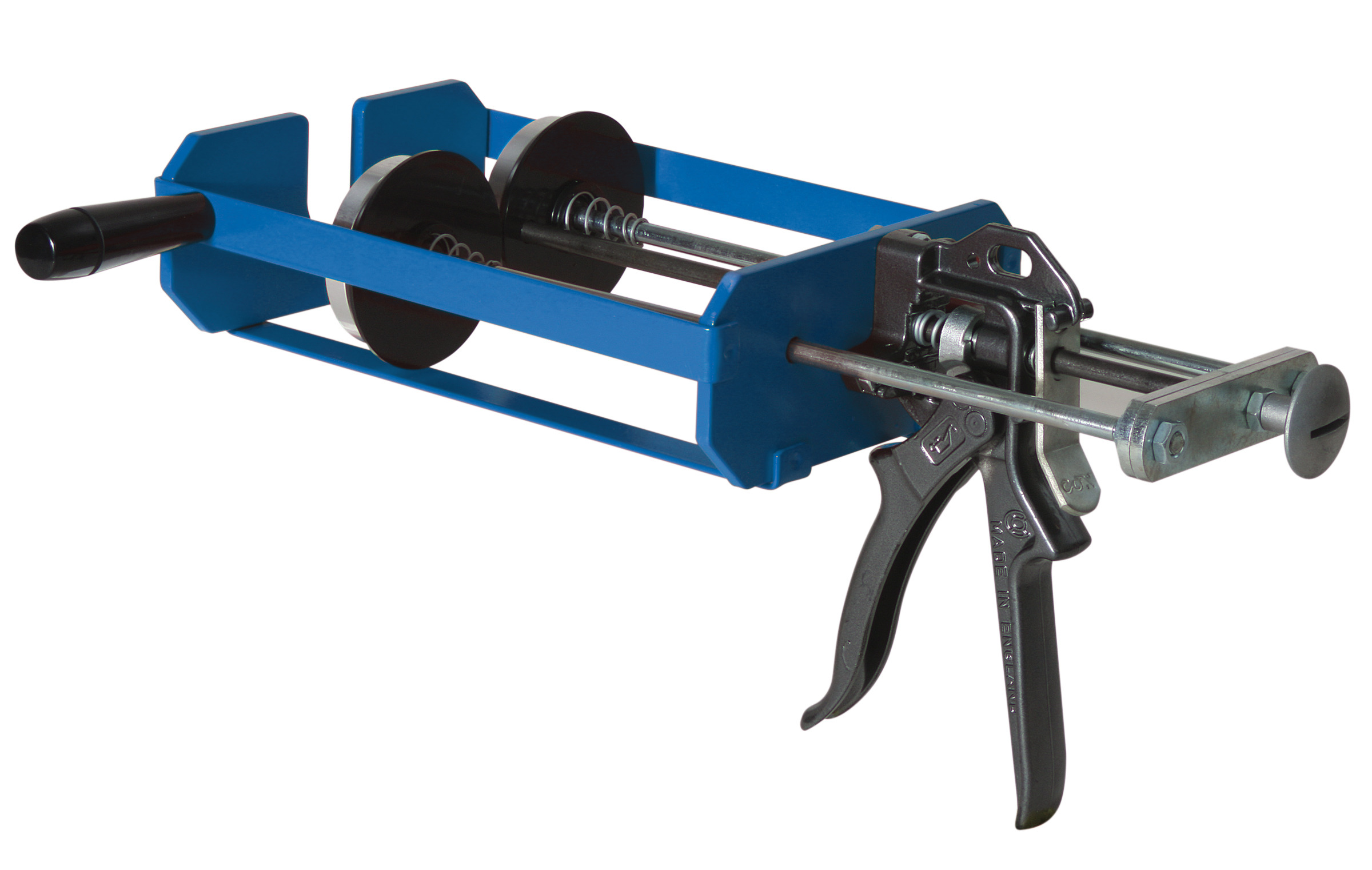

COX PPM 1500X Manual Dispenser is a large two-component applicator for 1500 mL 1:1 cartridge sets, using matched 750 mL by 750 mL packages. The 25:1 mechanical drive helps operators apply high viscosity adhesives, sealants, and repair compounds with controlled hand pressure.
PPM 1500X Benefits
- Large 1500 mL format supports long bead runs and bigger bonding jobs.
- 1:1 setup fits matched dual cartridges that require equal component feed.
- 25:1 drive provides high manual thrust without air lines or chargers.
- Support discs help keep both cartridges aligned during dispense.
- Manual frame is practical for field repair, fabrication benches, and maintenance work.
Use this dispenser when a smaller 400 mL, 600 mL, or 1200 mL tool does not carry enough material for the work. It is suited to structural bonding, composite repair, marine and transportation assembly, large panel work, and sealing tasks where a two-part cartridge system must be dispensed away from fixed equipment.
Common Applications for PPM 1500X
- Dispensing 1500 mL 1:1 two-part adhesive cartridges.
- Long bead applications in construction, sign, marine, and transportation work.
- High viscosity repair materials that need a strong manual drive.
- Maintenance jobs where compressed air is not available at the point of use.
- Large potting or sealing tasks that benefit from fewer cartridge changes.
Compatible Cartridges and Materials
- 750 mL by 750 mL side-by-side cartridges configured at 1:1 ratio.
- High viscosity epoxies, urethanes, acrylics, and sealants packaged for large two-part tools.
- Static mixers matched to cartridge outlet, ratio, element count, and material chemistry.
PPM 1500X Technical Specifications
| Property | Value |
|---|---|
| SKU | COX-DM2C1500-01-R25-001 |
| COX Part Number | DM2C 1500-01-R25-001 |
| Old Model Number | M750X/1 |
| Cartridge Capacity | 1500 mL total, 750 mL by 750 mL |
| Mix Ratio | 1:1 |
| Mechanical Advantage | 25:1 |
| Maximum Force | 1011 lbf |
| Tool Type | Manual two-component dispenser |
Packaging and Ordering
Order this model when your process uses large 1:1 cartridge sets and needs a high-force manual frame. Browse related dispensers, mixers, and nozzles, and review current product-family information from COX Dispensers.
