Description

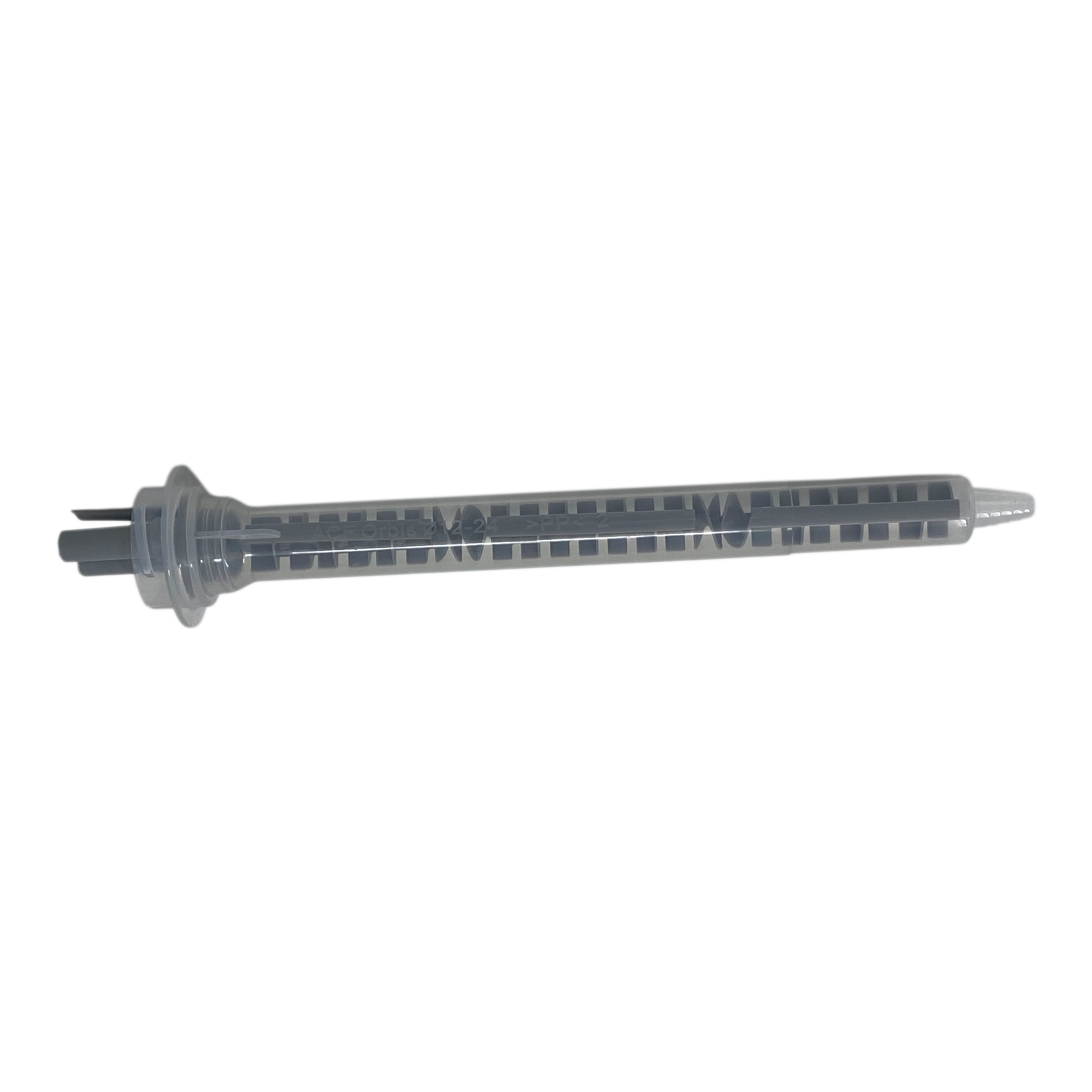

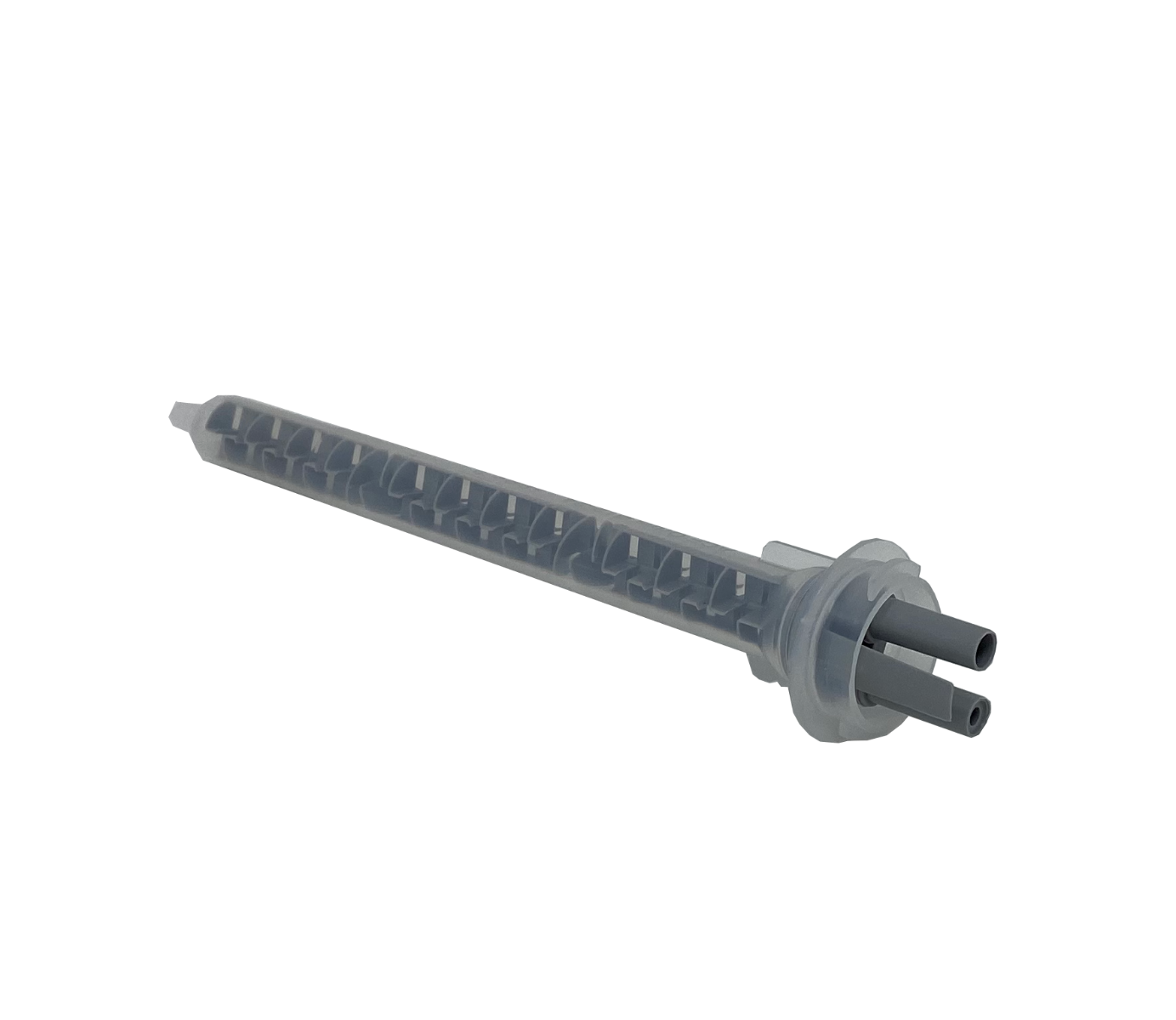

The Ritter 10:1 static mixer 13600-3102 is the ORBIS-series helix nozzle used to blend high-viscosity, high-ratio two-component adhesives at the cartridge tip. Twenty-four helical mixing elements inside a 12 mm tube produce homogeneous A:B output for epoxies, acrylics, urethanes, and methacrylates dispensed through Ritter ACF ORBIS 10:1 cartridges. The 5.4 mm outlet shapes a controlled bead, and the 15.8 ml retained volume keeps purge waste low between shots.
Key Features and Benefits
- 24 helical elements deliver thorough A:B blending across challenging 10:1 ratios in a single pass
- 12 mm tube diameter handles filled and structural-grade adhesives without back-pressure spikes
- 5.4 mm outlet shapes a defined bead for dispensing into bond lines and fixture features
- 15.8 ml retained volume balances mix quality with low purge waste
- Native fit on Ritter ACF ORBIS 10:1 cartridges, the standard for high-ratio two-part materials
- Air-free flow path produces bubble-free beads suited to structural assembly
- Disposable, single-use design eliminates between-job cleanup and cross-contamination
Common Applications for Ritter 10:1 Static Mixer
- Methacrylate and structural epoxy bonding in production assembly
- Composite lay-up and panel bonding in transportation and signage
- Fixture and tooling assembly where 10:1 cartridges are the dispensing format
- Potting and encapsulation of electronic modules with high-ratio epoxies
- Marine and rail interior bonding using filled adhesives
- Repair and rework with two-part adhesives that cure on demand
Compatible Cartridges and Materials
- Ritter ACF ORBIS 10:1 cartridges
- Two-part epoxies, methacrylates, urethanes, and acrylics in the 10:1 fill range
Ritter 10:1 Static Mixer Technical Specifications
| Specification | Value |
|---|---|
| Manufacturer Reference | 13600-3102 |
| Series | ACF ORBIS |
| Mix Ratio | 10:1 |
| Mixing Elements | 24 |
| Tube Outer Diameter | 12 mm |
| Outlet Diameter | 5.4 mm |
| Retained Volume | 15.8 ml |
| Use Pattern | Single-use, disposable |
Packaging and Ordering
Sold individually with case pricing on request. Browse the full dispensing tips and static mixer line for matching nozzles in other ratios and bore sizes. Manufacturer documentation on the ACF ORBIS cartridge system is available at Ritter Cartridges.
Need Help?
For ratio guidance, cross-references to other 10:1 mixers, or volume pricing on cases, call (800) 220-1966 or email [email protected].
