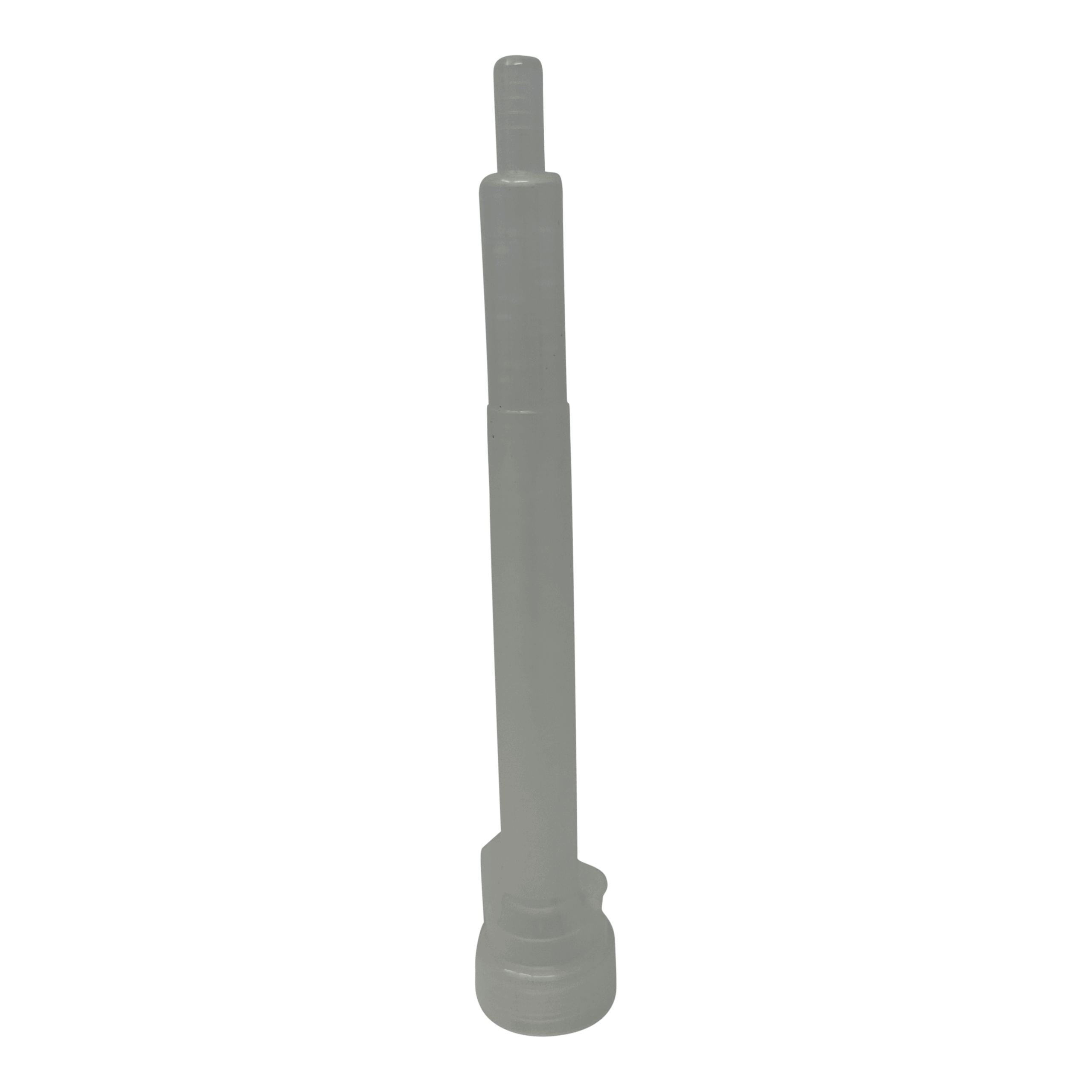

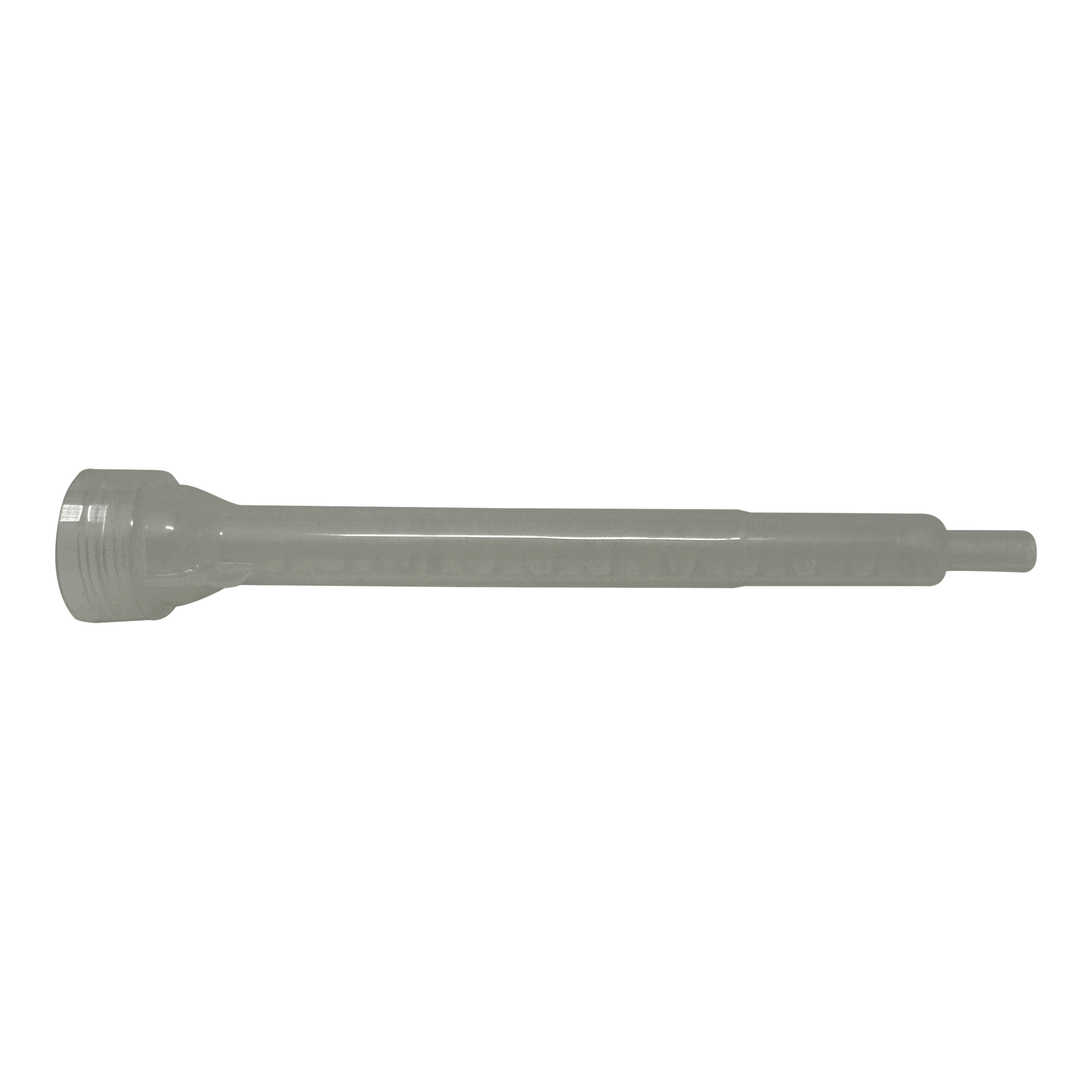

Ritter ORBIS 10-24 Static Mixer With Integral Nut Connection

Description

Ritter ORBIS 10-24 is a disposable square static mixer with an integral nut connection for two-component adhesive and sealant cartridges. The 24-element ORBIS body, 156 mm length, 7.2 mm outside outlet, 4.9 mm inside outlet, and 10 mm tube diameter support controlled mixing on cartridge-packaged epoxy, polyurethane, silicone, acrylic, and MMA systems.

Ritter ORBIS 10-24 Benefits

• Twenty-four mixing elements divide and recombine A and B streams for consistent material blend before the bead reaches the part.
• Integral nut connection gives operators a positive cartridge mount for production dispensing and bench repair work.
• Square ORBIS geometry supports repeatable mixing in 200 mL and 400 mL style cartridge workflows where this mixer format is specified.
• Stepped outlet can be trimmed to match bead size, back pressure, and fixture access.
• Disposable construction reduces cleanup between cartridges and helps prevent cured material from entering the next job.

This mixer is a practical stocking item for shops that run two-part adhesives in repeatable cartridge processes. Keep the correct mixer matched to the cartridge, ratio, and adhesive viscosity so the material exits evenly and the joint sees the cure profile expected by the adhesive maker.

Where Ritter ORBIS 10-24 Fits

• Epoxy bonding for countertop, sign, and general manufacturing assemblies.
• Polyurethane and silicone dispensing where disposable static mixing is preferred.
• Acrylic and methacrylate cartridge systems that call for an ORBIS 10 mm mixer body.
• Repair stations that need fresh mixers for each cartridge change.
• Production cells using cartridge adhesives with controlled bead placement.

Surface Preparation and Use

Prepare the substrate according to the adhesive data sheet before dispensing. Install the mixer securely, purge a small amount of mixed material, and confirm that both components are flowing before applying material to the part. If the bead shows streaks or unmixed material, stop and replace the mixer before continuing.

Do not reuse a mixer after the working time has passed. Cured adhesive inside the element pack raises back pressure and can damage cartridges, guns, or seals.

Technical Details and Documentation

Ritter cartridge literature lists this reference as ORBIS 10-24, part 13602-2010, with 24 mixing chambers, 156.0 mm length, 7.2 mm outer outlet, 4.9 mm inner outlet, and 10.0 mm tube diameter. Review current manufacturer information from Ritter GmbH before changing an approved adhesive process.
