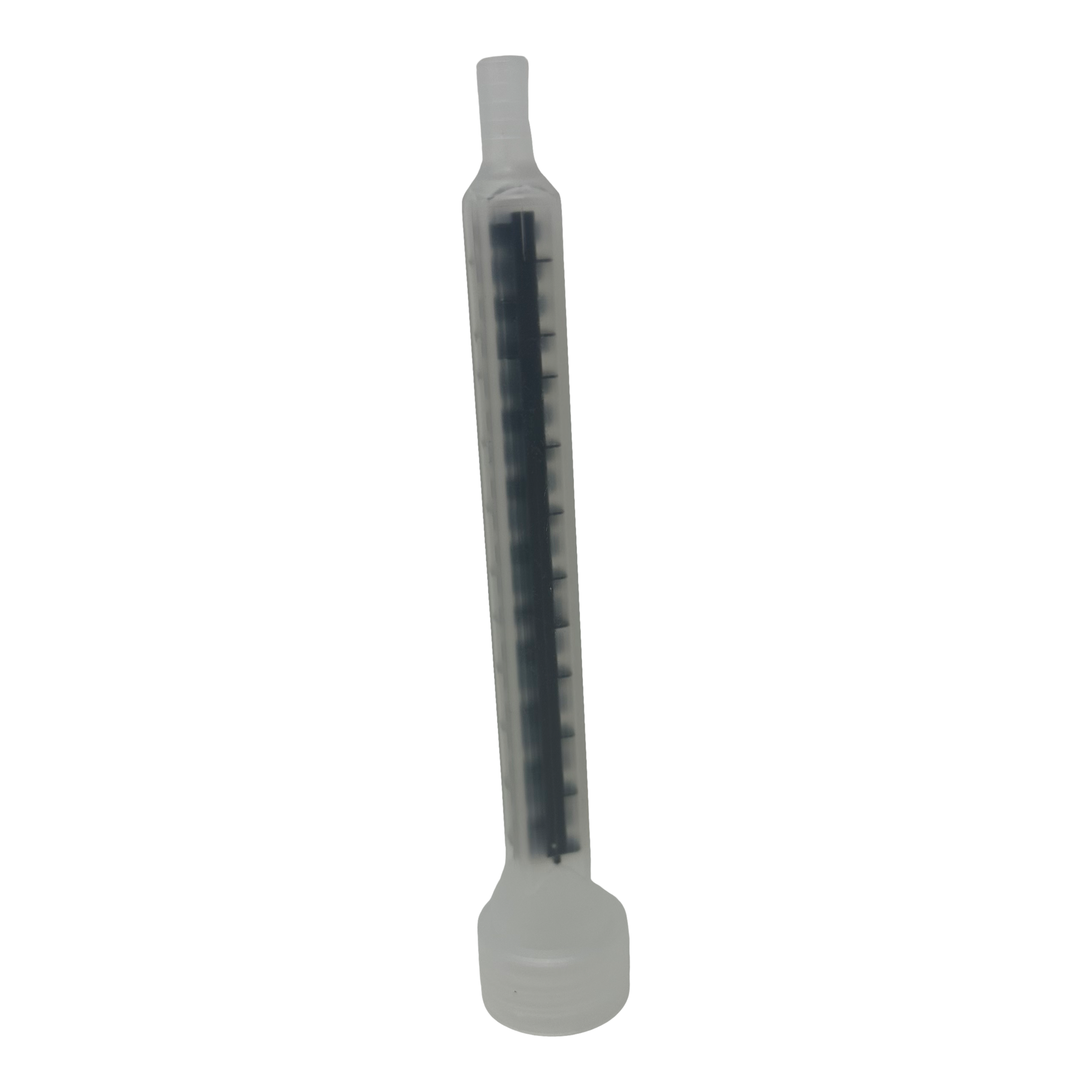

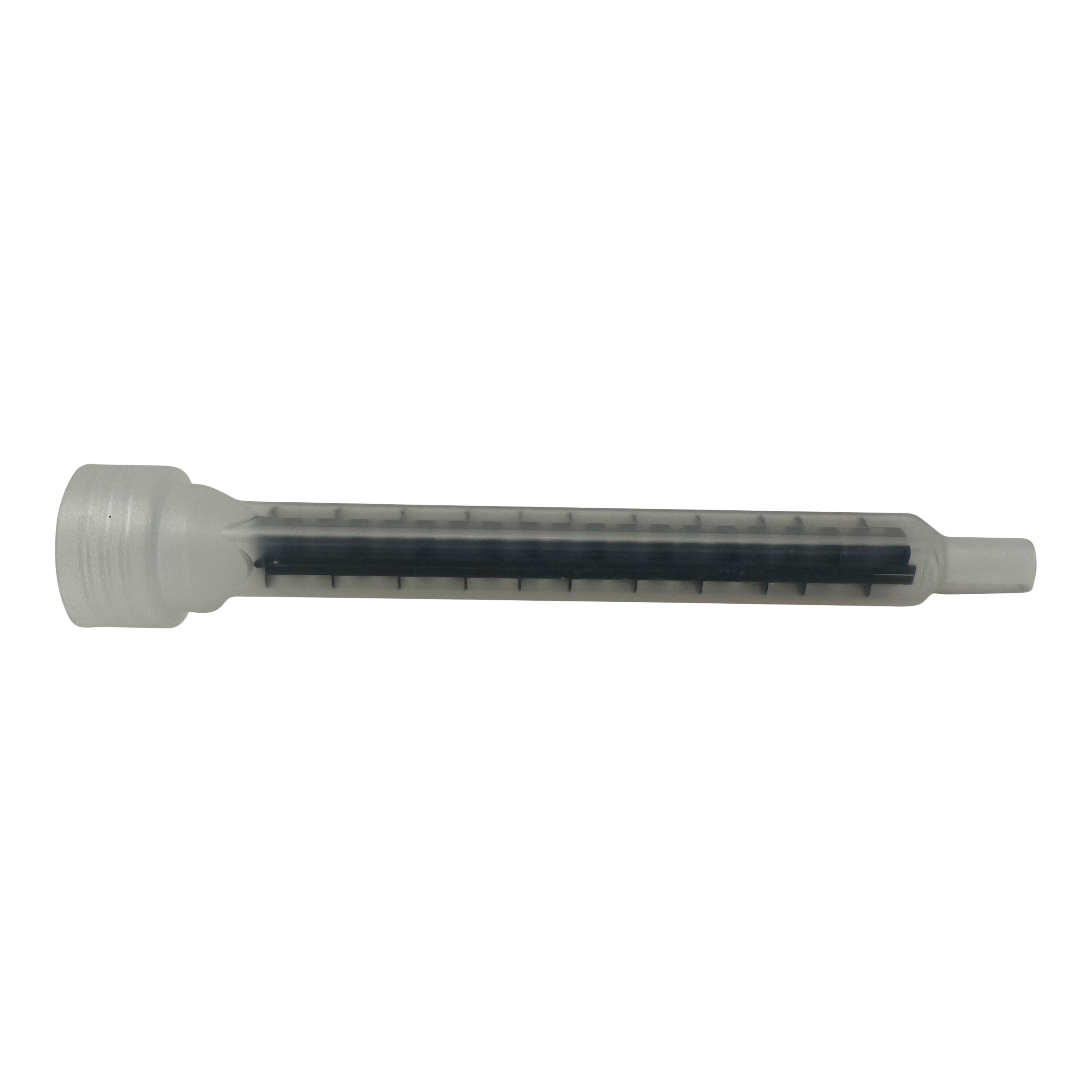

Ritter ORBIS-Q 8.7-19 Static Mixer, Integral Nut Connection

Description

Orbis-Q mixer is a Ritter ACF static mixer for two-component cartridges that need a compact Quadro-style disposable mix path. The 8.7-19 format gives operators 19 mixing elements in a shorter body for cartridge adhesive and sealant dispensing.

Orbis-Q mixer Benefits

• Nineteen mixing elements support consistent blending of Part A and Part B before application.
• 143 mm listed length keeps the mixer easier to position than longer nozzles in tight work areas.
• 8.6 to 8.7 mm tube diameter fits common Ritter ACF cartridge dispensing setups.
• Stepped outlet can be trimmed or adapted for bead control in bench and field work.
• Disposable construction reduces cleanup when two-part materials cure inside the nozzle.

This mixer is a practical consumable for crews using 200 ml and 400 ml ACF-style cartridges. It is best stocked with the cartridge system so operators can switch to a clean nozzle whenever the adhesive has paused too long or the bead starts to change.

Where Orbis-Q mixer Fits

• Dispensing two-part adhesives from Ritter ACF cartridge systems.
• Panel bonding, repair, and assembly work using 200 ml or 400 ml cartridges.
• Small production cells that need repeatable disposable nozzles.
• Field repair kits where a compact mixer is easier to stage.
• Jobs requiring a stepped outlet for bead size adjustment.

Surface Preparation And Use

Clean and prepare the substrates according to the adhesive manufacturer instructions before loading the cartridge. Attach the mixer securely, purge until the bead is uniform, and keep the first purge off the part.

Use a new mixer after long pauses, cartridge changes, or signs of partial cure. A blocked mixer can raise dispense force and may affect the mixed bead, especially with filled or higher viscosity materials.

Technical Details And Documentation

Chemical Concepts lists reference 13136-0000 with 19 mixing elements, 143 mm length, 7.2 mm outlet outside diameter, 5 mm outlet inside diameter, and 8.6 mm tube diameter. Additional product-family references identify Orbis-Q 8.7-19 as a Ritter ACF-system mixer for 200 ml to 400 ml double cartridges. Review current product-family information from Ritter before production use.

Ordering Help

For related nozzles, guns, and cartridge accessories, browse Chemical Concepts dispensers, mixers, and nozzles. For help matching mixer geometry to adhesive ratio and cartridge style, call (800) 220-1966 or email [email protected].
