Description
LORD® Signlok™ 810 is a specialty two-component acrylic adhesive designed specifically for ACM (Aluminum Composite Material) and thin-gauge metal-to-metal or metal-to-plastic bonding. Formulated to eliminate bondline read-through, also known as telegraphing, Signlok 810 is the preferred adhesive where clean surface aesthetics are critical—especially in architectural panels and signage.

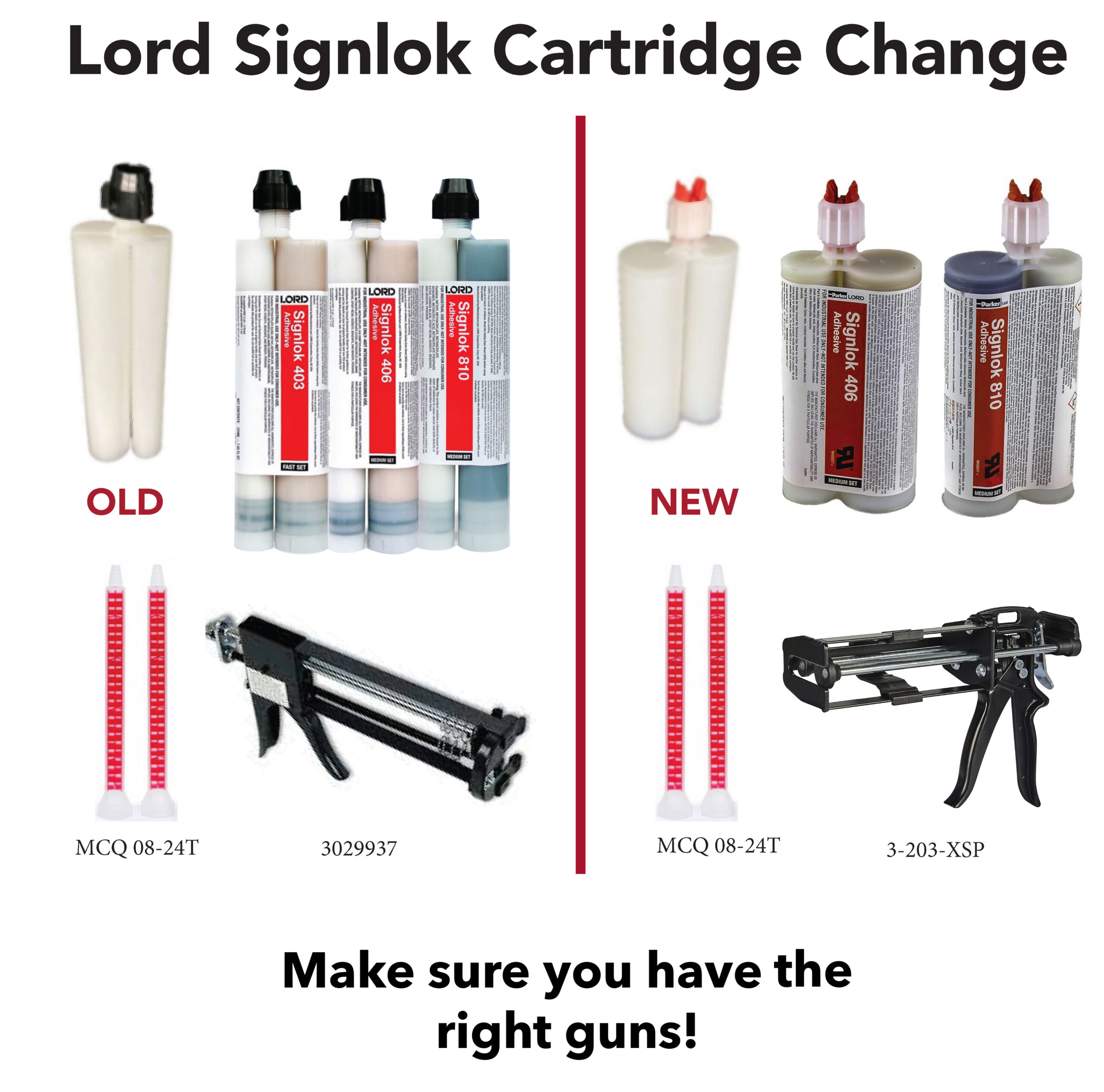

This adhesive is part of the Signlok 210ml cartridge line (alongside Signlok 403, 406, and 7550), and is compatible with the NEW-3-203-XSP dispensing gun and MCQ 08-24T mixing tip. Whether you’re bonding glossy pre-finished metals or fabricating high-end signage, Signlok 810 offers the flexibility and performance needed for premium visual results.
Key Features & Benefits
-

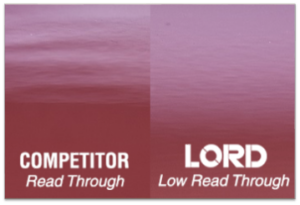

Low Read-Through Formula: Prevents surface distortion, ideal for ACM and glossy panels
-
Flexible & Durable: 190% elongation allows bonding of thin and flexible materials without cracking
-
Medium Work Time: 8–12 minutes of working time, with 20–25 minutes to handling strength
-
No Sagging: Non-slump formulation suitable for vertical and overhead applications
-
Glass Beads Included: Ensures precise bondline thickness and material control
-
Environmental Resistance: Performs under UV exposure, moisture, salt spray, oils, solvents, and dilute acids
-
UL 746C Recognized: Approved for use in UL-listed sign and enclosure assemblies (E225855, MH26317)
-
Clean Finish: Cures to a dark gray, low-exotherm bond with minimal shrinkage
Common Applications
-
Bonding ACM panels to frames and structures
-
Glossy or pre-finished metals where visual quality is key
-
Thin-gauge aluminum or stainless steel
-
Sign box assembly, channel letters, and structural skins
-
Architectural cladding systems where welding isn’t feasible
Technical Specifications
| Property | Value |
|---|---|
| Work Time | 8–12 minutes |
| Handling Strength | 20–25 minutes |
| Full Cure Time | 24 hours |
| Mix Ratio (by volume) | 2:1 |
| Color (Mixed) | Dark Gray |
| Tensile Strength | 841 psi (5.8 MPa) |
| Lap Shear Strength | 1,441 psi (9.94 MPa) on aluminum |
| Elongation at Break | 190%Signlok 810 – Flyer |
| Shore D Hardness | 40Lord Signlok 810 – Data… |
| Glass Transition Temp (Tg) | 109°F (43°C) |
| Shelf Life | 12 months (stored <77°F / 25°C) |
Compliance & Certifications
-
UL 746C Recognized (E225855, MH26317) for sign bonding
-
Meets requirements for UL 48 and CSA C22.2
-
Designed for production environments requiring minimal prep and maximum finish quality
Compatible Substrates
Signlok 810 is compatible with all substrates bonded by Signlok 403 and 406:
-
Aluminum and stainless steel
-
Cold-rolled steel
-
Aluminum Composite Materials (DiBond®, Alucobond®, MAXX™, etc.)
-
PETG, polycarbonate, and acrylics
-
PVC foam board
-
Glossy vinyl laminates
-
Polystyrene foam board
-
Engineered plastics (PC-ABS blends; testing recommended)
Packaging & Ordering Info
| Cartridge Size | Part # | Mix Ratio | Dispensing Gun | Mixing Tip |
|---|---|---|---|---|
| 210ml | 3031522 | 2:1 | NEW-3-203-XSP Gun | MCQ 08-24T |
Related Signlok Products (210ml Cartridge Series)
| Product | Work Time | Color | Use Case |
|---|---|---|---|
| Signlok 403 | 2–4 min | Tan | Fast cure for sign and metal bonding |
| Signlok 406 | 6–10 min | Tan | General-purpose structural adhesive |
| Signlok 810 | 8–12 min | Dark Gray | Flexible, low-read-through bonding |
| Signlok 7550 | 3–5 min | Clear | Non-structural bonding for trimcaps |
Technical Support
Looking to reduce telegraphing or optimize ACM panel fabrication?
Email: [email protected]
Phone: 800-220-1966
