Description

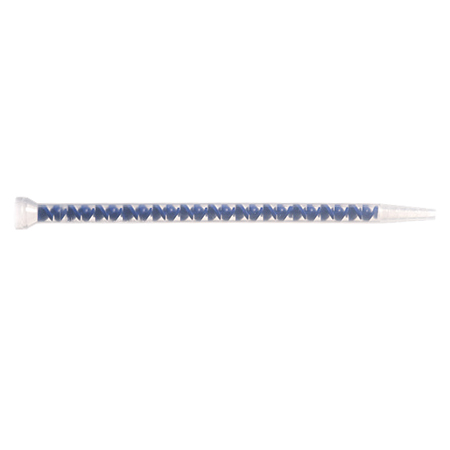

The Sulzer Medmix ME Series offers a complete line of high-pressure static mixers engineered for use with meter mix dispensing (MMD) equipment. These disposable machine mixers feature precision-molded mixing elements in various configurations, inner diameters from 5.0 mm (0.20″) to 13.0 mm (0.51″), and lengths up to 453 mm (17.83″)—designed to deliver reliable and repeatable performance for two-component adhesives including epoxies, polyurethanes, silicones, acrylics, and methacrylates.
Whether you’re working in aerospace, automotive, electronics, construction, or wind energy, the ME Series is trusted by engineers and OEMs for its quality, pressure resistance, and seamless integration with bell mouth housing systems (15.9 mm / 0.63″). All mixers are disposable for fast changeover and reduced downtime in production.
Key Benefits:
-
Available in multiple sizes: 5.0 mm to 13.0 mm ID (0.20″–0.51″)
-
Compatible with 1:1, 2:1, and 10:1 two-part cartridge systems
-
Rated for high-pressure dispensing up to 33 bar (478 psi)
-
Features blue POM elements and durable PP housing
-
Designed for MMD machines using bell mouth (Ø 15.9 mm / 0.63″) connections
-
Ideal for continuous flow or batch metering
Industries Served:
-
Electronics and PCB potting
-
Aerospace bonding and structural assembly
-
Wind turbine blade bonding and repair
-
Automotive composite assembly and battery lines
-
Concrete and infrastructure crack repair
-
Manufacturing of fiber optic and communication systems
ME Series Product Comparison Chart
| Part Number | Elements | Inner Ø (mm/in) | Outlet Ø (mm/in) | Length (mm/in) | Max Pressure (bar/psi) | Tip Style | Units/Box |
|---|---|---|---|---|---|---|---|
| ME 05-24T | 24 | 5.0 / 0.20 | 1.5 / 0.06 | 149 / 5.87 | 33 / 478 | Stepped | 2000 |
| ME 05-32T | 32 | 5.0 / 0.20 | 1.5 / 0.06 | 188 / 7.40 | 33 / 478 | Stepped | 2000 |
| ME 06-24T | 24 | 6.4 / 0.25 | 1.8 / 0.07 | 186 / 7.32 | 30 / 435 | Stepped | 2000 |
| ME 06-32T | 32 | 6.4 / 0.25 | 1.8 / 0.07 | 235 / 9.25 | 30 / 435 | Stepped | 1700 |
| ME 06-48T | 48 | 6.4 / 0.25 | 2.4 / 0.09 | 334 / 13.15 | 30 / 435 | Stepped | 1000 |
| ME 08-24T | 24 | 8.0 / 0.31 | 2.4 / 0.09 | 223 / 8.78 | 27 / 391 | Stepped | 1500 |
| ME 08-32T | 32 | 8.0 / 0.31 | 2.4 / 0.09 | 289 / 11.38 | 27 / 391 | Stepped | 1200 |
| ME 10-24T | 24 | 10.0 / 0.39 | 3.0 / 0.12 | 276 / 10.87 | 22 / 319 | Stepped | 1000 |
| ME 10-32T | 32 | 10.0 / 0.39 | 3.0 / 0.12 | 355 / 13.98 | 22 / 319 | Stepped | 800 |
| ME 13-24T | 24 | 13.0 / 0.51 | 4.0 / 0.16 | 293 / 11.54 | 17 / 247 | Stepped | 700 |
| ME 13-24T-02 | 24 | 13.0 / 0.51 | 4.0 / 0.16 | 350 / 13.78 | 17 / 247 | Stepped | 500 |
| ME 13-32T | 32 | 13.0 / 0.51 | 4.0 / 0.16 | 378 / 14.88 | 17 / 247 | Stepped | 500 |
| ME 13-32T-02 | 32 | 13.0 / 0.51 | 4.0 / 0.16 | 453 / 17.83 | 17 / 247 | Stepped | 400 |
Optimize Your Workflow with Medmix
Chemical Concepts offers the full Sulzer Medmix ME Series, available with fast shipping, competitive bulk pricing, and technical support. We help manufacturers optimize dispensing for structural bonding, sealing, and potting with compatible systems and accessories.
