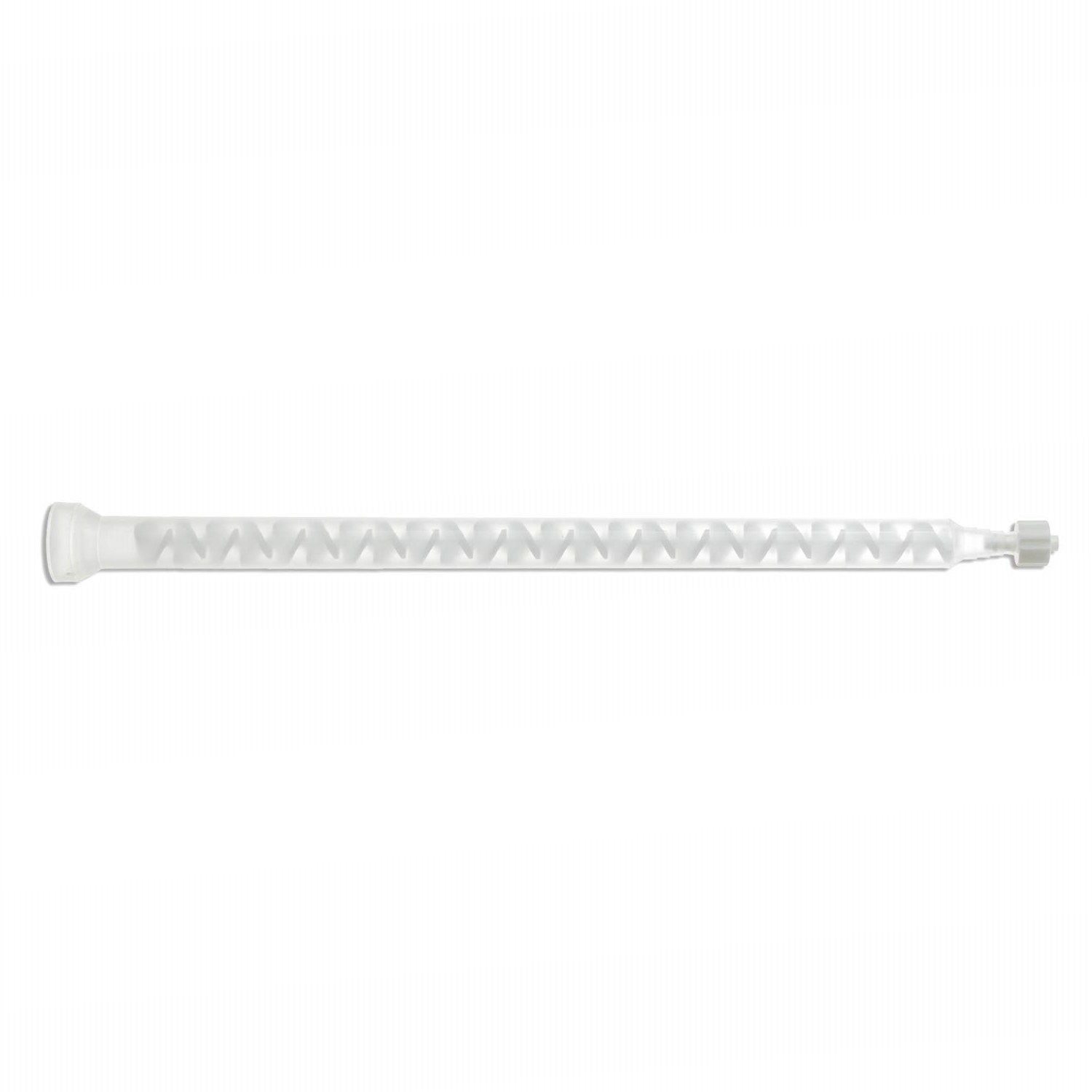

Nordson TAH 160-824LL Static Mixer Nozzle, 24-Element Luer Lock

Description

The Nordson TAH 160-824LL is a 24-element static mixing nozzle with a bell connection and a Luer Lock outlet tip, used to mix two-part adhesives from coaxial and side-by-side cartridges. The part is the predecessor to current Nordson 7700924 and remains a workhorse mixer for shops running MMA, epoxy, and polyurethane chemistries.

Nordson TAH 160-824LL benefits

• 24 helical mixing elements deliver thorough A:B blending across a wide viscosity range, supporting full cure performance of two-part adhesives.
• Bell connection mounts to Nordson 160 series cartridge systems for a secure, leak-resistant interface.
• Luer Lock outlet tip enables precise bead control and pairs the nozzle with dispensing needles for tight, accurate placement.
• 0.366 inch (9.30 mm) element diameter and 9.15 inch overall length handle typical structural and assembly bead sizes without back-pressure issues.
• 0.12 inch (3.05 mm) orifice supports clean dispensing of low to medium viscosity adhesives across automated and hand-operated cartridge guns.

Adhesive crews specify this mixer when an existing line of u-TAH Universal Cartridges or 380 ml coaxial or 200 to 1500 ml side-by-side cartridges needs a matched static mixer. The 24-element count is the right step up from shorter mixers when adhesive cure consistency matters, which is the case on structural bonds, methacrylate joints, and load-bearing assembly pulls.

Common applications for the Nordson TAH 160-824LL

• Two-part MMA dispensing for structural metal, composite, and plastic bonding
• Epoxy adhesive dispensing for aerospace, automotive, and electronics assembly
• Polyurethane adhesive and sealant dispensing for construction, marine, and transportation
• Large-volume cartridge work where matched mixer length is required for full cure

Compatible cartridges

• u-TAH Universal Cartridges
• 380 ml coaxial cartridges
• 200 ml to 1500 ml side-by-side cartridges
• Standard 1:1 and 2:1 mix ratios on Nordson 160 series platforms

Nordson TAH 160-824LL specifications

Packaging and ordering

Pair this nozzle with matching Nordson cartridges and dispensing equipment from the dispensers, mixers, and nozzles category. Manufacturer product details are available from Nordson.
