Description

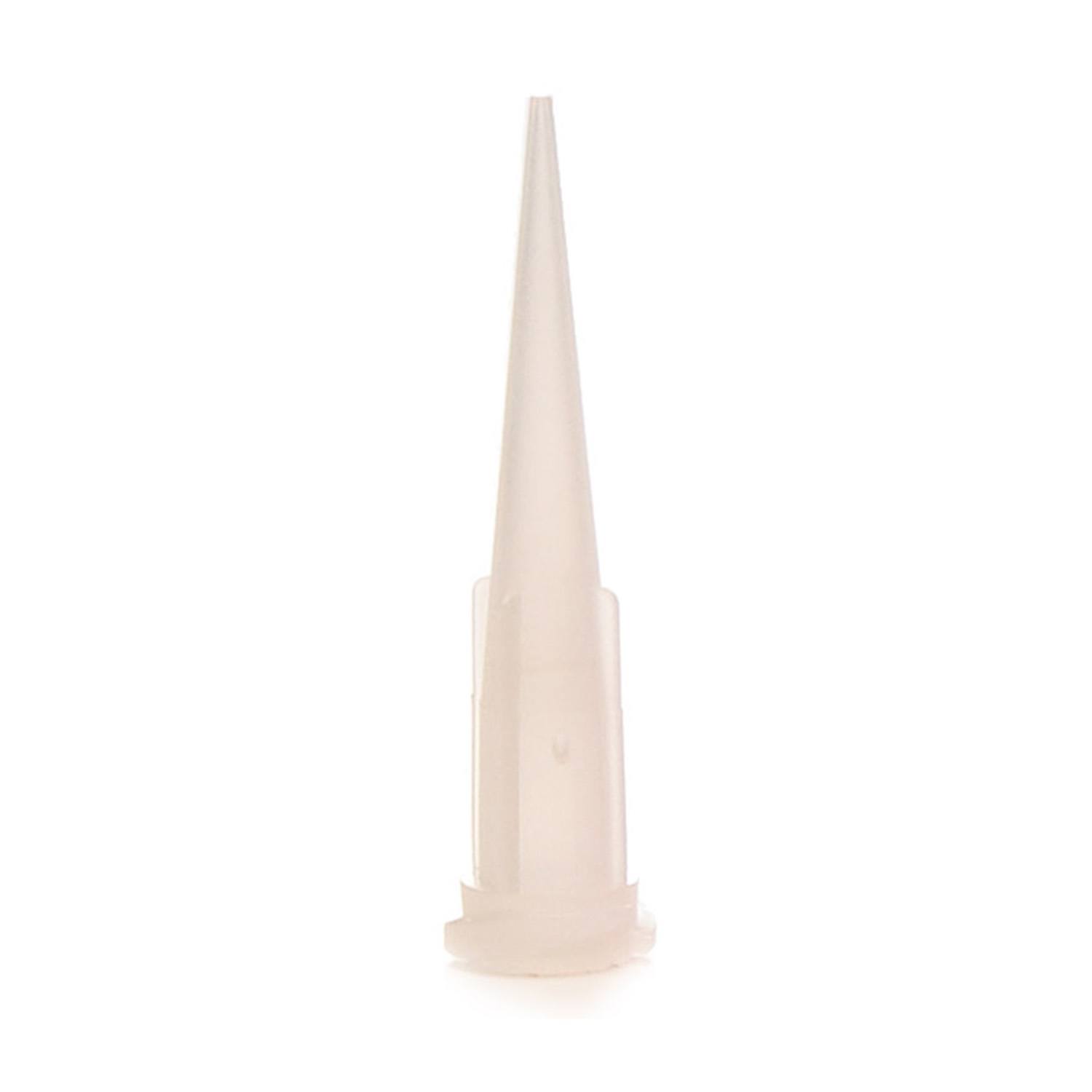

The Techcon double helix taper tip is a rigid dispensing needle built for placing medium and high viscosity fluids with precision and repeatability. The universal luer lock threads secure the tip to industrial syringes and dispense valves, and the tapered body steps fluid down to a clean orifice for controlled deposits. At 27 gauge, the tip reaches into tight spots and lays down fine beads and micro-dots.
Where the Dispensing Needle Is Used
Assembly and electronics shops use these tips for dot, bead, and fill work with adhesives, epoxies, greases, and other viscous fluids. The smooth internal fluid path reduces turbulence and air entrapment, which keeps flow consistent and cuts the dripping that back pressure can cause. The flash free orifice supports accurate, repeatable placement shot after shot, so operators hold tolerance on high-count production runs.
How the Dispensing Needle Performs
The rigid body holds its shape under pressure so the tip does not wander during placement, and the double helix thread gives a secure, leak-resistant connection to the syringe or valve. The 27 gauge bore makes micro-dot work practical where larger tips would over-apply. Each pack ships 1000 tips for steady resupply on a busy line.
Specifications
| Product | Techcon double helix taper tip |
| Gauge | 27 AWG |
| Length | 1.25 in |
| Body | Rigid, clear |
| Connection | Universal luer lock, double helix |
| Pack quantity | 1000 |
| SKU | TECTT27-DHUV-1000 |
Order these tips when a job needs precise, fine-gauge fluid placement with a secure luer connection. Browse more dispensers, mixers, and nozzles for matching syringes and valves, or review technical data on the Techcon site.
Need Help?
Need help matching tip gauge and length to your fluid and dispense valve? Call (800) 220-1966 or email [email protected].
