Description

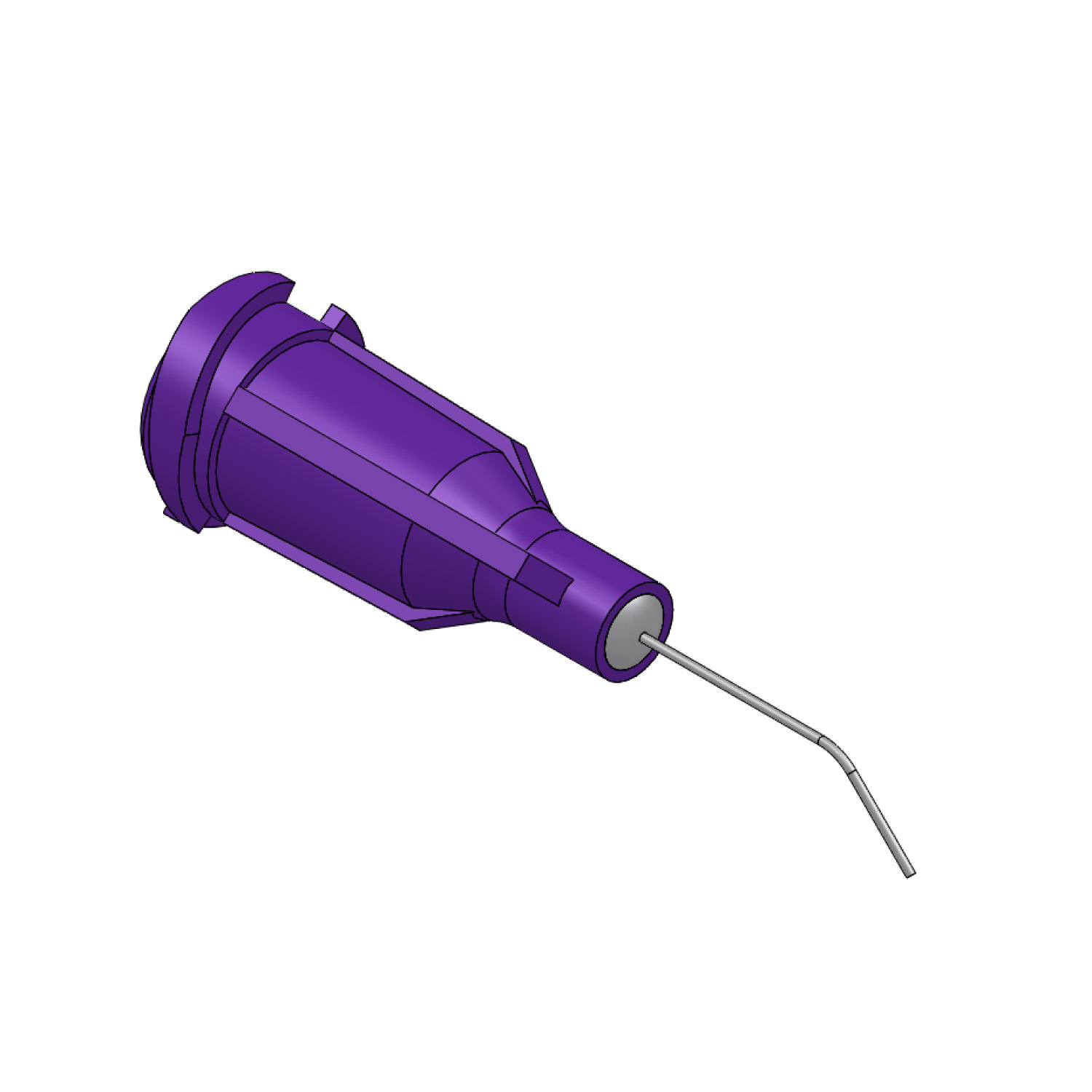

Techcon TE730 bent tip is a 30 gauge, 1/2 inch dispensing needle with a 45 degree stainless cannula for placing small dots and beads in tight areas. The lavender hub uses Techcon’s double helix luer lock design, so the tip seats securely on compatible syringe barrels, valves, and dispense adapters.
TE730 bent tip Benefits
- 45 degree bend helps reach around housings, brackets, and fixture details without tilting the syringe body too far.
- 30 gauge outlet supports very small deposits of low to medium viscosity fluids.
- Stainless cannula is burr free and electro-polished for consistent material flow.
- Double helix polypropylene hub gives a secure luer lock connection during normal dispensing pressure.
- Pack of 50 keeps a bench stocked for prototype, repair, and short production work.
Use this tip when a straight needle cannot reach the dispense point cleanly. It is useful for electronics assembly, small adhesive dots, threadlocking, light potting touchups, and detail work where the operator needs visibility at the bead. Match the gauge to the material viscosity before release, then confirm dot size on scrap or a test part.
Common Applications for TE730 bent tip
- Adhesive dots inside small plastic housings.
- Precise fluid placement around clips, bosses, and board features.
- Low-volume syringe work with UV adhesives, cyanoacrylates, oils, or primers where compatible.
- Fixture-assisted dispensing where the needle approaches from the side.
- Repair benches that need disposable bent tips ready for quick changeover.
Compatible Equipment and Materials
- Luer lock syringe barrels and dispense valves.
- Manual, pneumatic, and automated dispensing setups using compatible luer fittings.
- Low to medium viscosity materials that can pass through a 30 gauge outlet.
- Production cells that require a short bent tip for controlled reach.
TE730 bent tip Technical Specifications
| Property | Value |
|---|---|
| SKU | TEC-TE730050B45PK |
| Manufacturer part number | TE730050B45PK |
| Tip style | TE Series bent dispensing tip |
| Gauge | 30 |
| Length | 1/2 inch |
| Bend angle | 45 degrees |
| Hub color | Lavender |
| Pack quantity | 50 |
| Maximum operating pressure | 100 psi |
Packaging and Ordering
Order this pack for fine-detail dispensing stations that need a short bent needle. Browse Chemical Concepts dispensers, mixers, and nozzles for adjacent gauges, adapters, and syringe components. Review current manufacturer information from Techcon before setting a production process.
Need Help?
Need help matching gauge, bend angle, and material viscosity? Call (800) 220-1966 or email [email protected].
