Techcon TS22 1/2 in 22 Gauge Black Dispensing Needle, 1000 Pack

Description

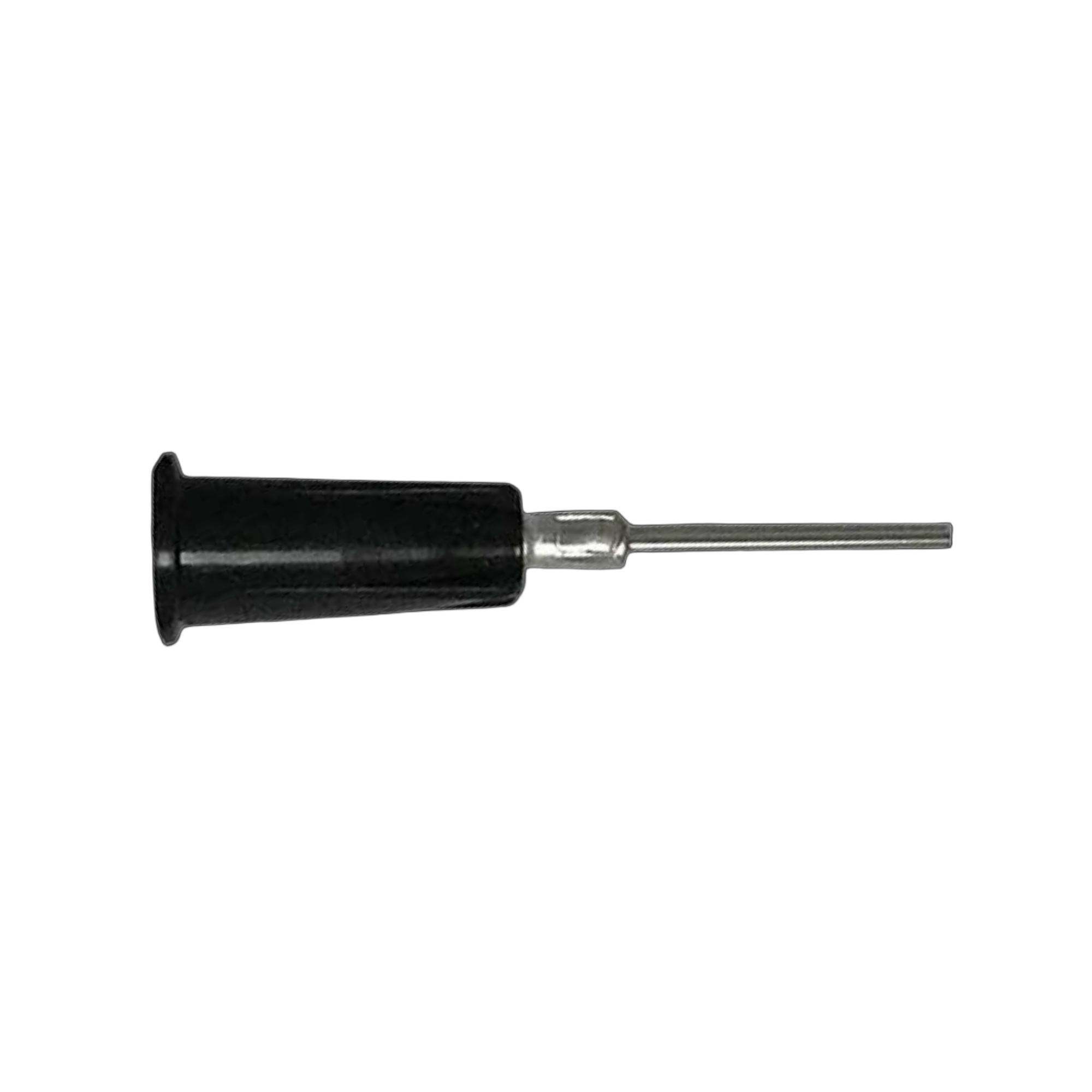

TS22 needle tips give production teams a repeatable 22 gauge outlet for controlled adhesive, sealant, oil, ink, and assembly fluid deposits. This Techcon TS Series part uses stainless steel tubing cut to 1/2 inch, ground burr free, crimped into an aluminum locking insert, and molded into a black polyethylene hub for quick gauge identification. The 1000 count bulk pack fits bench stations, automated dispense cells, and maintenance carts that need the same tip on hand across multiple shifts.

TS22 needle Benefits

• 22 gauge bore with a 0.016 inch, 0.406 mm inside diameter for fine bead control.
• 1/2 inch, 12.7 mm length helps operators reach into small joints and fixture details.
• Black molded hub follows Techcon gauge color coding for faster setup checks.
• Luer lock fit secures to compatible Techcon syringe barrels and dispense adapters.
• Bulk 1000 pack supports high-volume use without constant small-pack reordering.
• Crimped needle construction suits many low to medium viscosity production fluids.

TS22 needle Applications

• Small adhesive dots for electronics, signage, and trim assembly.
• Controlled sealant placement around compact housings and bezels.
• Touch-up fluid, lubricant, primer, and coating transfer at a bench station.
• Automated or handheld syringe dispensing where a black 22 gauge tip is specified.
• Prototype builds that need a repeatable tip before moving to larger production runs.

Technical Details

Packaging and Ordering

This item is stocked for fluid dispensing programs that use standardized needle colors and lengths. Pair it with compatible syringes and accessories from our dispensers, mixers and nozzles category. Manufacturer information is available from Techcon.

Need Help?

For help matching gauge, length, and syringe setup to your material viscosity, call (800) 220-1966 or email [email protected].
