Cox VBM 200 Manual Dispenser, 400 mL, 1:1

Description

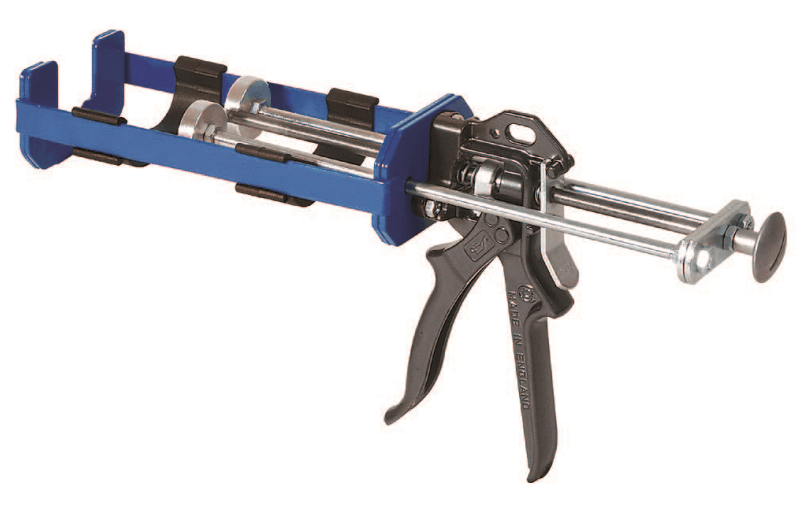

VBM 200 dispenser is a Cox manual two-component applicator for 400 mL, 1:1 side-by-side cartridges. The master product row identifies this SKU as the top-load VBM 200 with 200 x 200 mL cartridge capacity, dedicated 1:1 mix ratio, and Cox part number DM2C 400-01-R18-012. Public product references describe the VBM 200 as a manual cartridge gun for precise bonding and sealing with common 1:1 two-part adhesives.

VBM 200 dispenser Uses

• Dispensing 400 mL 1:1 epoxy, polyurethane, acrylic, and other two-part cartridge materials.
• Countertop, sign, transportation, and manufacturing jobs that need handheld bead control.
• Repair work where a manual tool is simpler than pneumatic equipment.
• Small production cells that need repeatable flow without a fixed meter-mix system.
• Training and trial work before a higher-volume dispensing process is selected.

The tool supports controlled dispensing, but the final mix quality depends on the cartridge, plunger set, static mixer, and material condition. Use a mixer that matches the cartridge outlet and adhesive viscosity. Purge a small amount before the bond line when the adhesive data sheet calls for it, especially after a cartridge has been sitting between beads.

VBM 200 dispenser Setup Notes

Load the 400 mL cartridge squarely, check that the plungers match the 1:1 package, and attach the correct static mixer. Advance slowly until both components reach the mixer evenly. If one side lags, stop and inspect the cartridge, plunger alignment, and outlet seal before applying material to finished parts.

Document the adhesive brand, cartridge style, mixer part, and purge practice for repeat jobs. Small setup notes reduce scrap and help the next technician avoid guessing which accessory belongs with the cartridge.

For compatible cartridges, static mixers, and applicator accessories, browse Chemical Concepts dispensers, mixers, and nozzles. Manufacturer information is available from Cox Dispensers.

Ordering Help

For help matching a VBM 200 dispenser to your 400 mL cartridge and mixer, call (800) 220-1966 or email [email protected].
