LORD 406/19 (4:1) Acrylic Adhesive

SKU: LORD 406/19 (4:1)

From: $19.57

  • Expert Support

  • 50+ Years of Experience

  • Same Day Shipping*

*On in-stock items, placed by 2pm EST

Ask An Expert

Our engineers are ready to help!

Get In Touch Now

Description

LORD® 406/19 can be used to replace welding, brazing, riveting and other mechanical fastening methods. These adhesives perform particularly well in low-temperature environments and applications that are subject to high impact or high peel loads. LORD 403, 406 and 410 acrylic adhesives provide a range of working times to accommodate a wide variety of process requirements.

Features and Benefits

  • Versatile bonds a wide range of unprepared metals with minimal substrate preparation, as well as engineered thermoplastics including XENOY, polycarbonate, ABS and acrylics.
  • Temperature Resistant performs at temperatures from -40°F to +300° (-40°C to +149°C).
  • Environmentally Resistant resists dilute acids, alkalis, solvents, greases, oils, moisture, salt spray and weathering; provides excellent resistance to indirect UV.
  • Non-Sag remains in position when applied on vertical or overhead surfaces, allowing for greater process flexibility.
  • UL Rated when mixed with LORD Accelerator 19, adhesive system is UL 746C certified.

Typical Properties

Appearance Off-White to Tan Paste
Viscosity, cP @ 77°F (25°C) 100,000 – 300,000
Density, lb/gal (kg/m^3) 9.1-9.7 (1090-1162)
Flash Point, °F (°C) 59 (15)

Typical Properties of Adhesive Mixed w/ Accelerator

Mix Ratio by Weight 3.02:1
Mix Ratio by Volume 4:1
Solids Content, % 100
Working Time, min @ 75°F (24C) 6-10
Time to Handling Strength, min @ 75°F (24C) 12-17
Mixed Appearance Tan Paste
Cured Appearance Tan to Green

Typical Cured Properties

Tensile Strength at Break, psi (MPa)
ASTM D638, modified
4650 (32.1)
Elongation, %
ASTM D638, modified
30
Young’s Modulus, psi (MPa)
ASTM D638, modified
130,000 (896.3)
Glass Transition Temperature, °F (°C)
ASTM E1640-99, by DMA
162 (72)



Pak CX (404 ml) Pak-50 (50 ml) 415ml Side x Side Cartridge


Cox
M380 CX Applicator Gun – 380 ml

(select 4:1 mix ratio)


Chem-Set™ PAK-50 Gun

(select 4:1 mix ratio)


Albion B26T400X4 Professional Gun

(4:1 mix ratio)


TAH 160-824 Static Mixer

TAH 190-620 Static Mixer

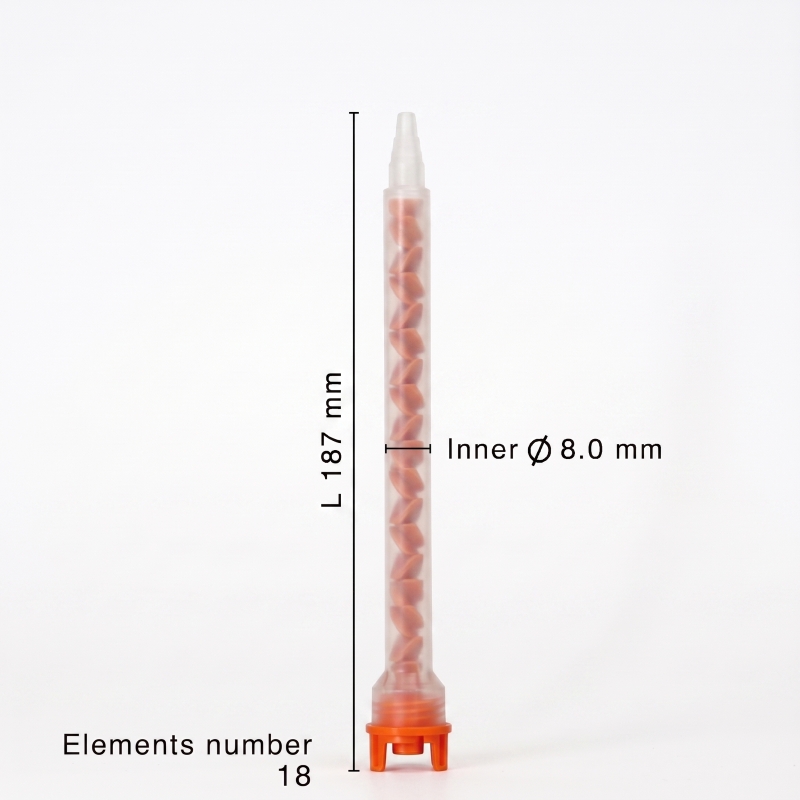

MFHX 08-18 Static Mixer

Additional information

Weight 1 lbs
Dimensions 6 × 6 × 6 in
Manufacturer

Component

Ratio

Must Ship Freight

Color

Tan

Country Of Manufacture
