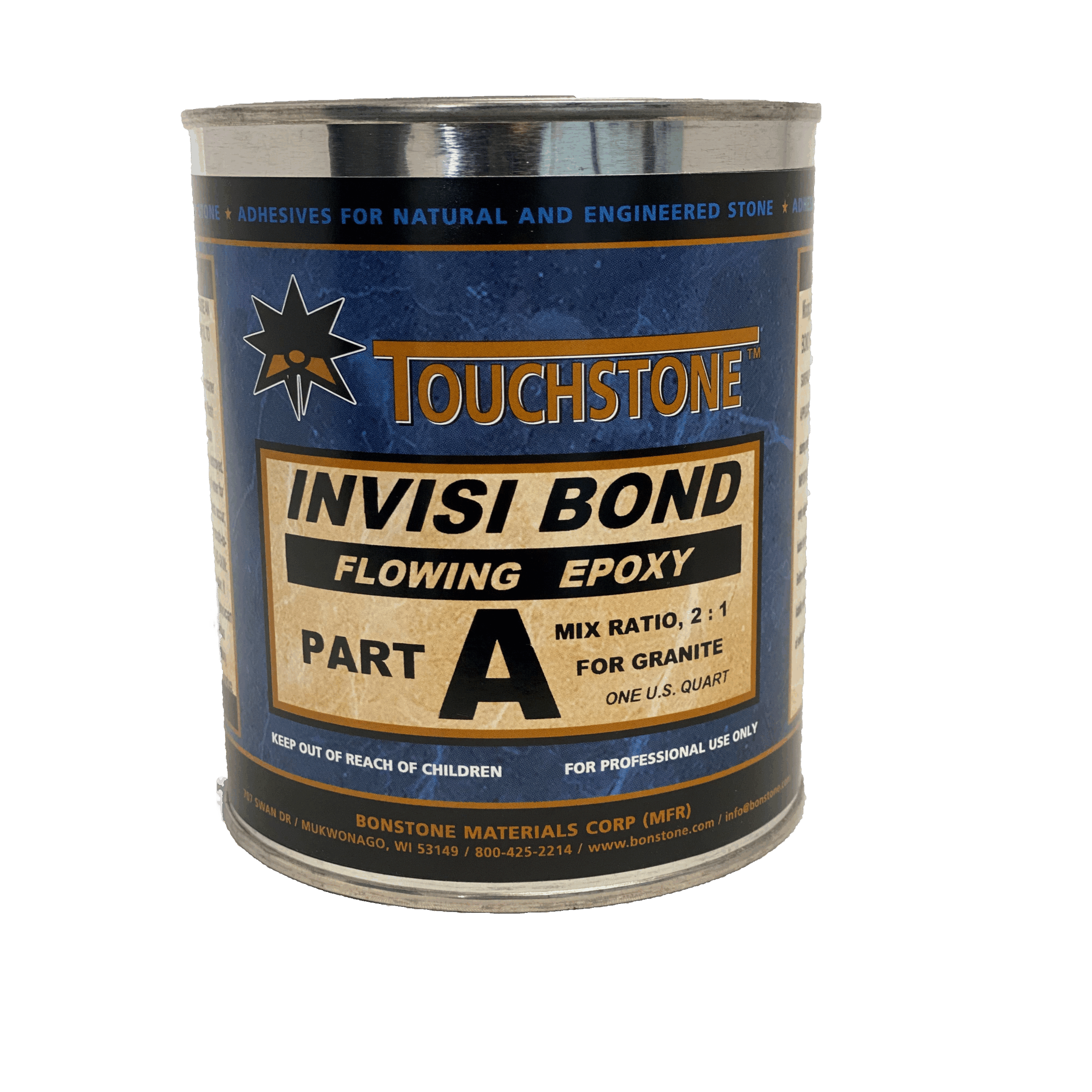

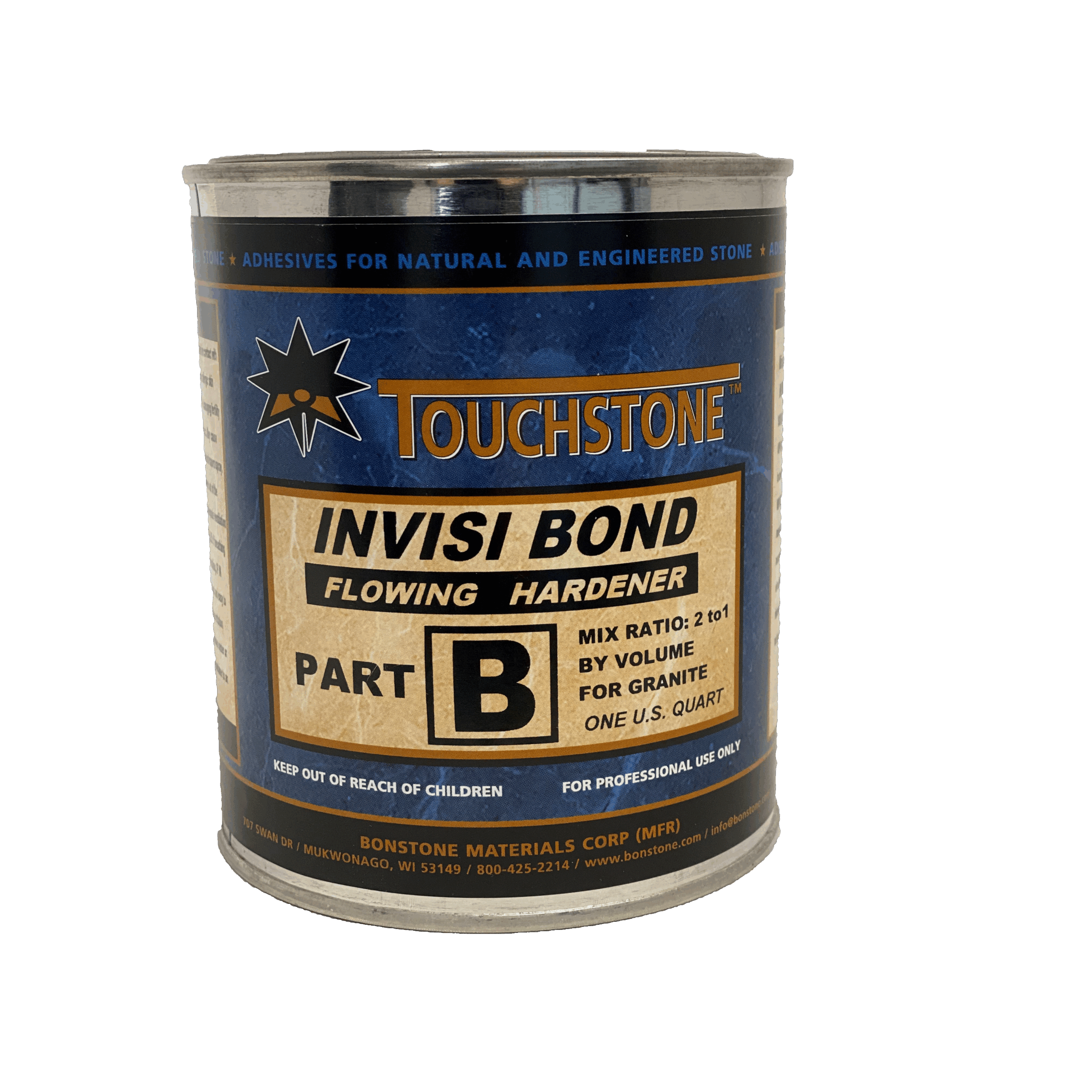

Bonstone Invisibond Clear Flowing Epoxy

SKU: BON-INVISIBOND

  • Expert Support

  • 50+ Years of Experience

  • Same Day Shipping*

*On in-stock items, placed by 2pm EST

Ask An Expert

Our engineers are ready to help!

Get In Touch Now

Description

Bonstone Invisibond clear flowing epoxy is a two-part, 2:1 epoxy for laminating and bonding stone countertops. It lays down a thin, tight, water-clear bond line that grinds and polishes with the stone and does not shrink as it cures. Fabricators use it for countertop lamination, bullnose and miter work, rodding, and laminating clear honeycomb panels to the back of translucent stone for backlit installations. Made in USA by Bonstone Materials.

Invisibond is a flowing epoxy, so it is applied to horizontal surfaces. The full lamination process is laid out below the specs.

Key Product Details

Property Value
Chemistry Two-part epoxy
Viscosity Flowing
Color Clear (water clear)
Mix Ratio 2:1 by volume (2 parts A to 1 part B)
Pot Life 15 minutes
Set Time at 75°F (24°C) 2 hours
Full Cure 24 hours
Application Conditions Interior and exterior, horizontal
Recommended Application Temp 75°F (24°C)
Minimum Material and Substrate Temp 55°F (13°C)
Coverage 30 sq ft per gallon at 0.050 in (50 mils)
Country of Manufacture USA
Available Kits Quart Kit, Gallon Kit, 5 Gallon Pail Kit

Cured Properties and Test Data

Property Result Test Method
Tensile Strength 3,058 psi ASTM D-638
Tensile Modulus 573,157 psi ASTM D-638
Flexural Modulus 374,423 psi ASTM D-790
Elongation at Break 0.63% ASTM D-638
Shore D Hardness 80 ASTM D-1706
Heat Distortion Temperature 135°F (57°C) ASTM D-648
Bond Test Result (stone failure) 4,736 psi ASTM D-905-89

Set Time by Temperature

Temperature Set Time
60°F (16°C) Doubled, about 4 hours
75°F (24°C) 2 hours
90°F (32°C) Cut in half, about 1 hour

Performance in Production

  • Flowing viscosity spreads on its own and lays down a thin, tight bond line. The TDS lists horizontal application only.
  • Cures water-clear and polishable, so cured joints can be ground and polished with the surrounding stone. Wear a dust mask when grinding.
  • In the ASTM D-905-89 bond test, the stone failed before the adhesive did.
  • Does not shrink on cure, which helps keep laminations and miters tight.
  • Suited to high-humidity and freeze-thaw conditions, and holds up through rigorous machining.
  • Cure speed follows temperature. A cold shop slows the set and a warm one speeds it up. Material and stone must both be at least 55°F (13°C).
  • 15-minute pot life. Mix only the amount you can use in 10 minutes.
  • Extended cold storage can leave Part A and Part B stiff and grainy. Warm to 150°F and stir until smooth before mixing.
  • Can be tinted with Bonstone Liquid Tints and dispensed with the Easy Mix Dispenser.

Common Applications

  • Countertop fabrication
  • Laminating, mitering, and bullnose work on stone countertops
  • Laminating clear honeycomb panels to the back of translucent stone for backlit installations
  • Rodding countertops
  • Structural bonding of stone
  • Laminating stone to other construction materials
  • Exterior horizontal applications, including outdoor kitchen and patio stone

Available Sizes

  • Quart Kit (2 qt A + 1 qt B, 3 qt total): BON-41009
  • Gallon Kit (2 gal A + 1 gal B, 3 gal total, easy-pour bottles): BON-41003
  • 5 Gallon Pail Kit (2 pails A + 1 pail B, 15 gal total): BON-41005

Related Products

How Stone Lamination with Invisibond Works

  1. Confirm the stone is completely dry and dust free, and free of oil, grease, and coatings.
  2. Check temperatures. Material and stone must be at or above 55°F (13°C), and 75°F (24°C) is the recommended application temperature.
  3. If Part A or Part B has been stored cold and looks stiff or grainy, warm it to 150°F and stir until it is a uniform liquid.
  4. Mask any area that must stay free of adhesive.
  5. Mix 2 parts A to 1 part B by volume. Mix only the amount you can use in 10 minutes. Add Bonstone Liquid Tints at this step if you need color.
  6. Apply to the horizontal bond surface and assemble the lamination.
  7. Leave the joint alone until it has fully cured. Full cure is 24 hours, and cooler temperatures extend it. Avoid stressing the joint before then.
  8. Grind and polish cured joints as needed, wearing a dust mask.
  9. Clean uncured material off tools with toluene or xylene. Both are flammable, so ventilate the area. Cured material has to be removed mechanically.

The TDS lists dry stone as the substrate. For stone you have not bonded before, call us or run a sample first.

Laminating Clear Honeycomb Panels to Backlit Stone

Fabricators laminate a clear honeycomb panel, such as CEL Clearstep, to the back of translucent stone for lighting applications. Invisibond cures water-clear, which matters when light has to pass through the bond line. On a large panel, mix in batches you can place inside the 10-minute window.

Backlit lamination is not a listed TDS application, so run a sample lamination on your stone and panel before production.

Frequently Asked Questions

What is Bonstone Invisibond used for?

Bonstone Invisibond is a two-part clear flowing epoxy, also called a laminating epoxy, for countertop fabrication, stone lamination, bullnose and miter work, rodding, and structural bonding. It cures water-clear and polishable. It is made in the USA by Bonstone Materials.

What epoxy laminates a clear honeycomb panel to translucent stone for backlighting?

Fabricators use Bonstone Invisibond for this. It cures water-clear, so the bond line stays clear. The honeycomb panel, such as CEL Clearstep, is laminated to the back of the stone. Run a sample first.

What are the mix ratio, working time, and cure time of Invisibond?

Mix 2 parts A to 1 part B by volume. Pot life is 15 minutes, set time is 2 hours at 75°F, and full cure takes 24 hours. Mix only what you can use in 10 minutes.

Can I use Invisibond outdoors, and is it UV stable?

It is rated for interior and exterior horizontal use. It is not listed as UV stable. Minimal yellowing and chalking will occur under UV exposure. If the joint will sit in direct sun, call us.

What temperature does Invisibond need to cure?

Material and stone must be at least 55°F (13°C), and 75°F (24°C) is recommended. Every 15°F change doubles or halves cure speed. Do not apply to stone below 55°F.

Why is my Invisibond stiff or grainy?

Extended cold storage can make Part A and Part B crystallize, which leaves them stiff and grainy. Warm the material to 150°F and stir until it is a uniform liquid before you mix.

Can I tint Invisibond or dispense it with a pump?

Yes to both. Tint it with Bonstone Liquid Tints and dispense it with the Easy Mix Dispenser. Gallon kits come in easy-pour bottles.

What kit sizes does Invisibond come in?

Three kits: a quart kit (2 qt A + 1 qt B, 3 qt total), a gallon kit (2 gal A + 1 gal B, 3 gal total), and a 5 gallon pail kit (2 pails A + 1 pail B, 15 gal total).

Questions on fit for your stone lamination or backlit panel project? Call (800) 220-1966 or email [email protected].
