Description
Permabond UV6302 is an ultra-low viscosity, fast-curing UV adhesive engineered for high-strength plastic bonding and precision capillary wicking. Its extremely low viscosity (50–100 mPa·s) allows the adhesive to penetrate deep into tight-fitting joints and post-assembled components, creating clear, strong, professional bondlines.
This single-component methacrylate adhesive cures rapidly under UV light between 365 and 420 nm, delivering short fixture times and excellent process control for high-volume production.
UV6302 bonds strongly to polycarbonate, PMMA, and rigid PVC and maintains performance down to –55 °C withstanding brief exposure to elevated temperatures.
Key Features and Benefits
-
Ultra-low viscosity for exceptional capillary wicking
-
Fast UV curing with low-power 365–420 nm lamps
-
Fixture in 4–30 seconds depending on substrate
-
High strength on plastics including PC, PMMA, and rigid PVC
-
Clear, non-yellowing, 100 percent solids formula
-
High mechanical performance:
-
PC shear strength >7 N/mm² (>1000 psi)
-
PVC shear strength >2 N/mm² (>300 psi)
-
Tensile strength 15–20 N/mm² (2200–2900 psi)
-
Elongation 100–150 percent
-
Shore D hardness 50–65
-
-
Excellent thermal tolerance from –55 °C upward
Common Applications
-
Bonding polycarbonate and acrylic components
-
Capillary wicking into tight seams or pre-assembled joints
-
Clear display and optical bonding
-
Small plastic component assembly
-
High-speed UV-cure production lines
-
Electronics and consumer product housings
Technical Specifications
| Property | Value |
|---|---|
| Chemistry | Methacrylate ester |
| Appearance | Clear, colorless |
| Viscosity @ 25 °C | 50–100 mPa·s |
| Specific Gravity | 1.10 |
| Cure Wavelength | 365–420 nm |
| Fixture Time* | PC: 25–30 s; PVC: 5–7 s; PMMA: 4–5 s |
| Shear Strength | PC >7 N/mm²; PVC >2 N/mm²; PMMA 1.5–2 N/mm² |
| Tensile Strength | 15–20 N/mm² |
| Elongation | 100–150 percent |
| Hardness | 50–65 Shore D |
| Refractive Index | 1.474 |
| Temperature Resistance | –55 °C and brief high-temp exposure |
| Solvent Content | None |
*Based on low-power handheld UV lamp. Industrial systems cure faster.
Compatible Substrates
-
Polycarbonate
-
PMMA / Acrylic
-
Rigid PVC
-
UV-transmitting plastics
-
Glass
-
Select engineering plastics
Packaging and Ordering Information
-

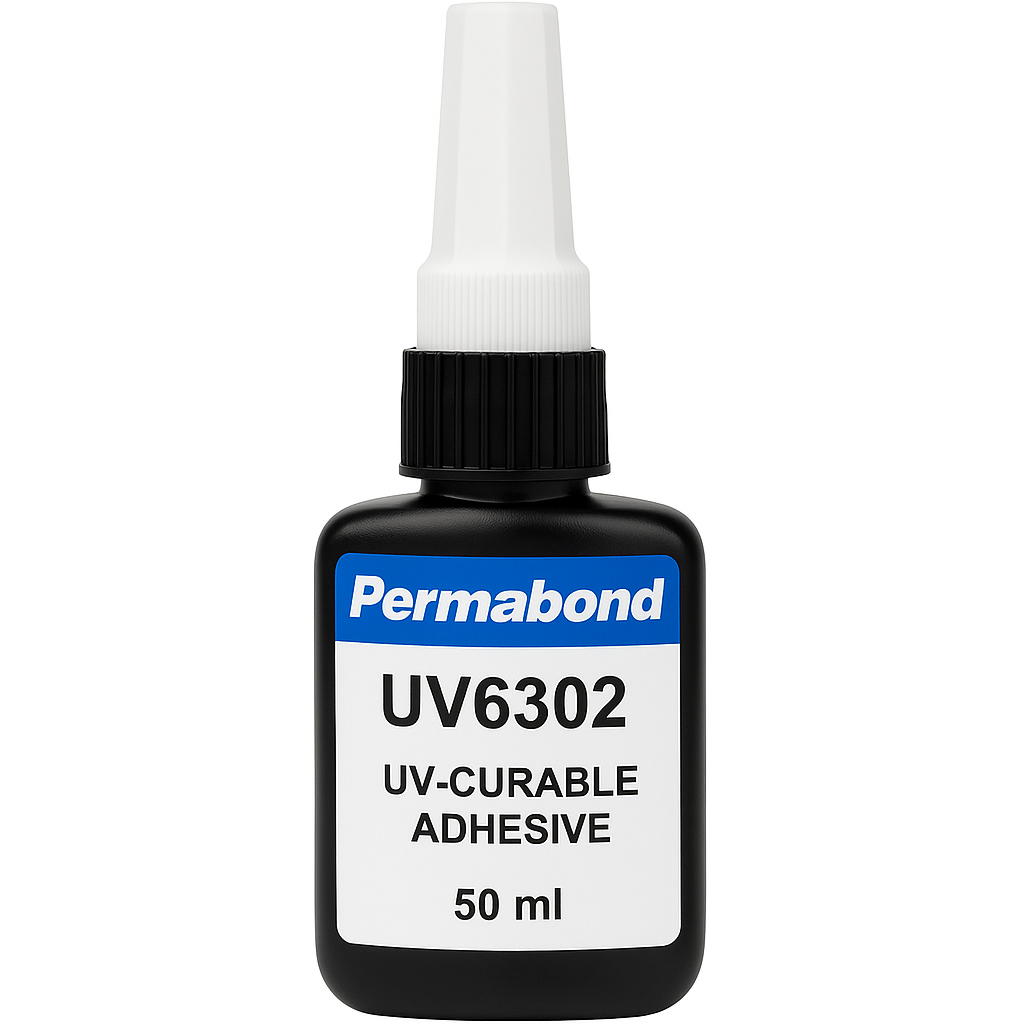

Standard: 50 ml bottle
-
Bulk and production sizes available upon request
-
Suitable for manual, pneumatic, and automated dispensing
Need Help Choosing a UV Adhesive?
Our technical team can help match UV6302 to your exact application.
Call 800-220-1966 or email [email protected].
