Description
QM True Skin 50 is a two-component, moderate temperature, addition cure silicone material. With a one-to-one mix ratio, the cured rubber is very soft, has excellent mechanical properties, low fluid bleed and good shelf-life stability. This material is an outstanding choice for skin molding and benefit applications in which translucent material with a low durometer and high elongation is required.
| Packing | Weight | Mix Ratio |

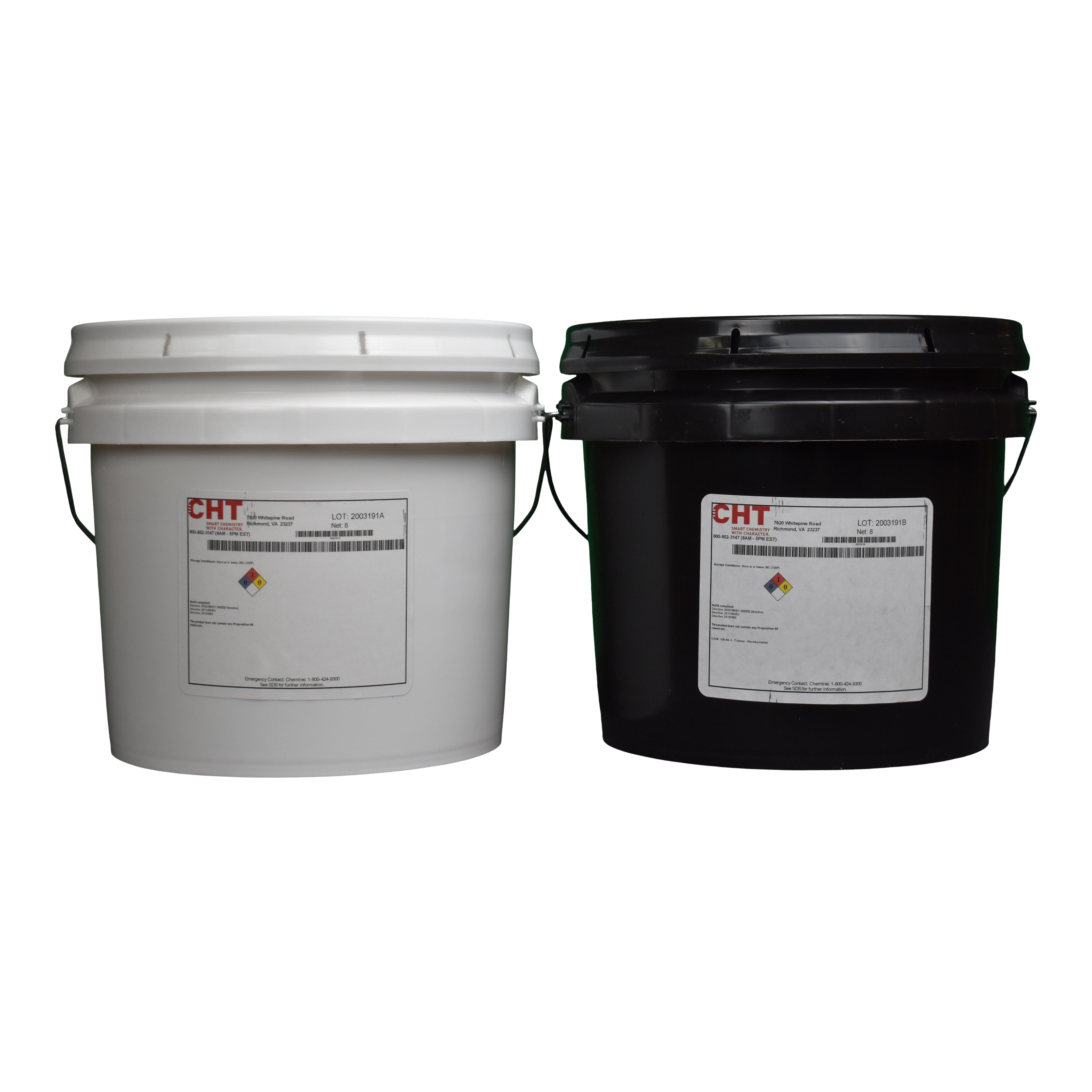

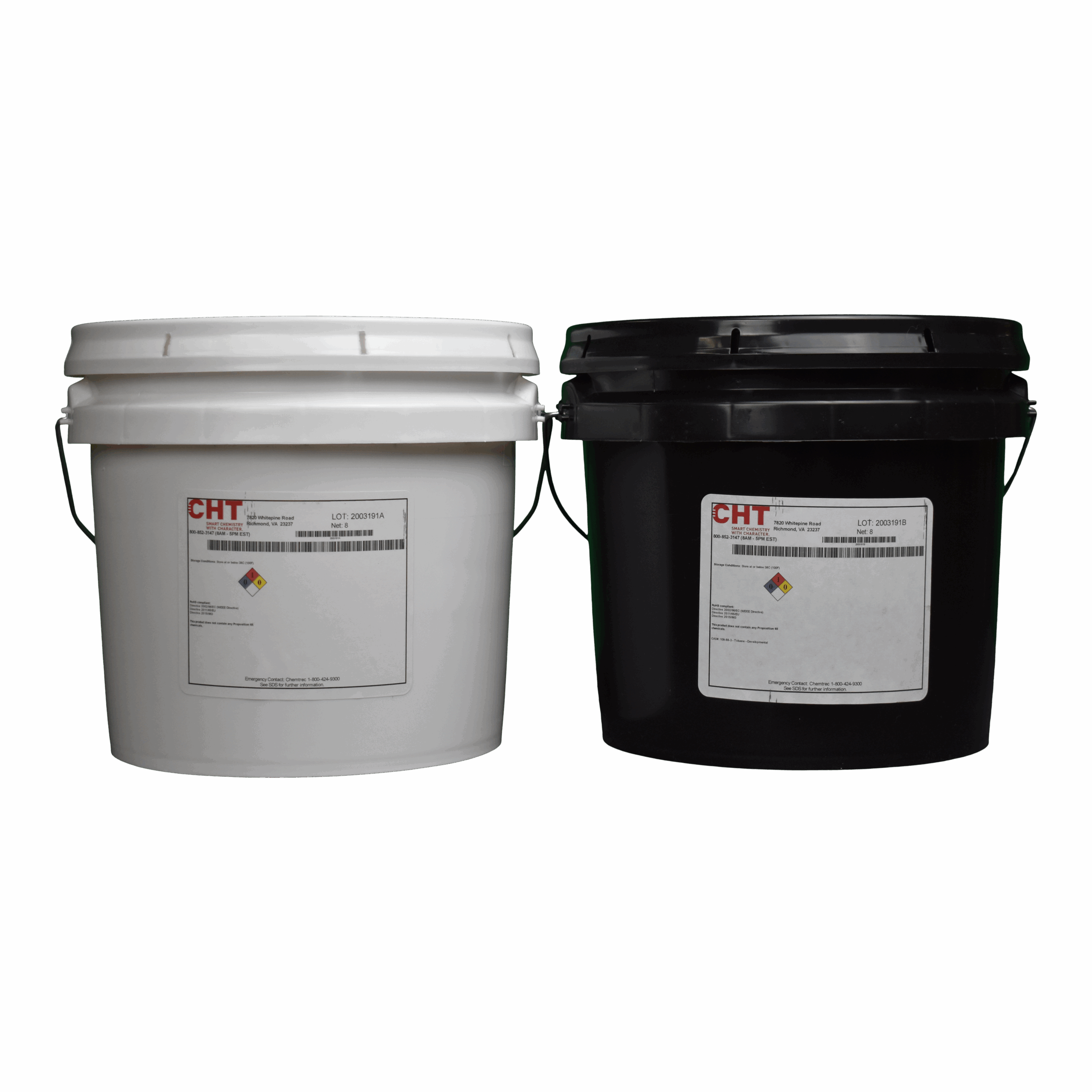

| Gallon Pail Kit | 16 lbs | 1:1 |
| 5 Gallon Pail Kit | 80 lbs | 1:1 |
| 55 Gallon Drum Kit | 900 lbs | 1:1 |
KEY FEATURES
- Low viscosity
- High elongation
- Excellent toughness
- Fast demold time
- Translucent and pigmentable
MAIN APPLICATIONS
- Special effects
- Skin replication
- Applications where pigmentation is required
| Uncatalyzed | |||||
| TEST | QM True Skin 50 A | QM True Skin 50 B | |||
| Appearance | Translucent | Translucent | |||
| Viscosity | 15,000 cps | 15,000 cps | |||
| Specific Gravity | 1.05 | 1.05 | |||
| Catalyzed | |
| MIX RATIO 1:1 by weight | |
| PROPERTY | RESULT |
| Catalyzed Color | Translucent |
| Gel Time at 25°C | 105 minutes |
| Cured Properties | |
| 30 Minutes at 90°C | |
| Durometer, Shore 00 | 48 |
| Tensile | 325 psi |
| Elongation | 835 % |
| Tear | 3 ppi |
| Linear Shrinkage | < 0.1 % |
| Useful temperature range | -55° – 204°C |
| 100% Modulus | 27 |
| 200% Modulus | 45 |
| 300% Modulus | 79 |
