Description
CHT QSil 553 is a two-component, platinum-cured silicone elastomer system specifically engineered for potting and encapsulating sensitive electronics. With excellent thermal stability, chemical resistance, and soft mechanical properties, QSil 553 provides long-lasting protection from vibration, impact, and harsh environmental exposure.
It cures into a resilient gray silicone rubber that maintains flexibility across a wide temperature range. Its long pot life (100 minutes) makes it ideal for bulk pours, large parts, and processes requiring time for degassing or setup.
Key Features & Benefits
-
Soft, gray elastomer with excellent flexibility
-
1:1 mix ratio (by weight)
-
Long pot life (~100 minutes)
-
Thermal conductivity: ~0.68 W/m·K
-
Electrical insulator with 500 V/mil dielectric strength
-
UL94 V0 rated (File No. E205830)
-
Resistant to environmental contamination and vibration
-
Can be hand-mixed or machine-dispensed
-
Easily repairable after cure
Common Applications
-
Automotive ECU or sensor encapsulation
-
Potting of PCB assemblies and wire junctions
-
Electrical insulation in high-heat environments
-
Thermal shock- and vibration-sensitive electronics
-
Applications requiring flame retardancy (UL94 V0)
Technical Specifications
| Property | Value |
|---|---|
| Mix Ratio (by weight) | 1:1 |
| Cure Type | Addition |
| Pot Life @ 23°C | 100 minutes |
| De-mold Time @ 23°C | 24 hours |
| Viscosity (mixed) | 6,000 cP |
| Color | Gray |
| Hardness (Shore A) | 45 |
| Elongation at Break | 240% (ISO 37) |
| Tensile Strength | 249 psi (1.72 N/mm²) |
| Tear Strength | 7.8 N/mm (45 ppi) |
| Thermal Conductivity | ~0.68 W/m·K |
| Operating Temp Range | -55°C to +240°C |
| Dielectric Strength | 500 V/mil |
| Dielectric Constant / Dissipation | 3.08 / 0.009 |
| Volume Resistivity | 4.02 × 10¹⁴ ohm·cm |
| UL File No. | E205830 (UL94 V0) |
| Shelf Life | 24 months |
Compatible Substrates
-
Rigid/flexible PCBs
-
Plastic housings (ABS, polycarbonate)
-
Wire harnesses and terminals
-
Power electronics and sensors
-
Metal enclosures with proper prep
Packaging & Ordering Info
| Size | Format | Mix Ratio | Contents (A/B) |
|---|---|---|---|
| 50 ml Cartridge | Dual Cartridge | 1:1 | Pre-filled |
| 400 ml Cartridge | Dual Cartridge | 1:1 | Pre-filled |
| 2 Kg Kit | Quart | 1:1 | 1 kg A / 1 kg B |

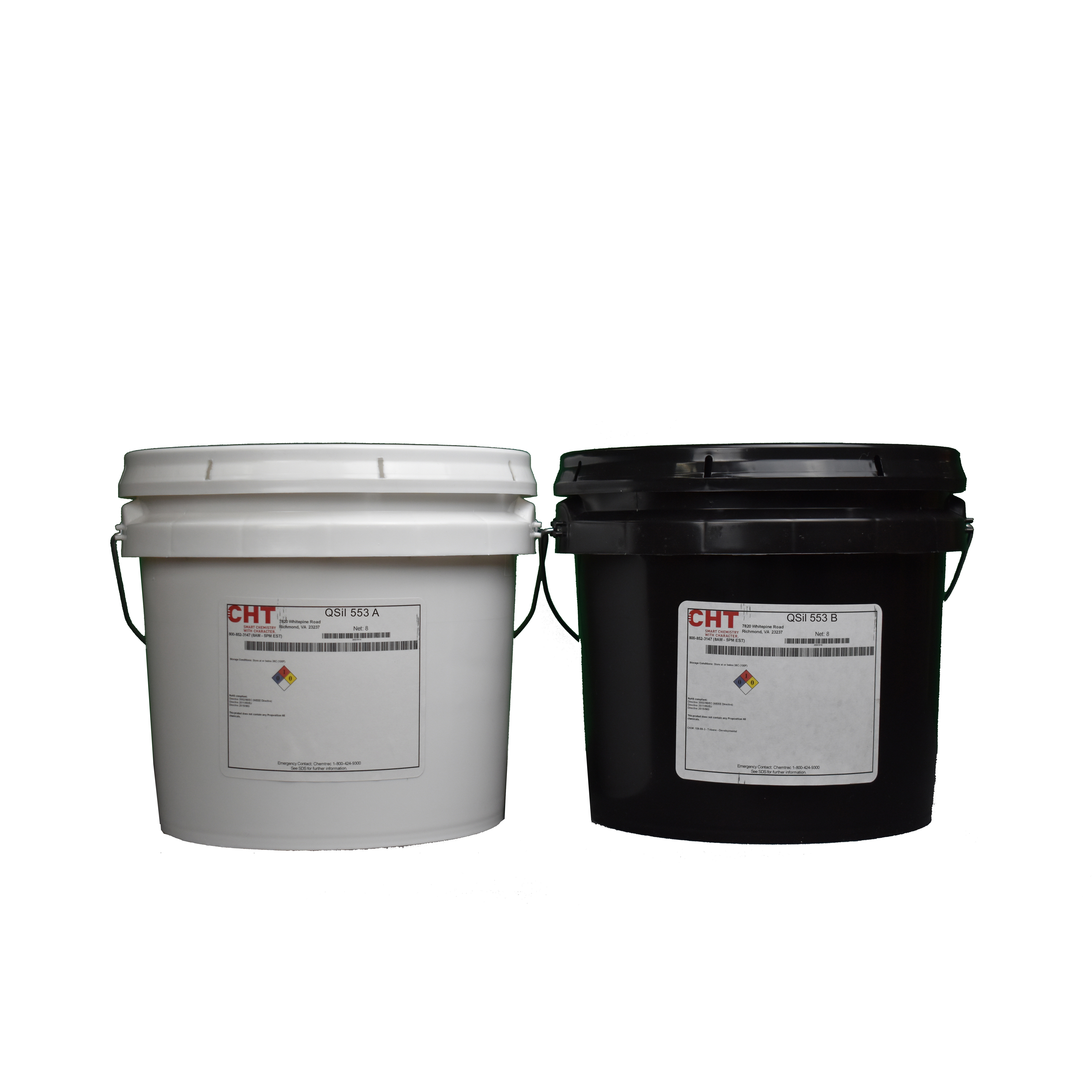

| 10 Kg Kit | Gallon | 1:1 | 5 kg A / 5 kg B |
| 44 Kg Kit | Pail | 1:1 | 22 kg A / 22 kg B |
| 440 Kg Kit | Drum | 1:1 | 220 kg A / 220 kg B |
📞 Ready to Order?
Have questions or need help selecting the right packaging or dispensing system?
Call 800-220-1966 or email [email protected] for support.
Explore more options in our Potting Silicone Collection.
