Description

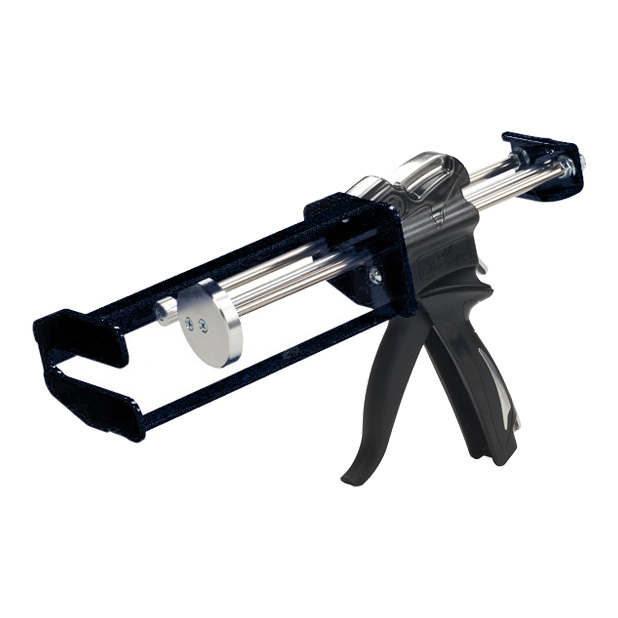

SSF-52X manual gun is the 490 mL 10:1 hand applicator listed for Weld-On 30, 31, and 32 cartridge adhesives. It gives sign, display, and fabrication teams a high-thrust option for side-by-side cartridges when they need steady manual dispensing without moving to pneumatic equipment.
Benefits of the SSF-52X manual gun
- 52:1 mechanical thrust ratio helps operators push higher-viscosity adhesive cartridges with less hand strain.
- Built for 490 mL 10:1 side-by-side cartridges used in Weld-On structural adhesive work.
- 4.9 kN maximum force supports controlled output on demanding shop jobs.
- Aluminum alloy handle and reinforced trigger construction fit repeated production use.
This dispenser is a practical fit for countertop, sign, display, and plastics assembly shops that run larger two-part cartridges and want a durable hand tool on the bench. The accessory guide ties it to Weld-On 30, 31, and 32, while the SSF manufacturer page lists a 2.6 mm stroke, 400 to 490 mL capacity range, and suitability for cold-weather or high-viscosity materials.
Applications for SSF-52X manual gun
- Dispensing Weld-On 30, 31, and 32 from 490 mL cartridges.
- Shop bonding work in sign and display fabrication.
- Manual application of two-part acrylic or structural adhesive beads in larger assemblies.
- Bench and field jobs where crews need cartridge control without an air line.
Compatible Cartridges and Use Notes
- Fits 10:1 side-by-side cartridges in the 400 to 490 mL range.
- Assembly Adhesives lists mixing tip #150350 for 490 mL Weld-On cartridges used with this gun.
- Chrome-plated push rod, steel carriage, and aluminum pistons are part of the published build details.
- Use when a manual applicator is preferred over pneumatic or battery tools.
SSF-52X manual gun Technical Specifications
| Property | Value |
|---|---|
| Product Type | Manual two-component applicator gun |
| Cartridge Ratio | 10:1 side-by-side |
| Cartridge Capacity | 400 to 490 mL |
| Mechanical Thrust Ratio | 52:1 |
| Maximum Force | 500 kgf / 4.9 kN |
| Stroke | 2.6 mm |
| Carriage Length | 210 mm / 8.27 in. |
| Recommended Adhesives | Weld-On 30, 31, and 32 |
Packaging and Ordering
This gun is a straightforward choice when your process already uses 490 mL 10:1 Weld-On cartridges and needs a matching hand applicator. Browse our dispensers, mixers, and nozzles category for related cartridge tools, and visit SCIGRIP for the broader Weld-On adhesive line.
Need Help?
If you need help matching a gun, cartridge, or mixing tip to your adhesive, call (800) 220-1966 or email [email protected].
