Description

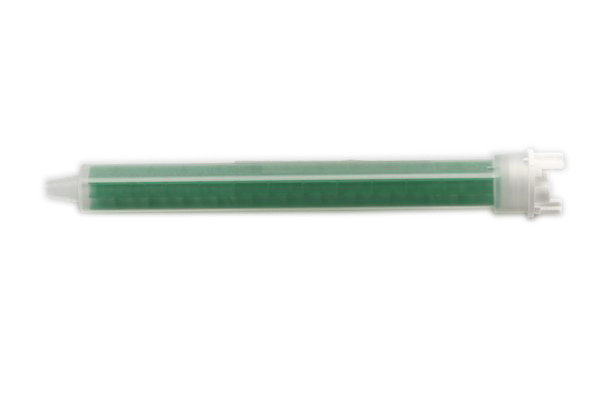

Permabond MFQ10-24T Quadro Static Mixer is an industrial MFQ10-24T static mixer for square 200 mL and 400 mL cartridge setups that need disposable two-part mixing at the nozzle. Chemical Concepts identifies this part with the Sulzer Quadro style and a 24-element flow path, which makes it a common bench and production consumable for structural adhesives, sealants, and repair compounds dispensed from side-by-side cartridges.
MFQ10-24T Static Mixer Benefits
- 24 mixing elements help bring Part A and Part B together before the bead reaches the work surface.
- Square Quadro body style fits common 200 mL and 400 mL cartridge systems used in fabrication shops.
- Disposable format keeps cured adhesive out of the line and shortens cleanup between cartridge changes.
- Stepped tip lets crews trim the outlet for bead size control when process requirements change.
- Interlock style connection supports secure attachment on matched cartridge hardware.
medmix MIXPAC documentation for the F-System series lists the 10-24T mixer family as a 24-element design with stepped outlet geometry and an interlock attachment style. That combination makes the mixer a good fit for countertop adhesives, composite assembly, repair compounds, and other two-part materials where the shop wants cartridge convenience instead of hand mixing.
Common Applications for Quadro Mixers
- Dispensing two-part acrylics and epoxies from 200 mL or 400 mL cartridges.
- Bench assembly where a fresh mixer is used for each cartridge or job.
- Countertop, sink, and solid surface fabrication using side-by-side adhesive systems.
- Maintenance repairs where operators need clean nozzle replacement instead of cleanup time.
MFQ10-24T Static Mixer Technical Specifications
| Property | Value |
|---|---|
| Brand | Permabond |
| SKU | PERDD400MLSTATICMIXER03 |
| Part Style | MFQ10-24T Quadro square mixer |
| Cartridge Fit | 200 mL and 400 mL side-by-side cartridges |
| Mixing Elements | 24 |
| Attachment | Interlock |
| Outlet | Stepped tip |
Packaging and Ordering
Order this mixer when your line is already set up around square 200 mL and 400 mL cartridge dispensing and you want a clean, single-use nozzle path on each job. See our dispensers, mixers, and nozzles category for related sizes, and review cartridge system guidance from medmix.
Need Help?
If you need help matching this mixer to a cartridge frame, ratio, or adhesive family, call (800) 220-1966 or email [email protected].
