Albion 6-Piece CAT Caulk Tooling Spatula Set, Stainless Steel

Description

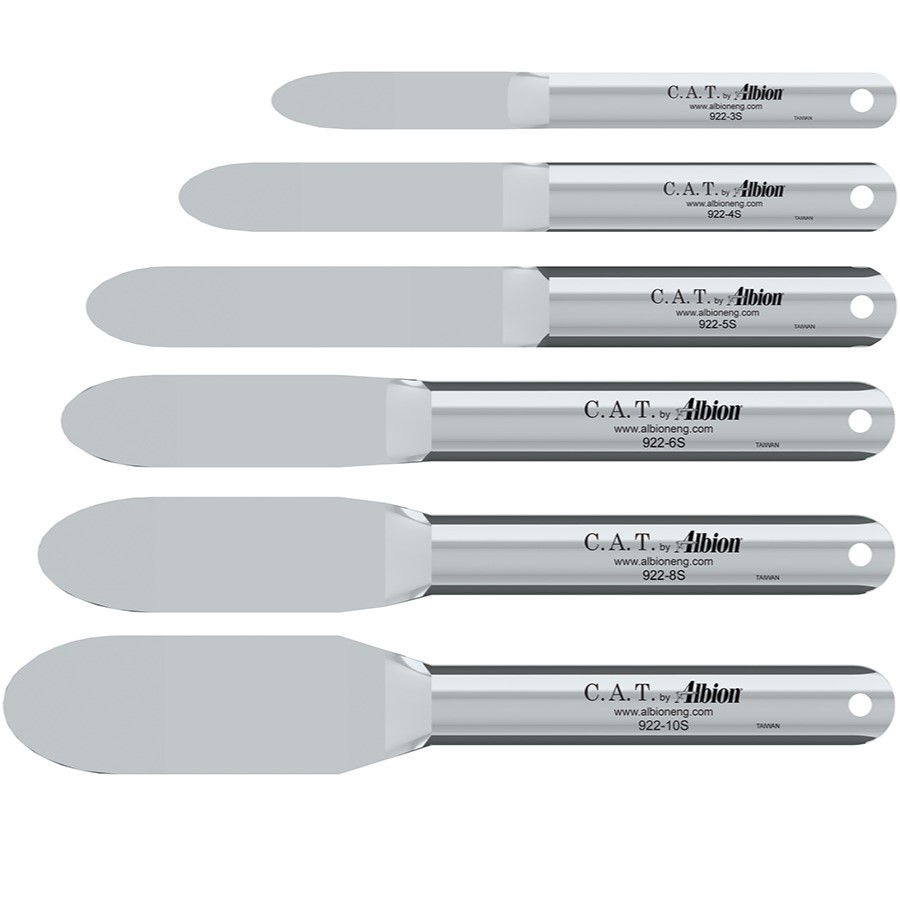

Caulk tooling spatula set built for sealant installers who need to shape a clean concave joint after gunning. The Albion 922-G01 is a six-piece stainless steel caulk tooling spatula set with elliptical spline radius tips that produce the concave, hourglass joint cross section called out by ASTM C1194 and by many sealant manufacturers as the optimum geometry for maximum joint movement capability over the building’s service life.

Caulk Tooling Spatula Set Features

• Six durable stainless steel spatulas in one shop set
• Elliptical spline radius tip for concave, hourglass joint geometry
• Joint widths included: 5/8 inch, 3/4 inch, 7/8 inch, 1 inch, 1-1/4 inch, and 1-1/2 inch
• Stainless steel construction stands up to repeated cleaning and solvent wipe
• Sized for production caulking, glazing, and structural sealant work
• Sharp consistent radius produces a repeatable joint across multiple installers

The right joint profile is doing real work in a sealant install. An hourglass cross section keeps the sealant thickness lowest at the joint edges and highest in the middle, which gives the joint room to stretch and compress through the building’s thermal cycle without overstressing the bondline at the substrate. Albion’s spline radius tooling shapes that profile in one pass and lets the installer hit a repeatable result across multiple joint widths on the same project.

Caulk Tooling Spatula Set Applications

• Architectural sealant tooling on building envelope and curtainwall joints
• Glazing bead tooling on commercial window installs
• Solid surface and stone seam tooling where a controlled radius is needed
• Industrial sealant tooling on equipment panels and seams
• Production caulking where a single tool needs to cover several joint widths
• Punch list and repair caulking on commercial construction sites

See our dispensers, mixers, and nozzles category for matching caulk guns, sausage packs, and dispensing accessories. For manufacturer detail visit Albion Engineering.

For help matching tooling width to your sealant joint design call (800) 220-1966 or email [email protected].
