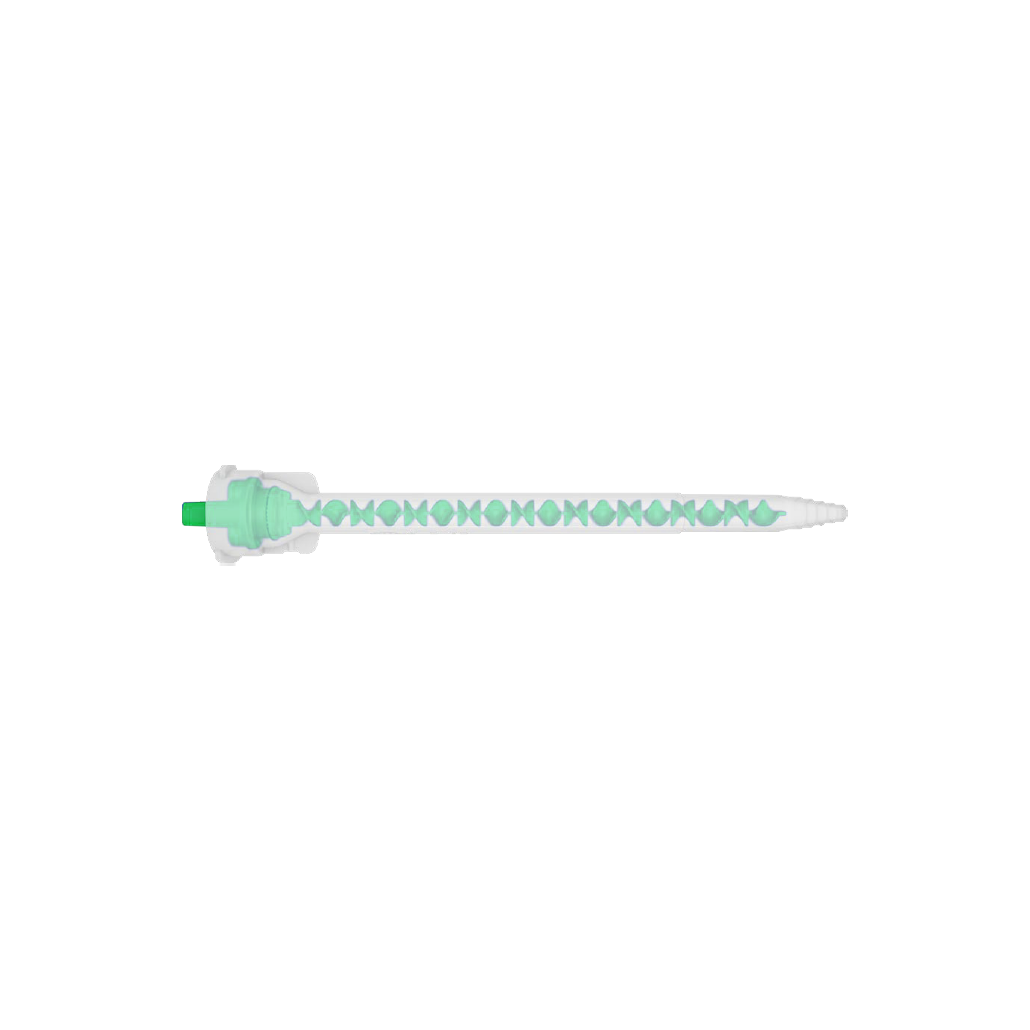

Ritter Helix ACF 08-18 1:1/2:1 Static Mixer

Description

The Ritter Helix Static Mixer 08-18 (part 13300-2001) delivers homogeneous two-component output from Ritter ACF 200 ml and 400 ml cartridges in 1:1 and 2:1 ratios. Eighteen helical mixing elements inside an 8 mm tube give consistent A:B blending across epoxies, urethanes, methacrylates, and silicones used in structural bonding, potting, and production assembly.

### Key Features and Benefits

* 18 helical mixing elements drive thorough A:B blending in a single pass
* 8 mm internal tube diameter matches Ritter ACF cartridge outlet geometry
* Stepped design covers both 1:1 and 2:1 cartridge ratios with one part number
* 5 mm outer outlet and 2.9 mm inner outlet shape a controlled bead
* 7.3 in (186 mm) length suits parts handling and confined fixture work
* 7.5 ml retained volume keeps purge and waste low between shots
* Disposable nozzle eliminates cross-contamination between jobs

### Common Applications for Ritter Helix Static Mixer

* Structural bonding of metals, plastics, and composites in production assembly
* Potting and encapsulation of electronic modules and sensors
* Two-part epoxy and urethane dispensing in MRO and field service
* Methacrylate adhesive lay-up for marine, transportation, and signage
* Silicone gasketing where mixed pot life is short
* Composite repair, fixture bonding, and prototype assembly

### Compatible Cartridges and Materials

* Ritter ACF 200 ml cartridges, 1:1 and 2:1 ratios
* Ritter ACF 400 ml cartridges, 1:1 and 2:1 ratios
* Two-part epoxies, methacrylates, urethanes, and silicones

### Ritter Helix Static Mixer Technical Specifications

| Specification | Value |
| — | — |
| Manufacturer Reference | 13300-2001 |
| Mixer Series | Helix ACF 08-18 |
| Mixing Elements | 18 |
| Mix Ratios | 1:1 and 2:1 (stepped) |
| Total Length | 186 mm / 7.3 in |
| Outer Outlet Diameter | 5.0 mm / 0.20 in |
| Inner Outlet Diameter | 2.9 mm / 0.11 in |
| Tube Outer Diameter | 8 mm / 0.31 in |
| Retained Volume | 7.5 ml |

### Packaging and Ordering

Sold individually with case pricing on request. Pair this nozzle with the full range of [dispensing tips and static mixers](https://www.chemical-concepts.com/product-category/dispensers-mixers-nozzles/) in our catalog. Manufacturer documentation on the ACF cartridge system is available at [Ritter Cartridges](https://www.ritter-cartridges.de/en/).

### Need Help?

For ratio guidance, cross-references to other mixer brands, or volume pricing on cases, call (800) 220-1966 or email [email protected].
