Description

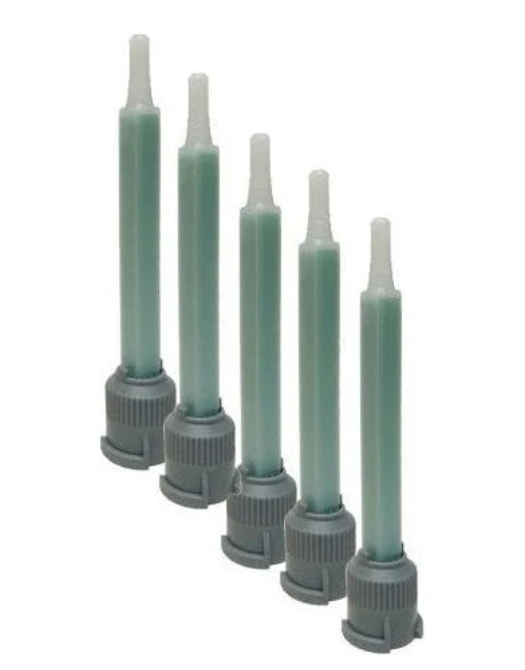

The Medmix MIXPAC MBQ 05-24L is a disposable quadro static mixer for 50ml dual cartridges using the B-System twist-and-lock connection. It runs 1:1 and 2:1 mix ratios and is a compatible replacement for the 3M EPX green mixing nozzle (3M stock numbers 62-9154-9148-4, 62-9171-9954-9, and 7100104991). The luer lock tip supports accessory tip attachment and fine bead placement where needed.
Key Product Details
| Property | Value |
|---|---|
| Manufacturer | Medmix (formerly Sulzer Mixpac) |
| Article Number | MBQ 05-24L |
| Sulzer Part Number | 114145 |
| Mixing Style | Quadro (square element) |
| Mixing Elements | 24 |
| Connection | Twist-and-lock (B-System) |
| Cartridge Compatibility | 25ml, 50ml, 75ml B-System cartridges |
| Mix Ratios | 1:1 and 2:1 |
| Inner Diameter | 5.3 mm (0.209 in) |
| Length | 122 mm (4.803 in) |
| Outlet Volume | 2.60 ml |
| Outlet Style | Luer lock |
| Color | Dust grey body, green elements |
| Pack Size | 3,000 per case |
Performance in Production
- 24 quadro mixing elements deliver thorough blending in a compact body, useful where a longer nozzle with more elements is preferred over the standard 16-element MBQ 05-16L.
- Twist-and-lock B-System connection fits the same cartridge platforms used by 3M EPX, Loctite EA, Devcon Dev-Packs, Huntsman Araldite 2000+, and other major two-part adhesive brands running B-System 50ml cartridges.
- Luer lock tip supports accessory tip attachment for fine bead placement and precision dispensing.
- Disposable construction keeps changeover fast in production, repair, and lab environments.
- Compatible with epoxies, polyurethanes, silicones, acrylics, and methacrylates at 1:1 and 2:1 ratios.
Compatible Systems and Adhesive Brands

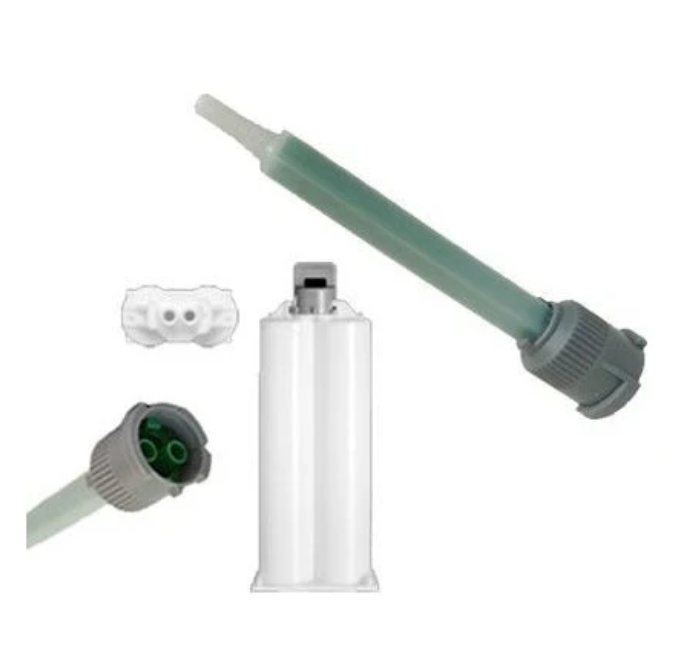

The MBQ 05-24L fits B-System 50ml dual cartridges. Compatible adhesive brands using this cartridge platform include:
- 3M Scotch-Weld EPX (gray dual cartridge with large gray screw-off cap)
- Loctite EA two-part epoxy systems
- Devcon Dev-Pack two-part adhesives
- Huntsman Araldite 2000+ series
- Permabond two-part epoxies including ET5441
- Lord two-part structural adhesives
- Other brands running B-System 50ml cartridges at 1:1 or 2:1
3M EPX Replacement Reference
Compatible replacement for:
- 3M EPX Green Mixing Nozzle, Stock No. 62-9154-9148-4 (UPC 0-76308-86434-7)
- 3M EPX Green Mixing Nozzle Bulk Pack, Stock No. 62-9171-9954-9 (UPC 0-63806-01003-1)
- 3M Stock No. 7100104991
Common Applications
- Metered dispensing of two-part adhesives from 50ml B-System dual cartridges
- Electronics and PCB assembly bonding
- Aerospace and aircraft assembly bonding
- Automotive and transportation fabrication
- Wind turbine assembly and repair
- General manufacturing and production bonding
- Lab, prototype, and repair work requiring hand dispensing
- Construction and concrete repair applications
Available Sizes or Variants
- 3,000 per case (individual nozzles)
For the 16-element version, see the MBQ 05-16L. For alternate outlet styles and element configurations, see the full dispensers, mixers, and nozzles category.
Need Help?
Call (800) 220-1966 or email [email protected] to match this mixer to a cartridge system or adhesive family.
