Medmix Mixpac MBQ QUADRO Static Mixer Nozzles for B-System Cartridges

SKU: CON-MBQ MIXER

  • Expert Support

  • 50+ Years of Experience

  • Same Day Shipping*

*On in-stock items, placed by 2pm EST

Ask An Expert

Our engineers are ready to help!

Get In Touch Now

Description

The Mixpac MBQ static mixer by medmix (formerly Sulzer Mixpac) is a disposable QUADRO mixing nozzle for dispensing two-part adhesives from B-System AB cartridges. MBQ mixers are the 1:1 and 2:1 ratio version of the B-System QUADRO line and carry a dust grey body with green elements. The 4:1 and 10:1 version is the MBQX, which uses orange elements. Two sizes are available, both in a 5.3 mm bore, differing only in element count and length.

B-System or F-System: check your cartridge first

B-System and F-System nozzles are not interchangeable. B-System covers the smaller 25 ml and 50 ml AB cartridges used for repair work, small assemblies, and sample quantities. F-System covers the larger 200 and 400 series cartridges used in production. If your cartridge holds 200 ml or more, you need an MFQ or MFQX instead.

Reading the MBQ model code

Using MBQ 05-24L as the example:

Code segment Meaning
MBQ Mixer, B-System, QUADRO design. No X means 1:1 and 2:1 with green elements. An X means 4:1 and 10:1 with orange elements.
05 Inner diameter, rounded. Actually 5.3 mm on both MBQ models.
24 Number of mixing elements
L Luer slip outlet tip. Both MBQ models use it.

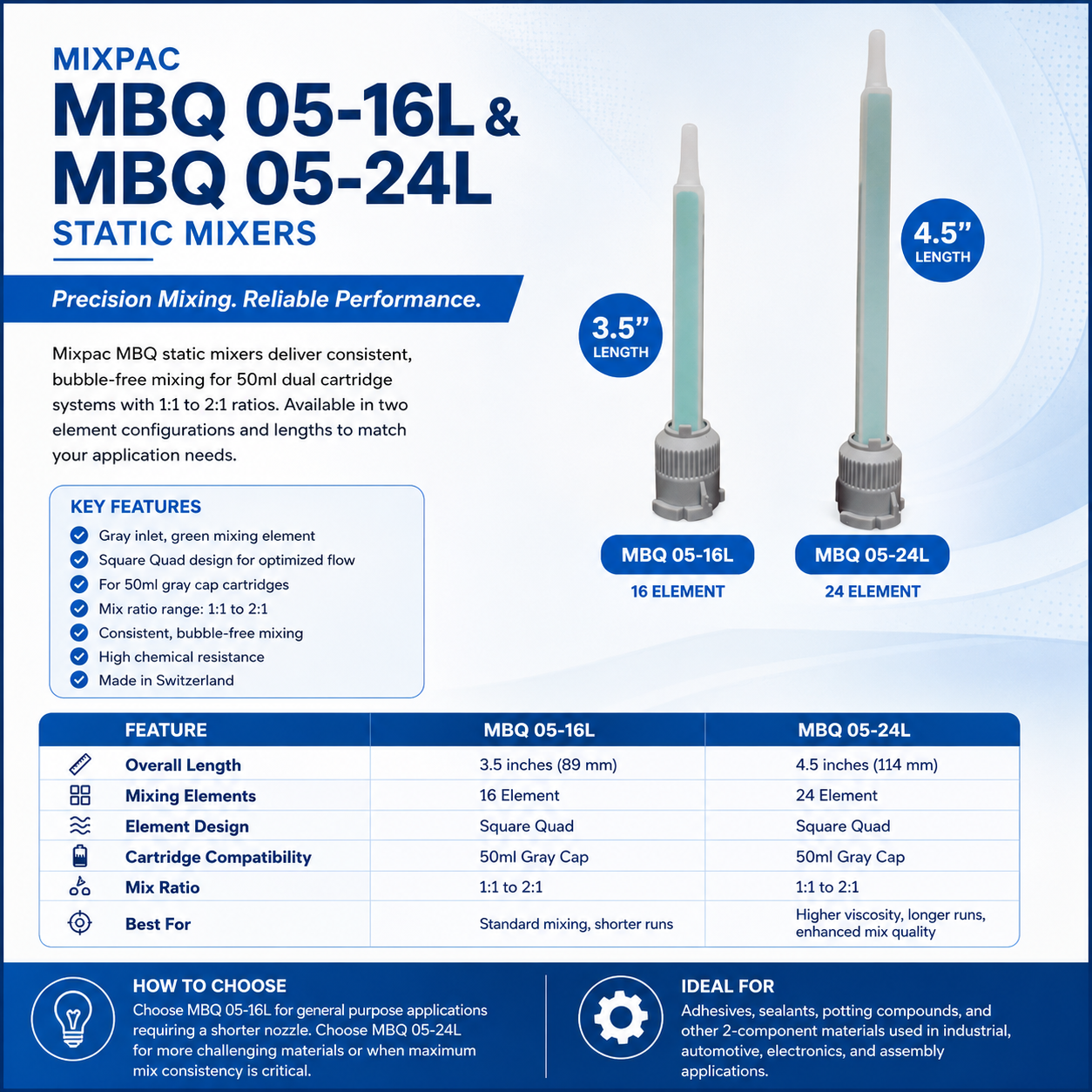

Mixpac MBQ size chart

Model Mfr part no. Elements Inner diameter Length Retained volume Tip
MBQ 05-16L 114144 16 5.3 mm (0.21 in) 90.7 mm (3.57 in) 1.88 ml Luer slip
MBQ 05-24L 114145 24 5.3 mm (0.21 in) 122.0 mm (4.80 in) 2.60 ml Luer slip

Both MBQ models use a dust grey body with green QUADRO elements. Click either model for full specifications.

Choosing between the two

Both MBQ nozzles share the same 5.3 mm bore and the same luer slip tip, so bead size, flow rate, and fitment are identical. The only difference is element count and the length that comes with it.

  • 16 elements, 90.7 mm. Shorter nozzle, less resistance at the gun, and less material left in the nozzle at changeover. The starting point for materials that blend without much shear.
  • 24 elements, 122.0 mm. Eight more mixing passes for materials that streak or cure unevenly at 16. The cost is 31 mm more nozzle, more back pressure, and 0.72 ml more material retained.
  • Retained volume matters more at this scale. On a 50 ml cartridge, 1.88 ml to 2.60 ml stays in the nozzle at every changeover. Worth factoring in if you swap nozzles often or dispense in small shots.
  • Start at 16 and step up if the bead needs it. If the mixed material looks uniform at 16 elements, the shorter nozzle is the cheaper and lower waste option.

Compatible B-System cartridges

Cartridge system Volume Ratio Mixpac article
B-System 25 Industrial 25 ml 1:1 AB 025-01 series
B-System 50 Industrial 50 ml 1:1 AB 050-01 series
B-System 50 Industrial 50 ml 2:1 AB 050-02 series

Running a 4:1 or 10:1 B-System cartridge instead? Use the MBQX series with orange elements. The ratios do not interchange.

MBQ compared to the other B-System mixers

The B-System line uses element color to signal mix ratio. Green means 1:1 and 2:1. Orange means 4:1 and 10:1.

Series Mix ratios Element design Models
MBQ (this page) 1:1 and 2:1 QUADRO, green elements in a dust grey body 05-16L, 05-24L
MBQX 4:1 and 10:1 QUADRO, orange elements in a dust grey body 05-16L, 05-24L
MBHX 4:1 and 10:1 Helix See that page

Performance in production

  • Square QUADRO element geometry divides and recombines the A and B sides through a square flow path rather than a helical one.
  • B-System twist and lock connection mounts directly to the AB cartridge with no converter and no tools.
  • Disposable construction avoids purging and cleanup between adhesive batches.
  • Dust grey body with green elements makes the 1:1 and 2:1 version easy to tell apart from the orange element MBQX at the bench.
  • Luer slip tip mates with syringe fittings, valves, and small dispensing accessories.
  • Both models share the same 5.3 mm bore, so switching element count changes mixing and length without changing bead size.

Common applications

  • Small-batch and repair bonding from 25 ml and 50 ml cartridges
  • Electronics and small component assembly where a fine bead is needed
  • Sample and trial dispensing before committing to a production cartridge size
  • Field service and maintenance work with portable cartridge guns
  • Metered dispensing through syringe fittings or valves using the luer slip tip
  • Dispensing epoxy, polyurethane, silicone, acrylic, and MMA two-part adhesives and sealants

Specifications

Property Value
Mixer type Static QUADRO, disposable
Cartridge family Mixpac B-System AB cartridges, 25 ml and 50 ml
Mix ratios 1:1 and 2:1
Element color Green elements, dust grey body
Inner diameter 5.3 mm (0.21 in), both models
Element counts 16, 24
Length range 90.7 mm to 122.0 mm (3.57 in to 4.80 in)
Outlet tip Luer slip
Connection B-System twist and lock, mounts directly to cartridge
Chemistries Epoxy, polyurethane, silicone, acrylic, MMA

Ordering

Both MBQ sizes are stocked and sold individually, so you can order one to test a material or a case quantity for a production run. Pair them with matching B-System cartridges and dispensing guns from the dispensers, mixers, and nozzles category.

Frequently asked questions

What cartridges does an MBQ static mixer fit?

Mixpac B-System AB cartridges in 25 ml and 50 ml sizes, in 1:1 and 2:1 ratios. B-System nozzles do not fit F-System 200 or 400 series cartridges, which use the MFQ or MFQX instead.

What is the difference between MBQ and MBQX mixers?

Element color. MBQ has green elements and is built for 1:1 and 2:1 cartridges. MBQX has orange elements and is built for 4:1 and 10:1. Both use the same dust grey body, the same 5.3 mm bore, and the same lengths, but the ratios do not interchange. Check the element color against the ratio printed on your cartridge.

Should I use the MBQ 05-16L or the 05-24L?

Start with the 05-16L. Both have the same bore and the same tip, so the only difference is 16 versus 24 mixing elements. If the mixed bead shows streaking, color variation, or uneven cure at 16, step up to the 05-24L. The 24 element version is 31 mm longer and retains 0.72 ml more material.

What does MBQ 05-24L mean?

MBQ is mixer, B-System, QUADRO design, with no X meaning the 1:1 and 2:1 version. The 05 is the inner diameter rounded down, actually 5.3 mm. The 24 is the number of mixing elements. The L is the luer slip outlet tip.

Can I buy a single MBQ nozzle?

Yes. Both sizes are stocked and sold individually, so you can order one to check fit or test a material before buying a larger quantity.

How much adhesive stays in an MBQ nozzle?

1.88 ml on the 05-16L and 2.60 ml on the 05-24L. On a 25 ml or 50 ml cartridge that is a meaningful share of the pack, so it is worth factoring in if you change nozzles between shots rather than running a cartridge through on one nozzle.

Does an MBQ mixer need a converter or retaining nut?

No. The MBQ mounts directly to the B-System cartridge with a twist and lock connection. No converter, no retaining nut, no tools.

Need help?

Need help matching a nozzle to your cartridge and adhesive chemistry? Call (800) 220-1966 or email [email protected].
